Rugged Ridge Cold Air Intake Kit, 3.6L, 12-14 Jeep Wrangler User Manual
Page 2
Page 2 of 3
4. Carefully remove temperature sensor from original intake pipe. Take care not to break the plastic
sensor. Install rubber grommet into aluminum air tube. Install temperature sensor into grommet as
shown. A small amount of grease or oil can be used to help install sensor. Clean as needed.
5. Install rubber isolator mount to heat shield. Insert tube and coupling onto throttle body and secure with
large 2.5" hose clamp ( Do not tighten at this time). Connect wire lead back to temperature sensor.
Line heat shield filter opening with rubber trim.
3. Set new heat shield on top of spacers and install M6 bolts and washers from below. Access can be
gained by pulling inner fender liner to the side and inserting bolts and washers from inside fender well.
With M6 hardware installed tighten heat shield to vehicle. Secure heat shield to radiator shroud.
Install bolts from below
Place heat shield over spacers
Tighten all heat shield bolts
Install coupling to air tube

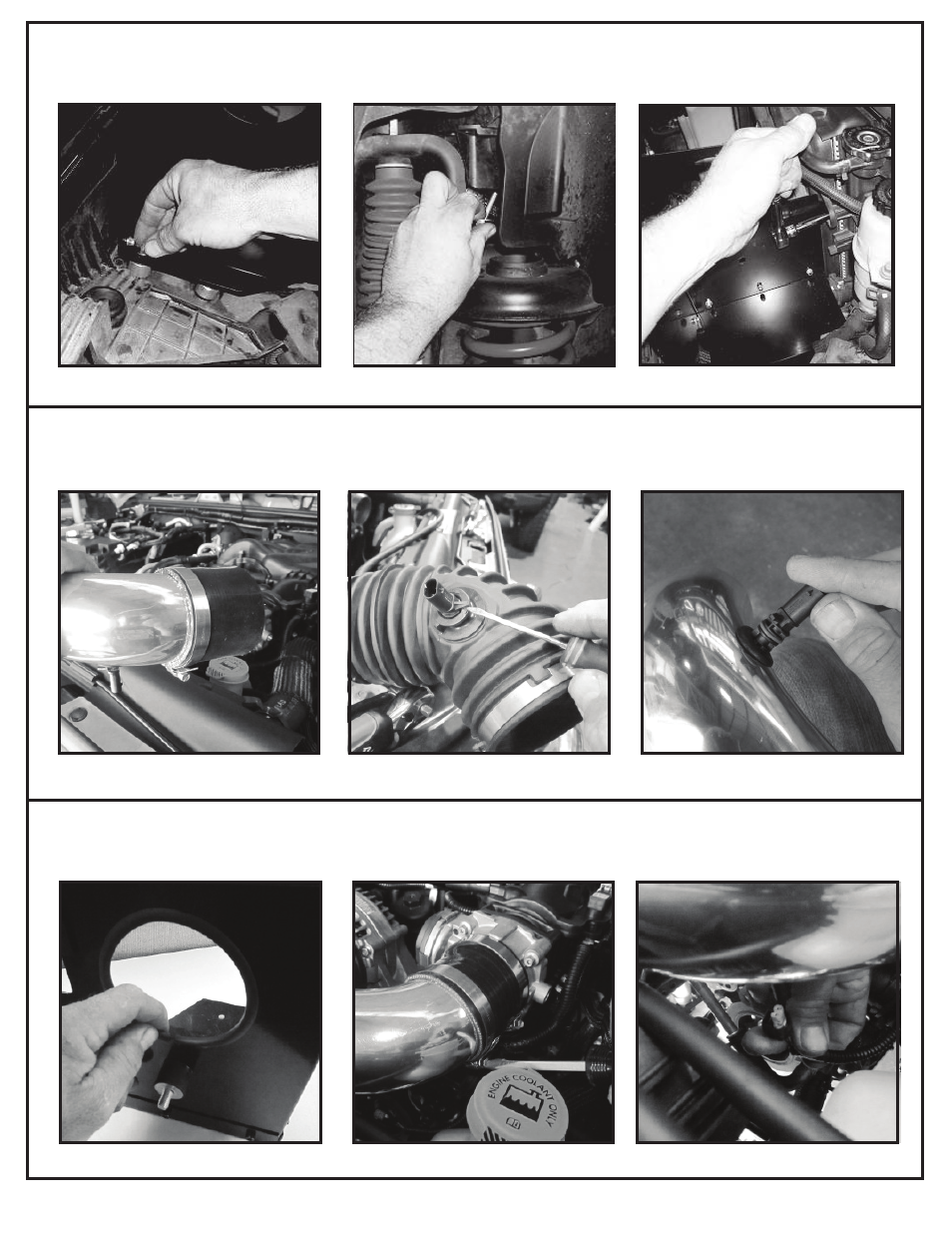

Remove temp sensor
Install sensor into new tube
Connect sensor wire lead
Attach tube to throttle body
Install isolator and trim to shield
