4. Carefully remove temperature sensor from original intake pipe. Take care not to break the plastic
sensor. sensor may need to be cut out of stock rubber intake tube. Insert rubber grommet into new
tube and then install temperature sensor into grommet as shown.
5. Install rubber isolator mount to heat shield. Insert tube into throttle body coupling and secure with
large 2.5" hose clamp. Connect wire lead back to tempreture sensor. Line heat shield filter opening
with rubber trim.
3. Set new heat shield on top of spacers and install M6 bolts and washers from below. Access can be
gained by pulling inner fender liner to the side and inserting bolts and washers from inside fender well.
With M6 hardware installed tighten heat shield to vehicle. Secure heat shield to radiator shroud.

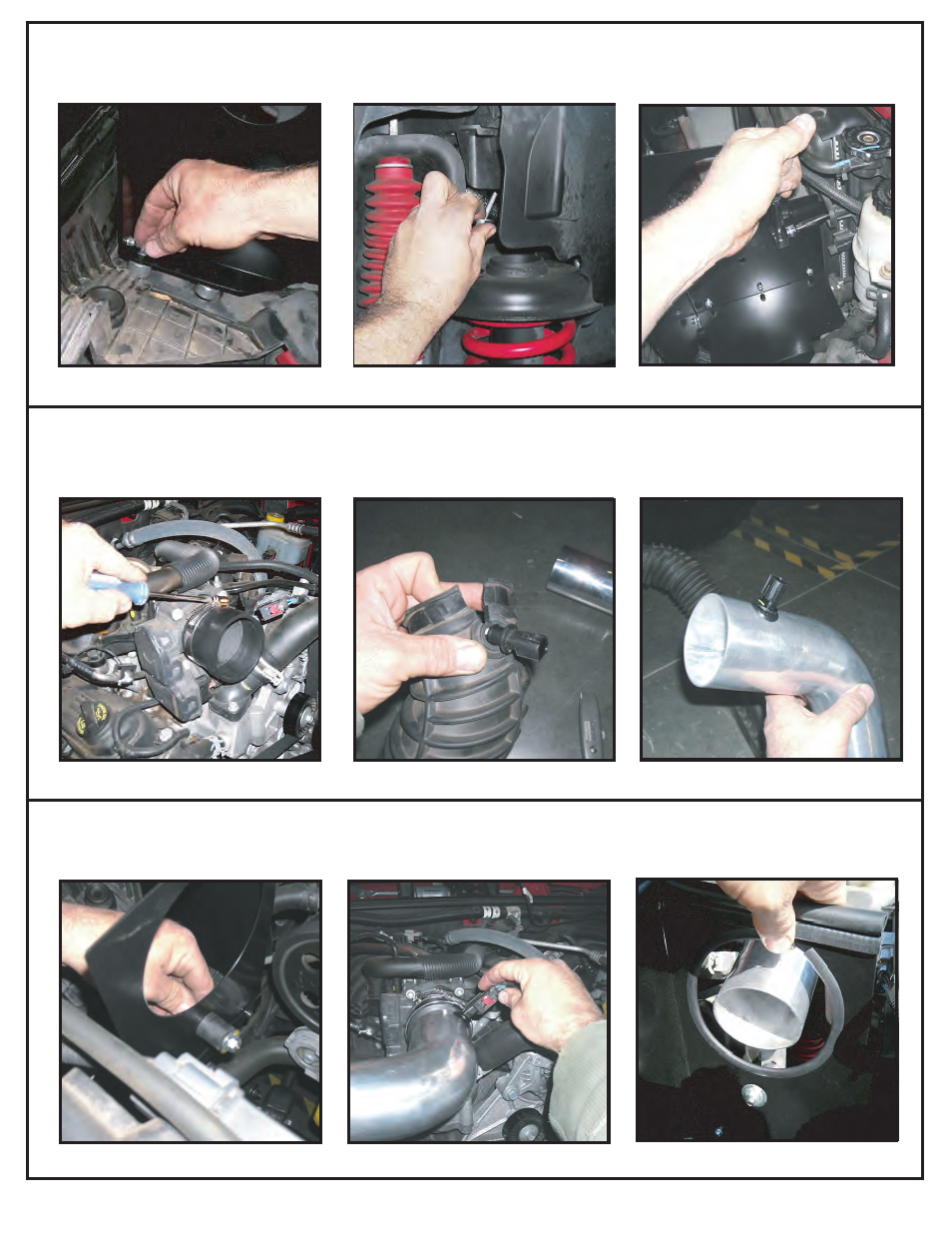

Install bolts from below
Place heat shield over spacers
Tighten all heat shield bolts
Install throttle body coupling
Remove temp sensor
Install sensor into new tube
Trim secured to filter opening
Lead connected to temp sensor
Isolator attached to heat shield
