Rugged Ridge Cold Air Intake Kit, 4.0L, 97-06 Jeep Wrangler (TJ) User Manual
Page 3
Page 3 of 4

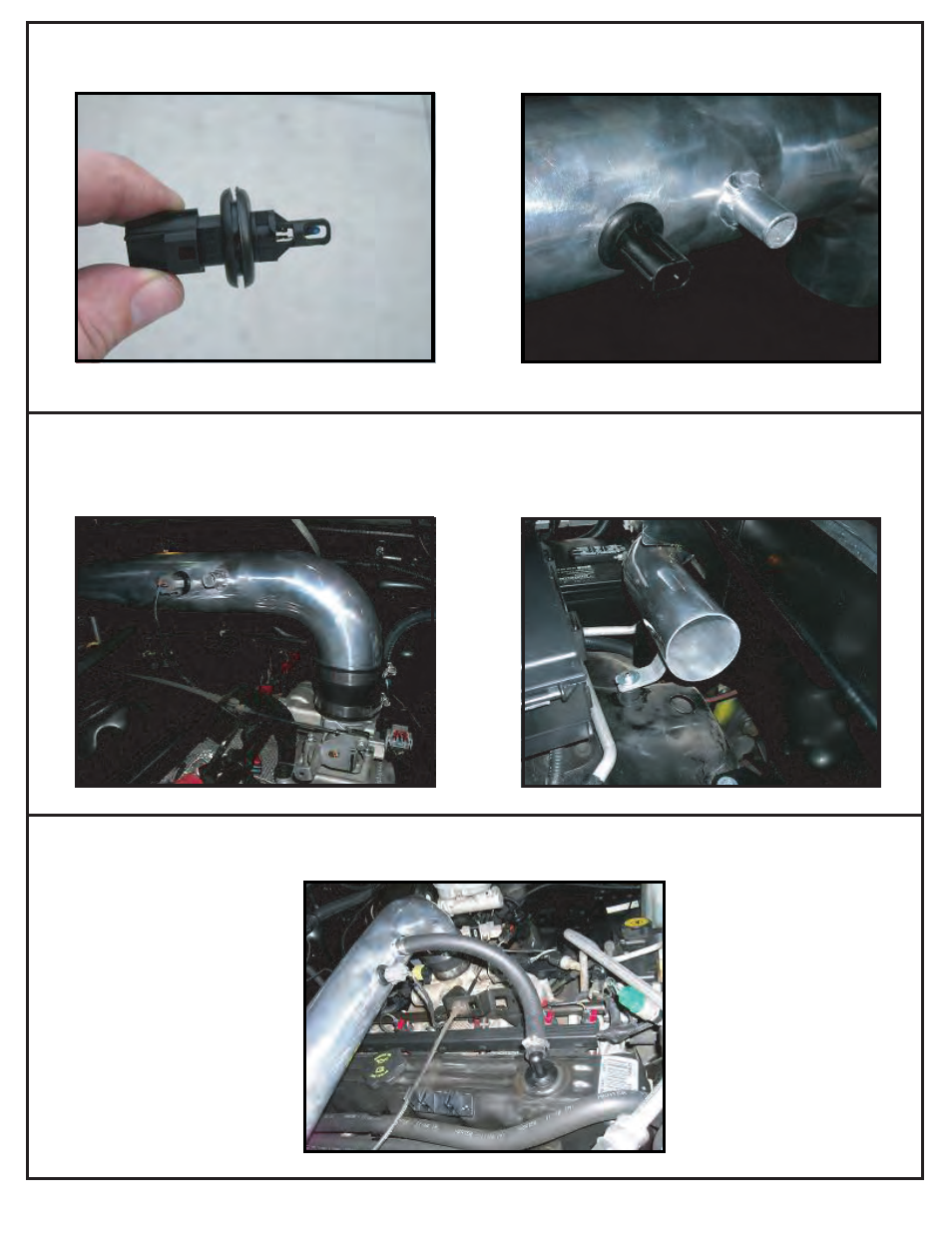

7. Remove O-Ring from Intake Temperature Sensor. Install the Sensor into the Grommet as shown,
and then install both into the Intake Tube.
8. Install Throttle Body Coupling onto the Throttle Body using a Large Hose Clamp. Install Intake Tube
into vehicle, routing it into the area seperated by the Heat Shield. Use a Large Hose Clamp to attach
the Intake Tube to the Throttle Body Coupling. Hook up Intake Temperature Sensor plug. Fasten the
open end of the Intake Tube to the Rubber Isolator Mount using an M6 Flat Washer and M6 Nut.
9. Using supplied Breather Hose and Small Hose Clamps, hook the breather up to the open port on the
Intake Tube.
Sensor Installed in Grommet
Sensor and Grommet installed in Intake Tube
