Rugged Ridge Cold Air Intake Kit, 4.0L, 97-06 Jeep Wrangler (TJ) User Manual
Page 2
Page 2 of 4

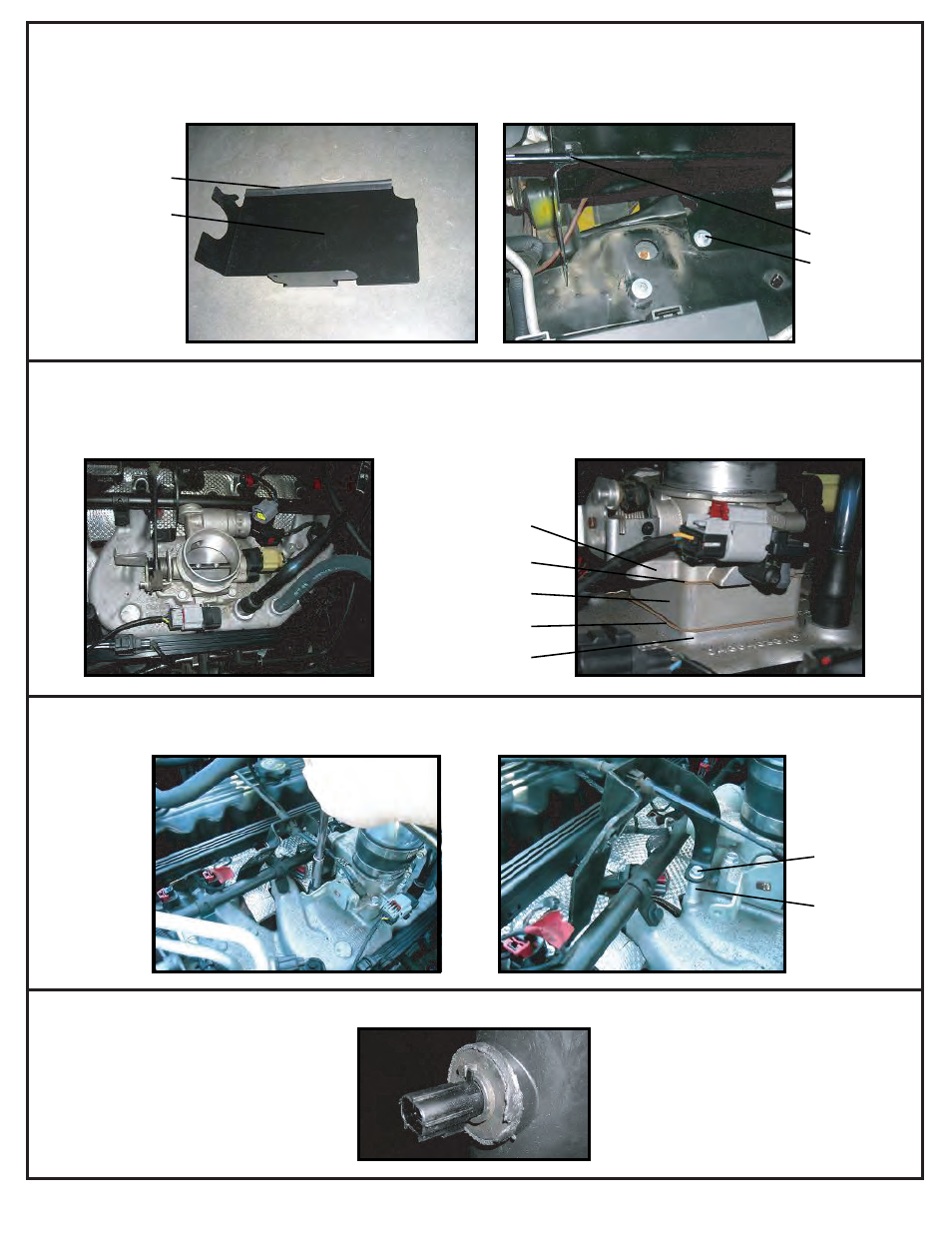

4. Remove 4 bolts that fasten the throttle body to the intake manifold. Lift throttle body and remove
gasket. Install Throttle Body Spacer in between throttle body and intake manifold, using supplied
longer bolts. Install supplied gaskets between intake manifold and throttle body spacer, and between
throttle body spacer and throttle body.
5. Remove 2 bolts that hold the throttle cable bracket to the intake manifold. Use supplied M6 Throttle
Linkage Bolts and Throttle Linkage Spacers to space throttle cable bracket up.
3. Install Weather Stripping on Heat Shield, and install Heat Shield into vehicle. The front of the Heat
Shield is secured with one of the factory radiator mounting bolts. The bottom of the Heat Shield is
secured with the M8 Bolt, Washers, and Nut through a hole left by the removal of the factory air box.
The rear of the Heat Shield is secured to the Spreaded Bar with a Zip Tie.
6. Remove the Intake Temperature Sensor from the original Intake Pipe. Pry the tab up, then twist to
remove.
Throttle Body
Gasket
Spacer
Gasket
Intake Manifold
Weather Stripping
Heat Shield
Longer Bolt
Spacer
Zip Tie
M8 Hardware
