Rugged Ridge Rock Crawler Rear Bumper, 2-Inch Hitch, 87-06 Jeep Wrangler User Manual
Page 2
.
Loosely attach to one side of vehicle with hardware listed in this step. (See Fig.3)
(Step 3): Repeat step two for opposite side, loosely attach bolts but do not tighten at this time.
NOTE: Lower mounting brackets (one per side) should align with existing lower
Cross member holes.

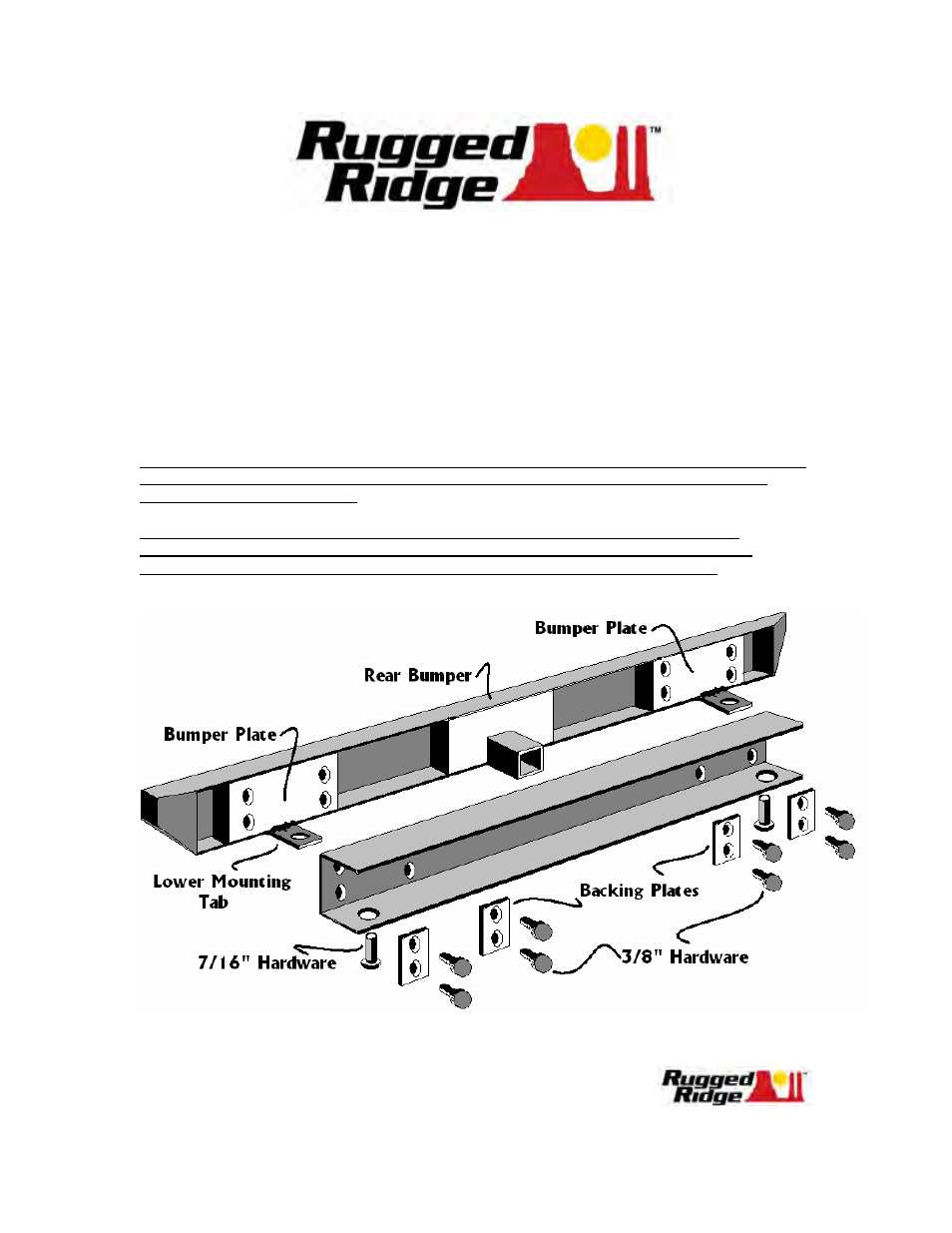

(Step 4): Locate (1) 7/16” Hex head bolt, (1) 7/16” Flat washer, and (1) Lock washer. Attach and
Secure bottom bracket to cross member with hardware listed in this step.
(Step 5): Repeat step 4 for opposite side. At this time align bumper correctly and tighten all mounting
hardware. NOTE: It is important to periodically check all bolts for tightness.
ON SOME TJ MODELS DROPPING OF THE FUEL TANK – GUARD/ SKIDPLATE WILL EASE
INSTALLATION OF BRACKETS. BE SURE TO FOLLOW FACTORY DIRECTIONS FOR
DROPPING THE FUEL TANK.
Note: Please take care when assembling and installing this product to protect the finish and your
investment. To protect the bumpers finish wax after installation. Regular waxing is recommended.
DO NOT use any type of cleaner or wax that contains abrasives that could damage the finish
Fig. 3
