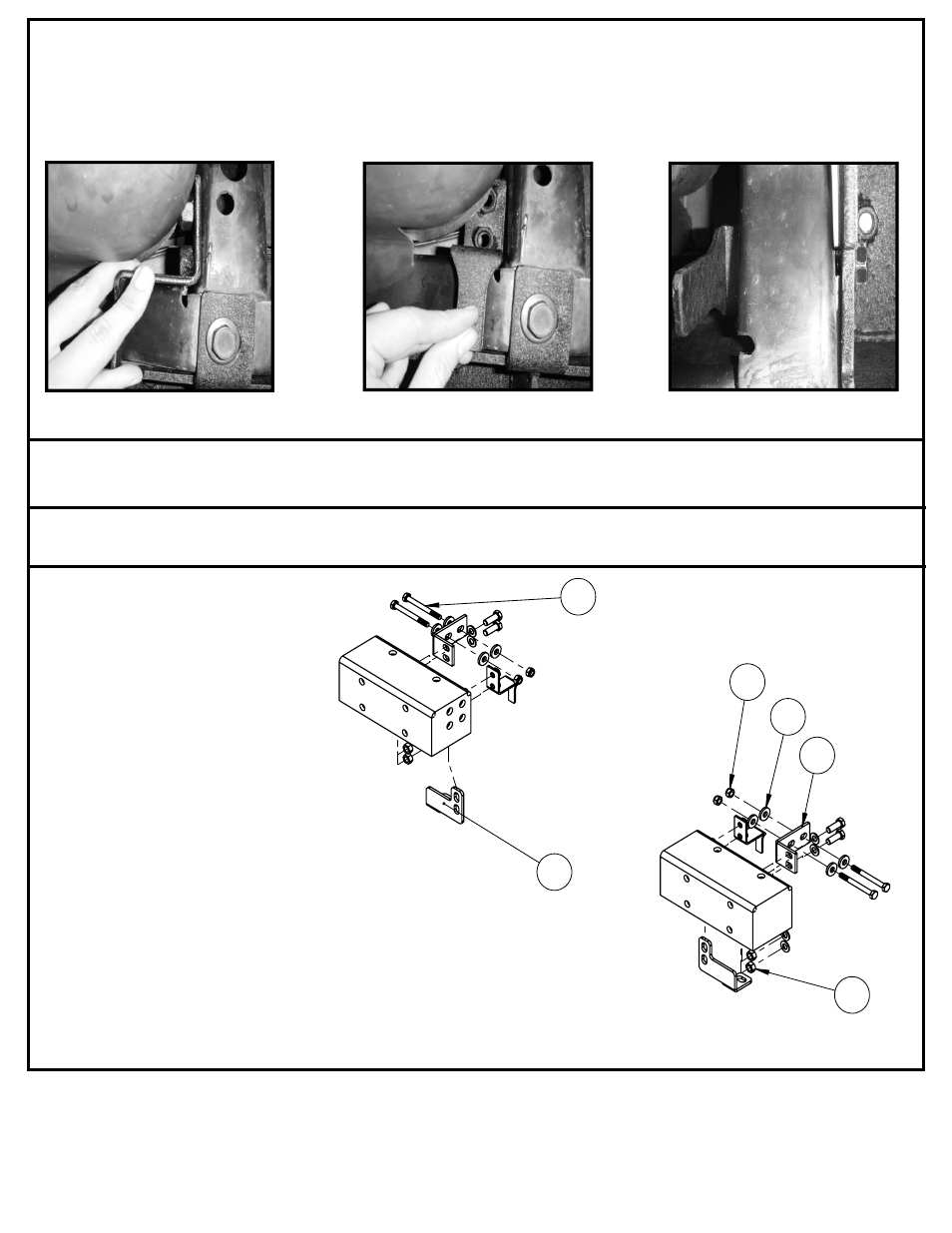

5. Repeat the procedures from steps 2-4 for the passenger side of the vehicle. If installing bumper on a YJ or
TJ please proceed to page 5, step 12 to complete the installation of your rear XHD Bumper.
4. From under the vehicle, align the nut plate as shown in Figure 6. Rotate the nut plate to the right
(Figure 7) and place in the channel on the backside of the crossmember. Line up the nut plate holes with the
crossmember and sub-frame. Attach nut plate using the supplied M12 x 35 bolts and washers from inside of the
sub-frame (Figure 8). Do not tighten the bolts at this time.
Figure 6. Figure 7. Figure 8.
Quantity:
4
4
8
2
4
2
Contents:
1. M10 x 100 HHCS
2. M10 Nyloc Nut
3. M10 Thick Washer
4. CJ Side-Frame Bracket
5. M12 Nut
6. CJ Lower Frame Bracket
Note: The labeled harware is
applicable to CJ only.
6
1
4
2
3
5
CJ Instruction for 1976-2006 XHD Bumper
