Asoka Pluglink PL9950-BBR - Manual (Page 27)

Asoka® User’s Guide
PlugLink 9950 Cable/ DSL Router PL9950-BBR
Page 27 of 43

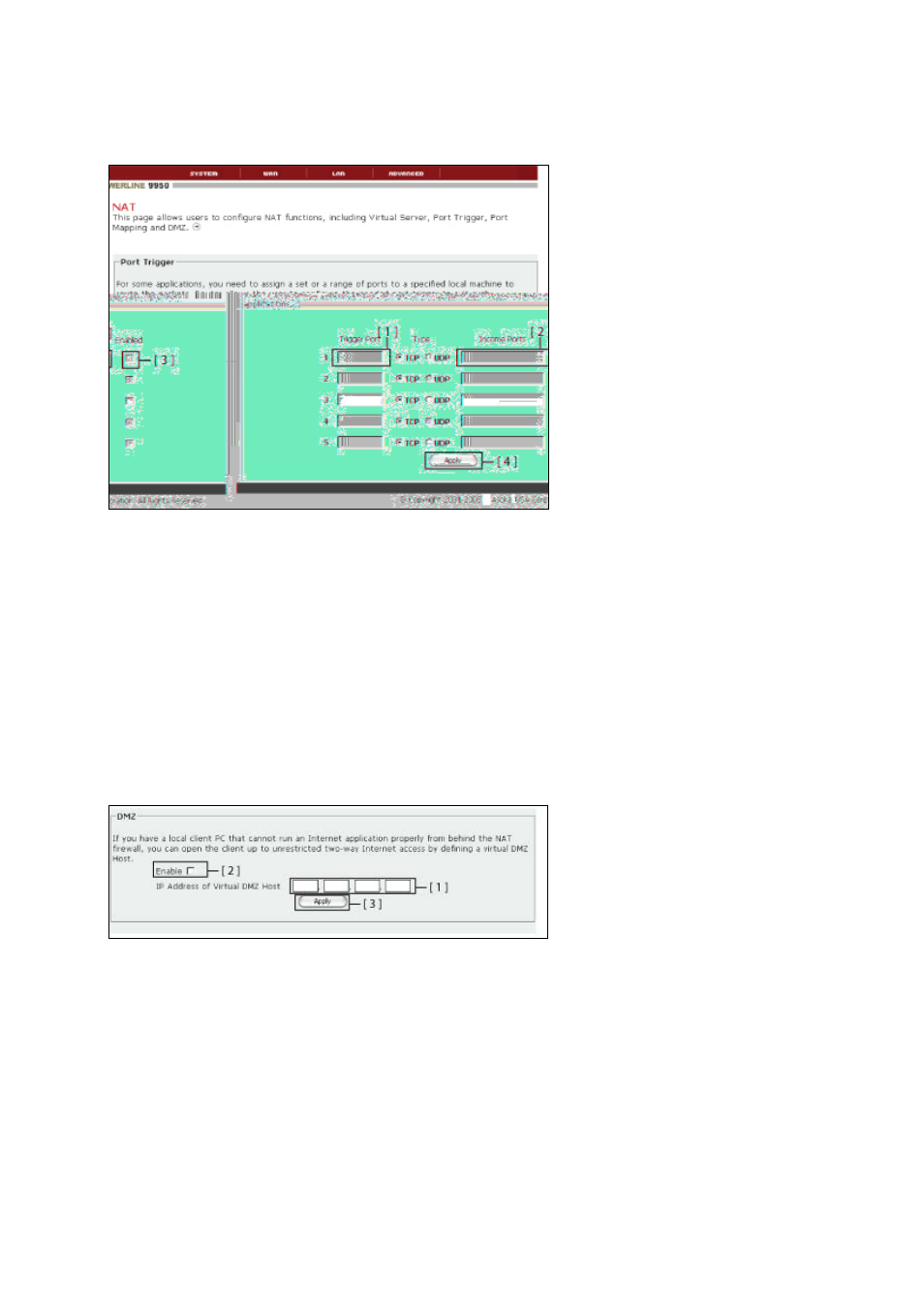

Figure 10-8: Port Triggering Settings Page
Enabling the Demilitarized Zone (DMZ)
The DMZ feature allows you to specify one computer on your network to be placed outside the
firewall. This may be necessary if the firewall is causing problems with an application such as a
game or video conferencing application. Use this feature on a temporary basis. The computer in
the DMZ is NOT protected from hacker attacks.
To put a computer in the DMZ, click on DMZ under NAT in the Sub Menu.
1. Enter the IP address in the IP field
2. Check the box next to Enable
3. Click Apply
Figure 10-9: DMZ Settings Page
Configuring Static/ Dynamic Routing
The PL9950-BBR allows you to set the static routing function and dynamic routing feature.
Static routing function determines the path that data follows over the network before and after
it passes through the router. You can use static routing to allow different IP domain users to
access the Internet through this device.
