i
nstRuCtions
f
oR
C
ontRoL
p
aneL
R
emote
i
nstaLLation

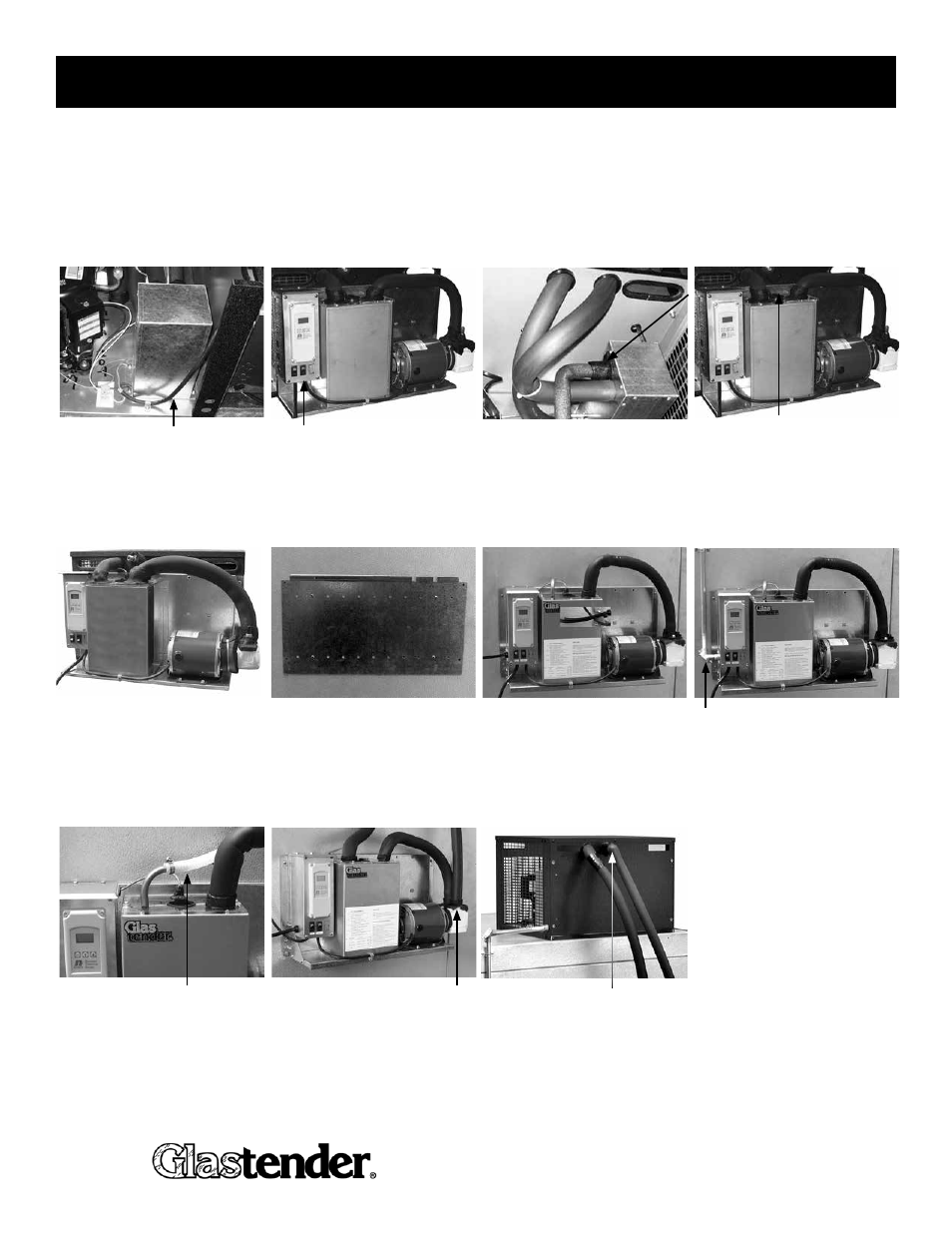

The Glastender exclusive, patent pending beer line chiller design houses the heat exchanger inside the condensing unit
compartment. For models BLC-1/3, BLC-1/3-2, BLC1/2, BLC-1/2-2, BLC-3/4, and BLC-3/4-2, this unique feature allows
the control panel with glycol bath and recirculating pump(s) to be easily installed separately from the condensing unit in a
more conveniently accessible location.
Install and insulate glycol line
from heat exchanger to bath
Disconnect glycol line from
heat exchanger.
Remove cabinet top and vented
side to get at the power cord.
Disconnect 33" power cord.
Install power line between
condensing unit and control
panel.
Remove control panel installed
with four screws from cabi-
net. NOTE: Wall rack will be
found behind control panel.
Disconnect glycol line from
bath.
Remove control cover to get
at the power cord. Disconnect
33" power cord.
Mount wall rack for control
panel at new site.
Clip control panel onto wall
mounting plate. Secure against
wall through four corner holes.
Connect glycol recirculating
line from beer line set to the
return 3/8" barb fitting.
Connect glycol recirculating
line from pump outlet 3/8"
barb fitting to the beer line set.
