228A
134
370D
423
370C

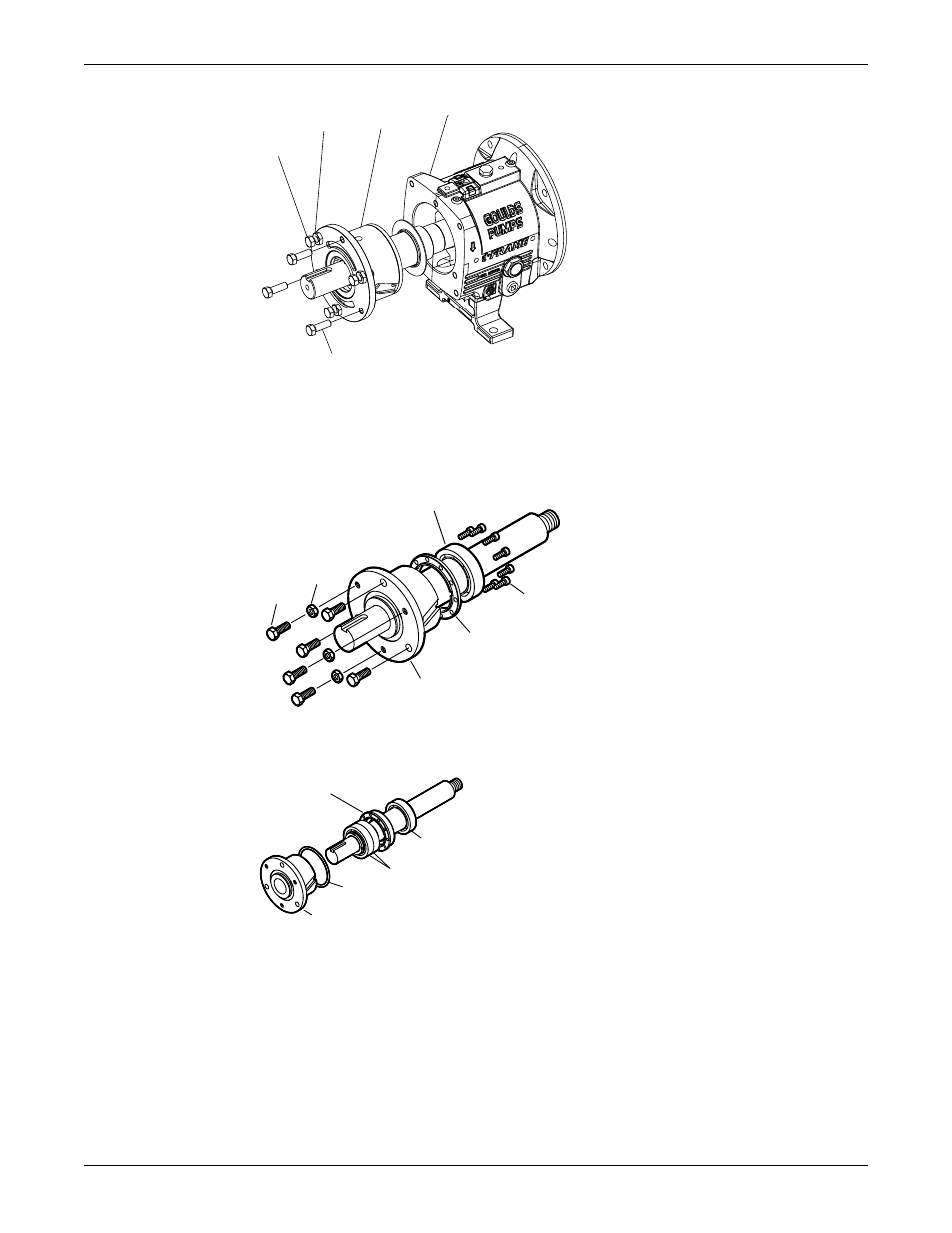

4. Remove the jack screws (370D) with the nuts (423).
5. Remove the clamp-ring screws (236A) and separate the clamp ring (253B) from the bearing housing
(134).
You must remove the bearings before you can remove the clamp ring from the shaft.
112A
236A
253B
423
370D
134
6. Remove the bearing housing (134) and the bearings (112A and 168A) from the shaft (122).
253B
168A
112A
496
134
7. Remove the bearing housing O-ring (496) and the inboard bearing (168A).
