2. Does your pump use a C-face adapter?

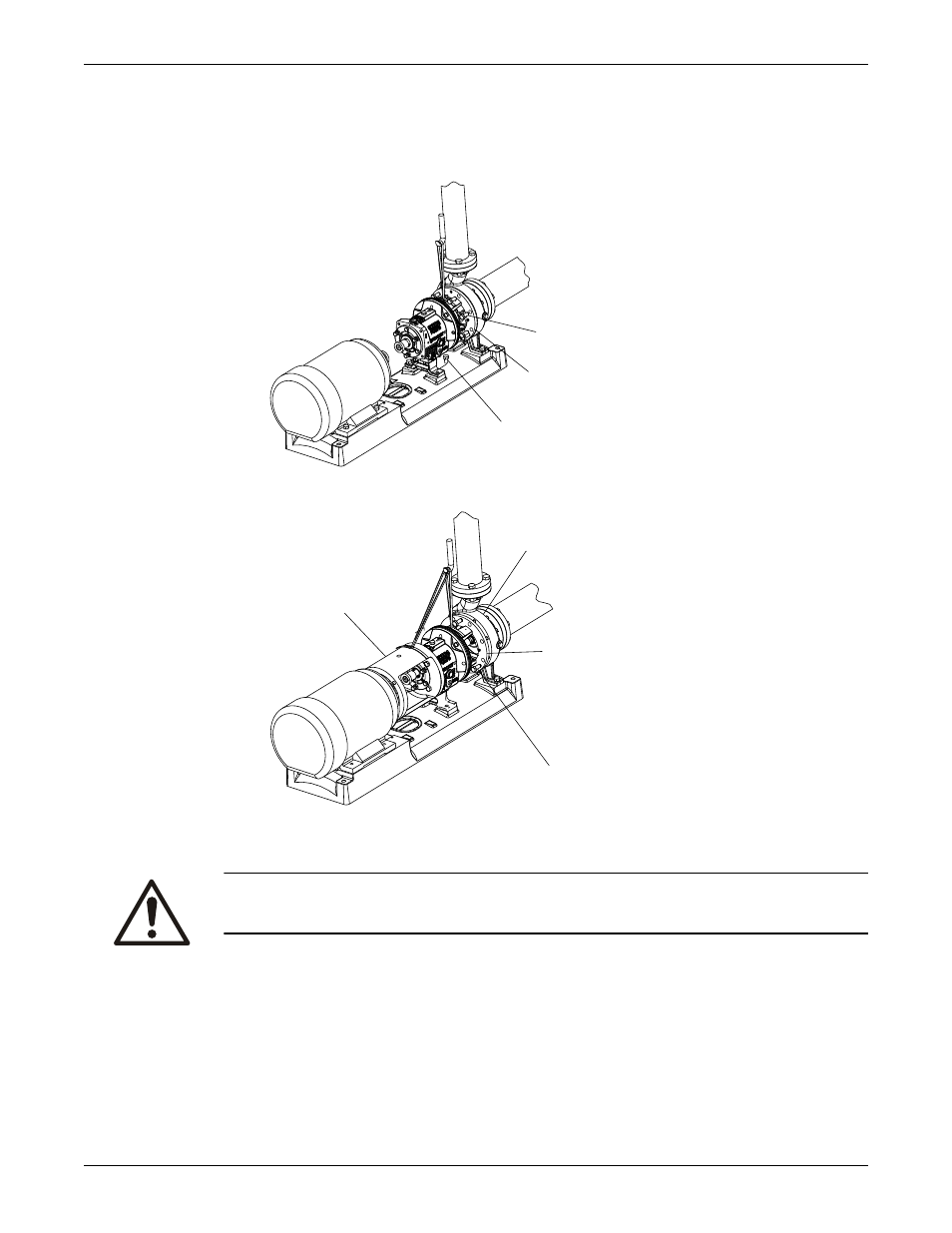

• If Yes: Place one sling from the hoist through the frame adapter (108) or frame (228A) for the STi

and a second sling from the hoist through the C-face adapter.

• If No: Place a sling from the hoist through the frame adapter (108) or the frame (228A) for the

STi.

370F

370

108

418

351

340

100

3. Remove the hold-down bolts of the bearing frame foot.
4. Remove the casing bolts.

WARNING:

• Never use heat to disassemble the pump due to the risk of an explosion from trapped liquid.

5. Tighten the jackscrews evenly, using an alternating pattern, in order to remove the back pull-out

assembly.
You can use penetrating oil if the adapter to the casing joint is corroded.

6. Remove the back pull-out assembly from the casing (100).
7. Remove and discard the casing gasket.

You will insert a new casing gasket during reassembly.

8. Remove the jackscrews.
9. Clean all gasket surfaces.
