Assembly

Since 1853

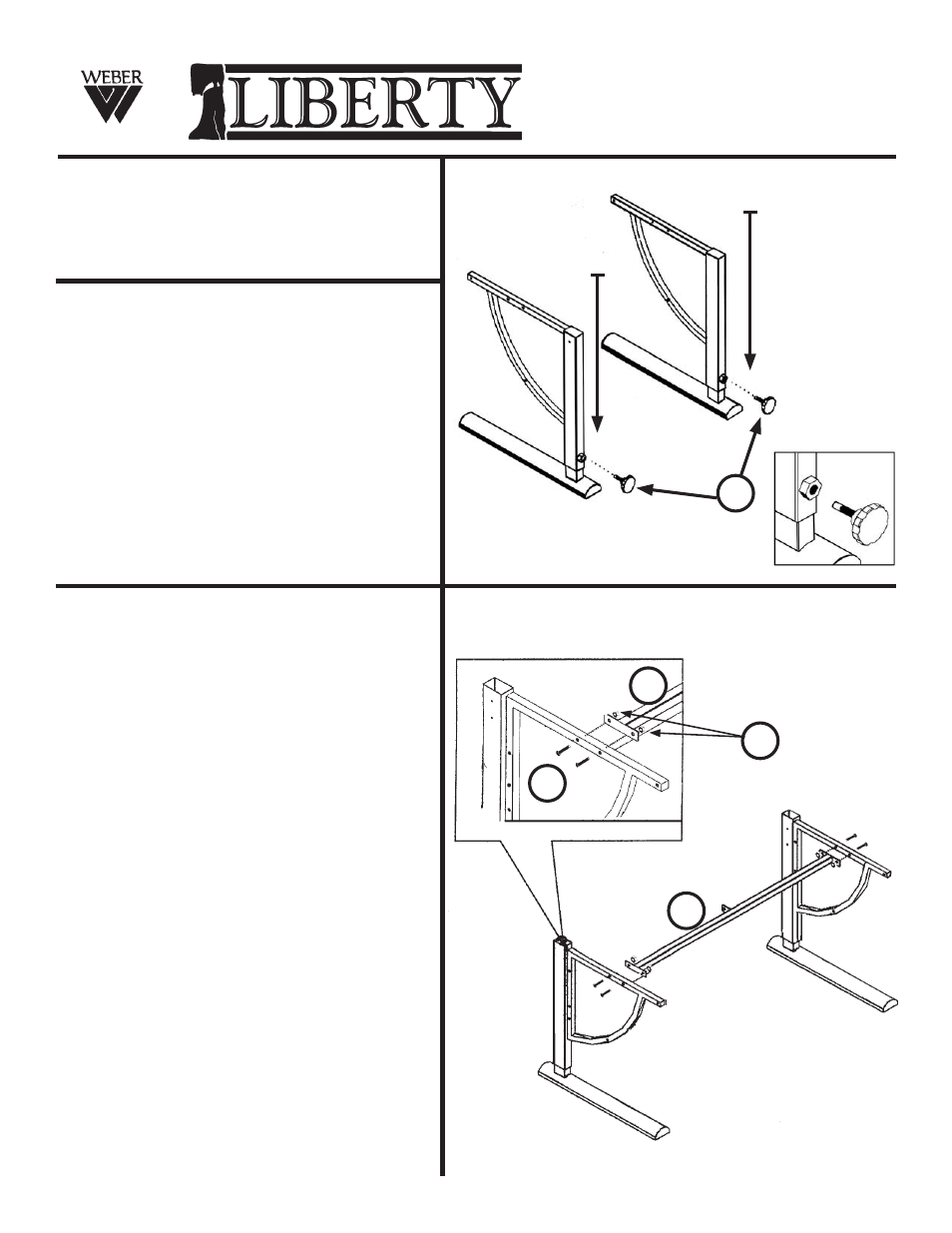

STEP 1

Begin assembly of Liberty table by taking
each base (part 1) and slide parts 2 & 3 over
the upright column of part 1. Secure with
one knob by tightening clockwise to each
assembled base leg (part J). See Fig 1

Part 3

Part 2

FIG 1

Zoom of

Knob

attachment

STEP 2

Continue by attaching the top support
(part 4) to the [2] base leg assemblies. Have
one person hold one end of Part 4 while the
other person attaches Part 4 part to the base
legs.

Using 2 ea. part E bolts, insert these into the
2 holes found on the top edge of parts 2 &3
and into the 2 holes on the ends of part 4.
Secure and tighten with 2 ea. Nuts (part H).
See FIG 2.
Repeat with other side

FIG 2

Zoom of Part 4
attachment

NOTE:

We reccommend the

The Assembly of this table to be

performed with two adult people.

August 08, RPI
