Martin Universal Design U-7100 Avanti Designer Table - Manual (Page 2)

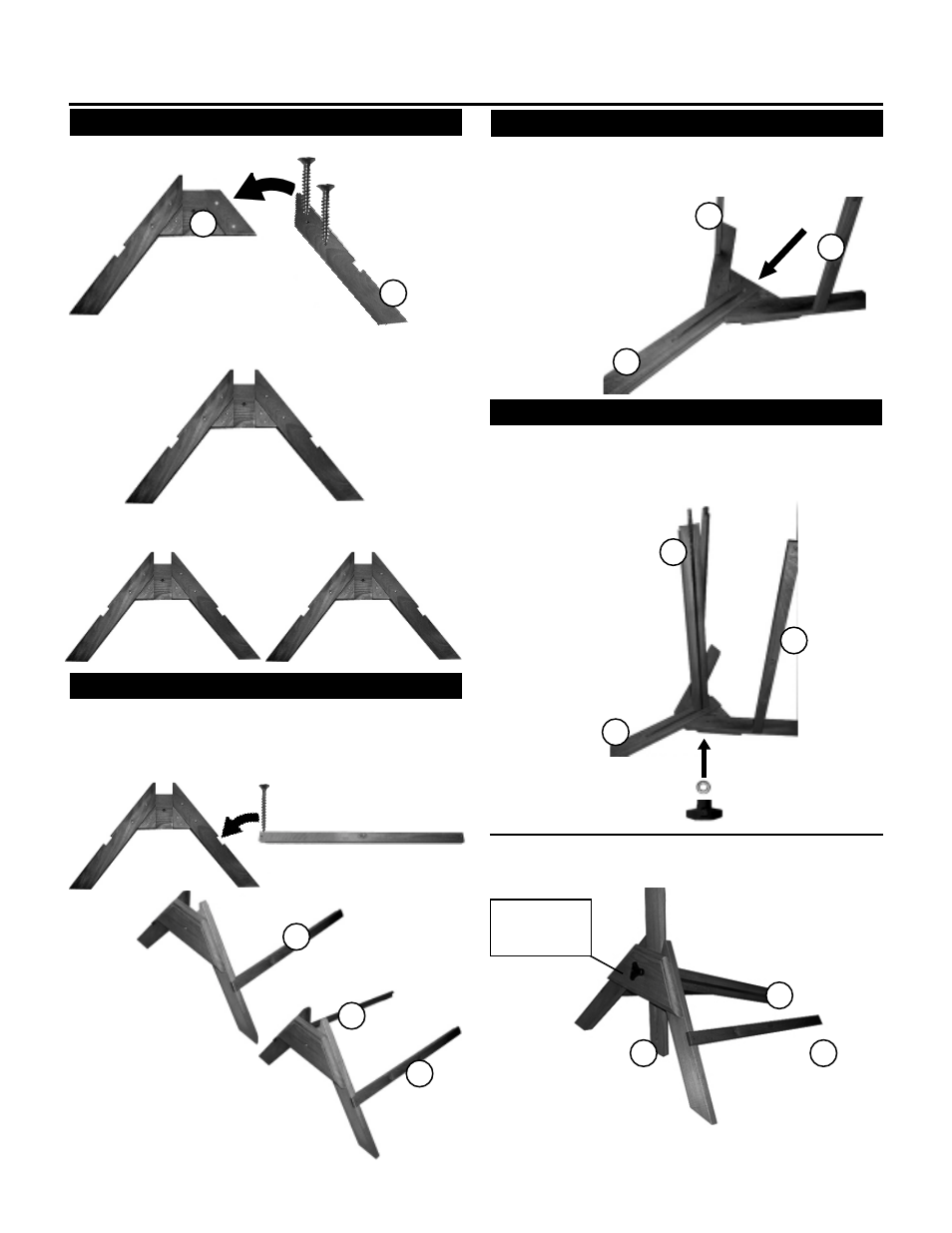

STEP 1] Assembling A-Base(s)
Take the A-Base end [A] as shown below and the Left Leg [B]
for the A-Base.
Assembly Instructions:
A-Base end [A] Left Leg [B]
Position the Left Leg [B] onto the A-Base, lining up holes.
Secure with [2] Long Wood Screws. Tighten. See below for
proper assembly.
Long Wood
Screws [GG]
Repeat with other side.
Now, you should have [2] complete A-Base Assemblies.
STEP 2] Attaching A-Base Supports
Take one assembled A-Base end and attach [1] support bar
(with Logo reading up in correct position) and place into notch
and secure with [1] long wood screw [GG]. See below for
proper assembly.
Proper assembly of
A-Base & support.
STEP 3] Attaching Channelled Side
Take A-Base end that has the two supports attached and place
on flat surface. Position Channelled Side Support [D] into
middle section of A-Base. Making sure channel is on bottom
end. As shown below.
Repeat with other support.
Attach as shown to right.
B
A
D
C
C
C
C
C
STEP 4] Adding Lower Support & Rod
With above assembly still laying flat on surface, insert one
end of Channeled Cross Member with Threaded Rod [F] into
Channelled Side Support [D] making sure rod end goes through
other end of A-base assembly. Secure with Washer [EE] and
Female Knob [CC]
A-Base Cross Supports [C]
A-Base Assembly
After securing with washer [EE] and Female Knob [CC],
turn assembly up onto base as shown below.
C
F
F
C
D
D
Washer [EE]
and Female
Knob [CC]
