Operation
Lighting Instructions
1. Turn all burners to OFF.
2. Remove the top grid.
3. Remove the last radiant on the right.
4. Turn the shut off valve to ON.
5. Press and hold the reset (blue) button on the safety
pilot valve. Wait 15–30 seconds. Light the runner
tube. DO NOT release the reset button.
NOTE: If the runner tube does not light, wait a few
seconds, then try again.
NOTE: When lighting the runner tube for the first
time after connecting the unit to the gas
source, the light time will probably increase
to 1–2 minutes.
6. Wait an additional 15–30 seconds. Release the reset
button. The runner tube should remain lit.
NOTE: If the runner tube fails to ignite, repeat step
5. If the runner tube fails to ignite after
three attempts, contact an authorized
MagiKitch’n service agent.
7. Replace the radiant and top grid.
8. Push and turn the burner valves to operate the
individual burners as needed.
Broiler Shut Down
1. Turn the shut off valve to OFF.
2. Turn all burners to OFF.
Off
On
Shut-off
Valve
Safety Pilot Valve
(located under
shelf)
Thermocouple
(located on far
end of runner tube)
Top Grid
Radiant
Reset Button
Safety Pilot Valve

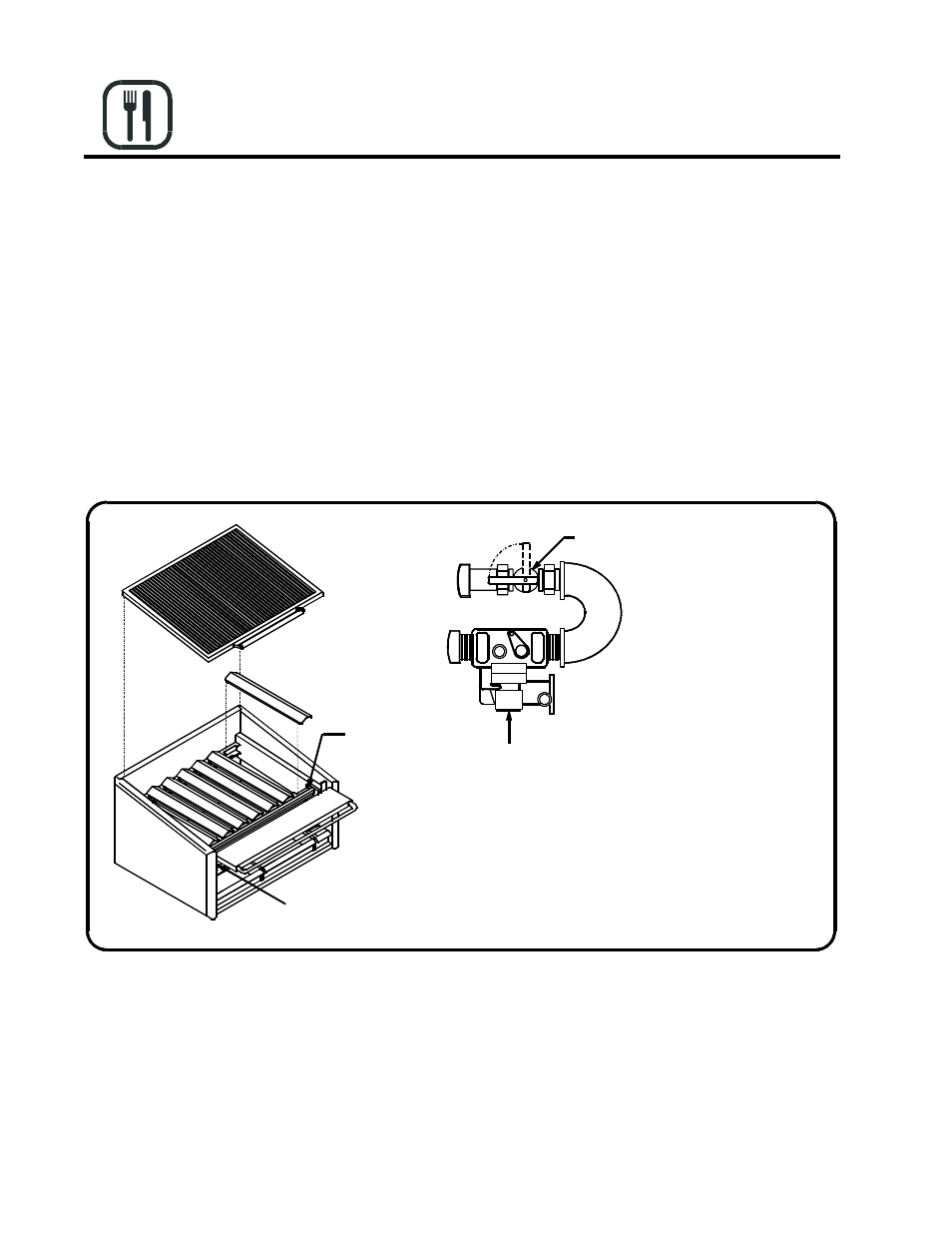

Figure 4
