4. Touchpad Electronic Deadbolt Installation

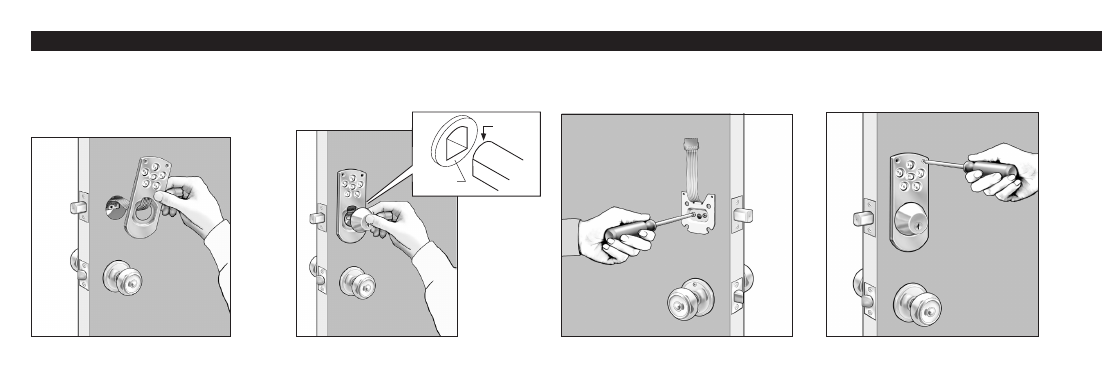

With bolt of latch in the extended position,
place Touchpad A on outside of door and
place power strip G through door over top
of latch B. Note: Do not remove backing
from Touchpad.
With key removed, place deadbolt E against
Touchpad A with round of torque blade at top
to enter through crank of latch B.
Attach deadbolt with 2 large black bolts
through mounting plate F as shown. Power
strip G should extend out.
1 2 3
4
Line Touchpad A up with small holes from
template and attach with two 1” oval head
screws. Do not over-tighten screws.
4
Round
Crank
