Introduction
1.3 RESISTIVITY CELLS
All 750/760 Series Monitors use a CS10 Cell. These reliable
sensors feature two integral thermistors to ensure accurate and
rapid automatic temperature compensation. The sturdy
polypropylene bushing is modular for easy, inexpensive
replacement. Several alternatives for the metal portion of the cell
are available, depending on the demands of the application.
1.3.1 CELL PRODUCT SPECIFICATIONS
CONSTANT:
0.05
TEMPERATURE COMPENSATION:
Two integral thermistors provide automatic TC to 25
°
C
between 32-212
°
F (0-100
°
C)
PRESSURE/TEMPERATURE LIMITS:
100 psi (689.6
kPa) ~ 212
°
F (100
°
C)
BUSHING:
Modular Polypropylene threaded .75" NPT
CABLE:
Shielded Belden 8724; 10' (3 meters) standard,
Prespecified lengths of 25' (7.5 meters) or 100' (30 meters)
also available.
DIMENSIONS:
Metal portion 1.2" (95
mm) L; 0.5" (13 mm) DIA
1.4 OPTIONAL INTERFACE FEATURES
1
0-5/0-10 VDC Recorder Interface
2
4-20 mA Loop Powered Isolated Output (753 only)
3
4-20mA Self Powered Isolated Output (753 Only)
4
Three (3) Cell Input (762 only)
1.5 HOW TO ORDER

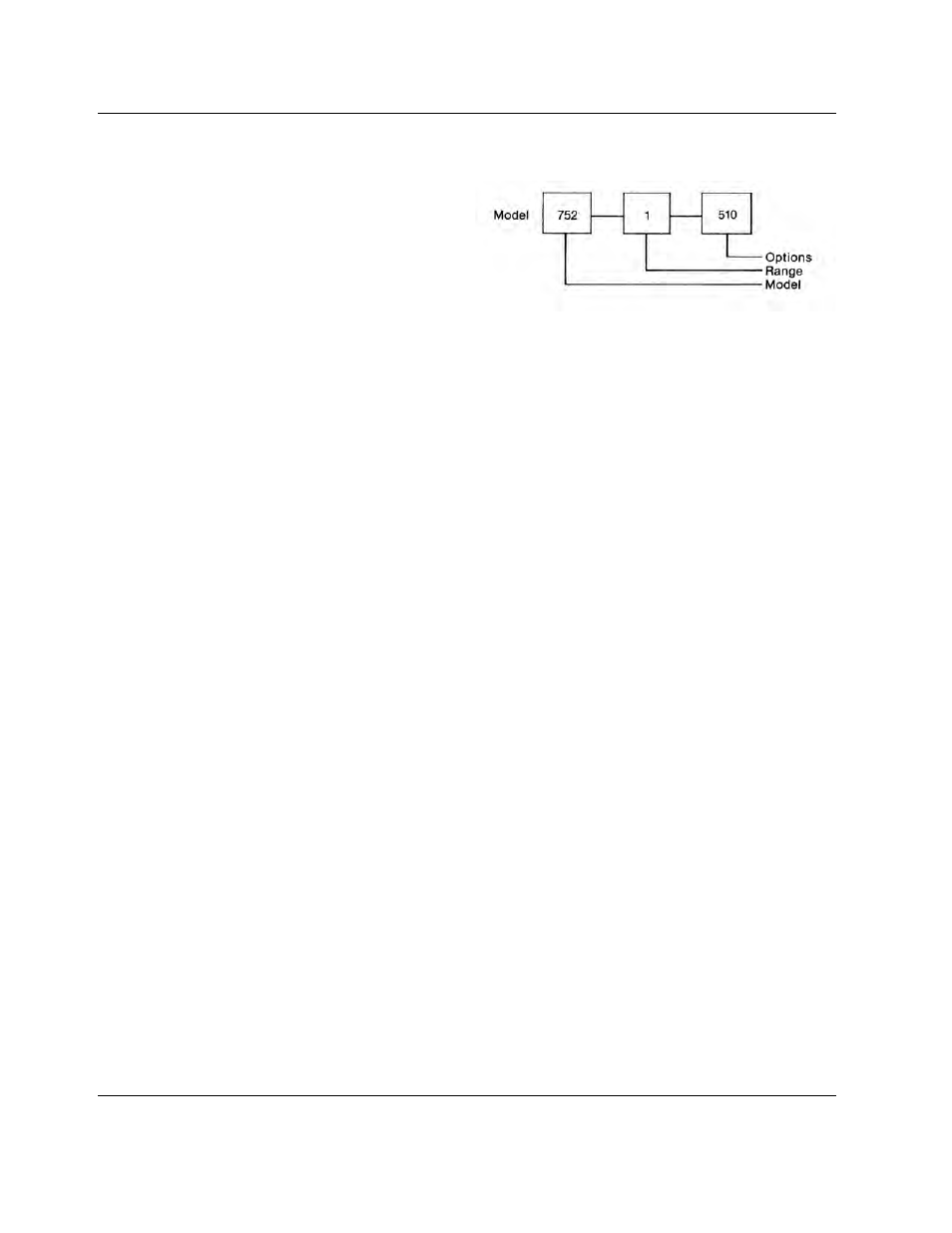

EXAMPLE:
MODEL TYPES:
750:
Small Controller with front panel “Set Point” adjustment
knob.
752:
Small Monitor with 2
1
/
2
" analog meter display.
753:
Small Monitor with
1
/
2
" LCD digital meter display.
762:
Large Monitor with 4
1
/
2
" analog meter display and three
(3) range select switch.
RANGE SCALES:
1:
0-20 megohm-cm
2:
0-2 megohm-cm
3:
0-200 kilohm-cm
4:
0-20, 0-2, 0-0.20 megohm-cm (Model 762 only)
5:
0-500 kilohm-cm (Model 750 only)
OPTIONS:
03:
3 Cell Input (Available on the 762 Monitor only)
510:
0-5/0-10 VDC Recorder Interface (Available on
all Models)
420:
4-20 mA Loop Powered Isolated Output
(Available on the 753 Monitor only)
420D:
4-20 mA Self Powered Isolated Output
(Available on the 753 Monitor only)
HOW TO ORDER CS10 CELL(S):
CS10-S
316 Stainless Steel
-T
Titanium
