MIPRO'S PROPRIETARY "ACT" FUNCTION & OPERATION
ACT Features
!
!
!
ACT Set-Up
No manual frequency adjusting needed, unlike traditional transmitters.
Simple, fast and precise frequency set-up without mechanical errors.
Once the frequency has been set, the data is stored in memory, meaning that the
frequency is set until it is changed by performing the “ACT” function again, even
after powering off.
! Ensure a receiver channel is set up.
! Press and release the “ACT” button to activate the ACT function. Once activated,
the word “ACT” appears.
! Locate the transmitter infrared (IR) port and bring it within 30cm (12”) of the
receiver's ACT port. The receiver's IR port is a round “window” located between the
ACT & SET buttons. The transmitter IR port is normally indicated by a round red
colored spot.
! When the frequencies are synchronized successfully between the transmitter and
receiver, the word “ACT” disappears and the original group and channel reappears.
What is ACT?
“ACT” stands for “Automatic Channel Targeting”. MIPRO was the first manufacturer in
the industry to use infrared (IR) technology to automatically synchronize the frequency
selected on the receiver to any ACT handheld or bodypack transmitter on the same
frequency band.
True Diversity Receivers True Diversity Receivers
CHANNEL
1
ACT SET
B A BA
L
SQ GRP CH NAME ADD FRQ
SET
or
< 3
0cm
(12
in.)
POWER
ON
ACT-717
SET
SELECT CHANNEL 1 ACT SET
B A BA
L
SQ GRP CH NAME ADD FRQ SET
2 3

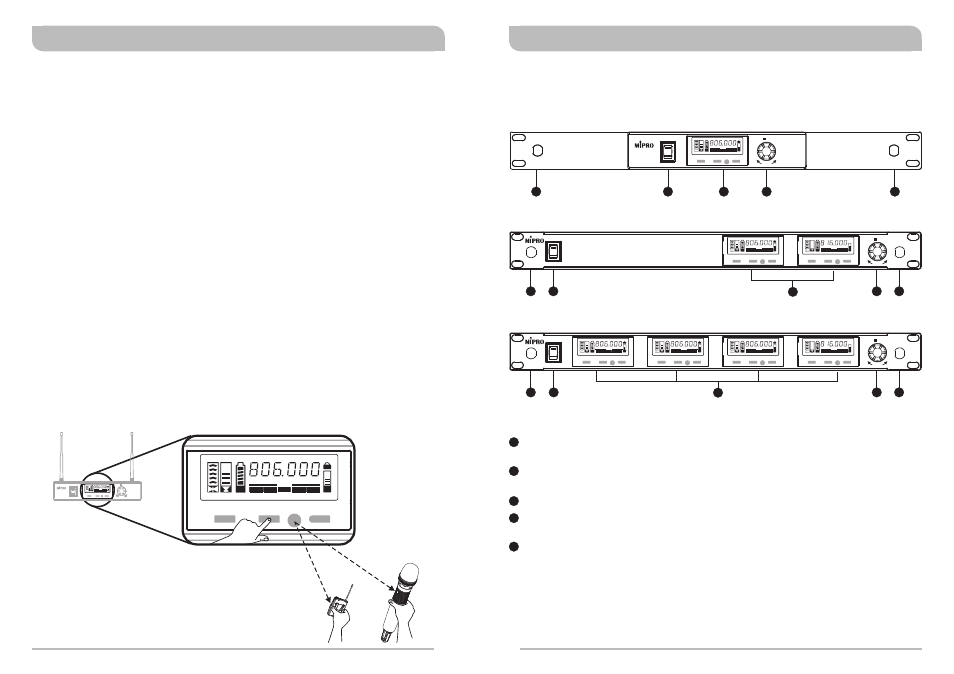

Front Panel:
ACT-717 / ACT-717B Single-Channel True-Diversity Receiver
CHANNEL 1 ACT SET
POWER
ON
B A BA
L
SQ GRP CH NAME ADD FRQ SET
SET
SELECT
1 2 3 4 5
ACT-727 / ACT-727B Dual-Channel True-Diversity Receiver
SELECT
SET
CHANNEL
1
ACT SET
B A BA
L
SQ GRP CH NAME ADD FRQ SET
CHANNEL
2
ACT SET
B A BA SQ GRP CH NAME ADD FRQ SET
POWER
ON
1 2 4 5 3
ACT-747 / ACT-747B Four-Channel True-Diversity Receiver
SELECT
SET
CHANNEL
3
ACT SET
B A BA
L
SQ GRP CH NAME ADD FRQ SET
CHANNEL
2
ACT SET
B A BA
L
SQ GRP CH NAME ADD FRQ SET
CHANNEL
1
ACT SET
B A BA
L
SQ GRP CH NAME ADD FRQ SET
CHANNEL
4
ACT SET
B A BA SQ GRP CH NAME ADD FRQ SET
POWER
ON
3 1 2 4 5
Antenna “A” Front Mount: Allows an optional FBC-71 rear-to-front antenna
cable for front antenna placement.
Power Switch and Indicator: When the switch is turned on, the red indicator
illuminates to denote normal power status.
Receiver Display: Color VFDs.
Rotary Controller: To set up parameters. Move cursors by turning the control
clockwise or counterclockwise.
Antenna “B” Front Mount: Allows an optional FBC-71 rear-to-front antenna
cable for front antenna placement.
2
3
4
5
1
PART NAMES AND FUNCTIONS
