38 Using TV Out
To connect S-Video Out
1
Power off your computer and your TV (or VCR).
2
Determine if your TV (or VCR) supports either a S-Video or
Composite video connection.
3
Looking at the back of your PC, locate your S-Video Out. Using an S-
Video cable or the supplied adapter cable, attach one end of the cable
to your graphics card and the other to your TV (or VCR). Refer to the
illustration.
4
Power on your TV (or VCR) first, then your computer.

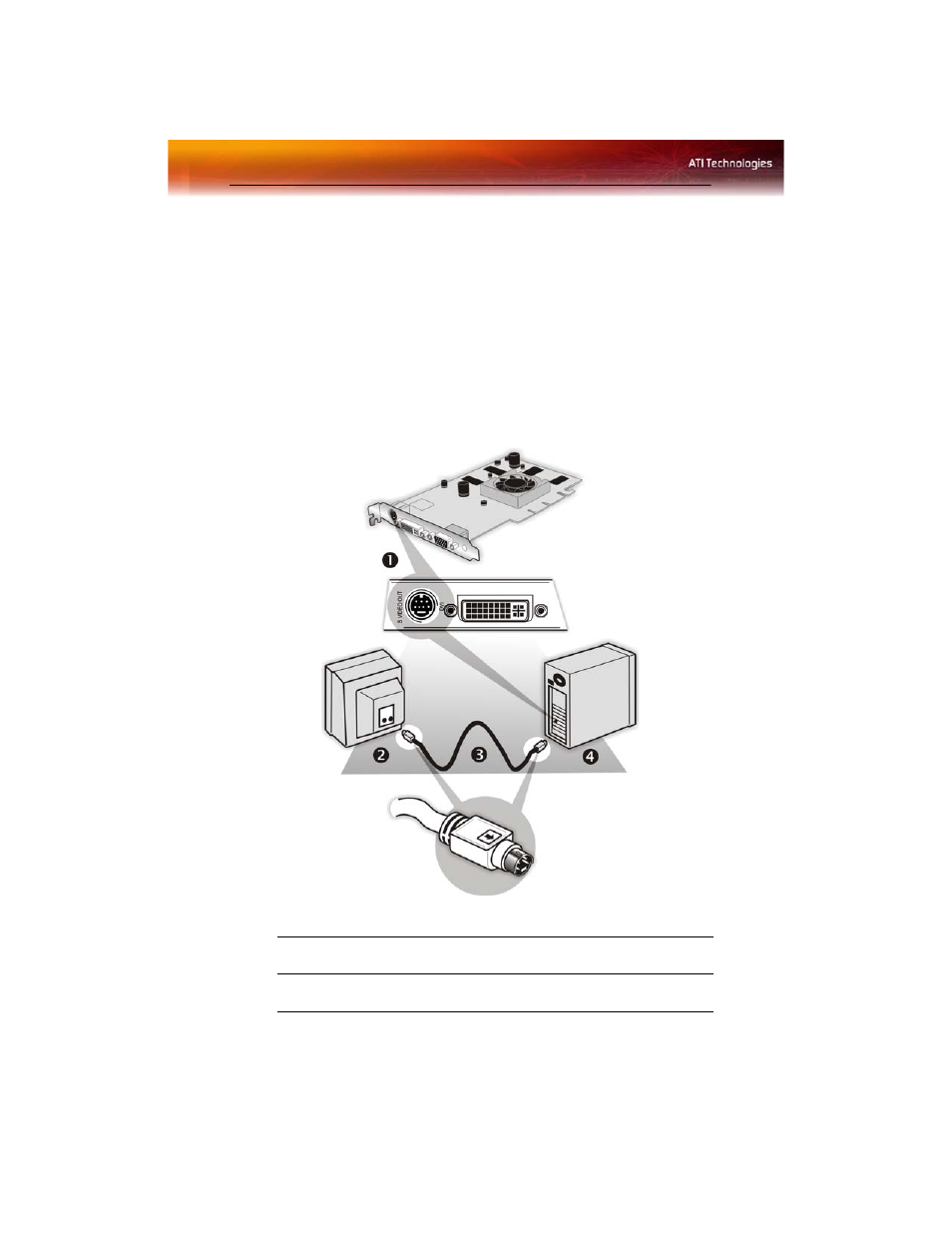

Connecting Your S-Video Out to a TV or VCR
X
S-Video Connection on graphics card
Y
TV or VCR
