RECOMMENDED TOOLS

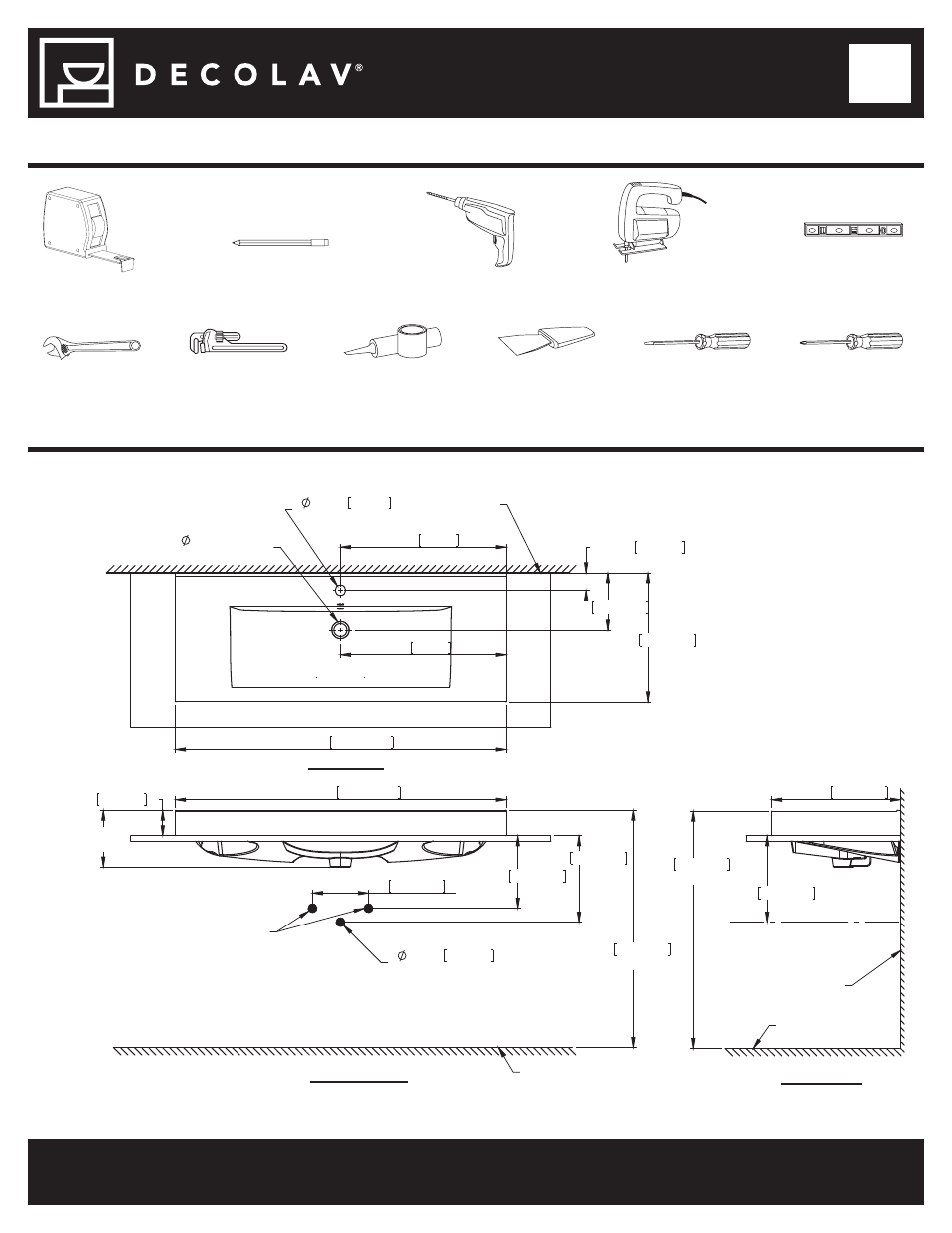

ROUGHING-IN DIMENSIONS
Tape Measure
Adjustable Wrench
Drill Level
Phillips
Screwdriver Pipe Wrench
Plumber’s Putty or
Caulking Putty Knife
Flathead
Screwdriver
Scroll Saw Pencil
10 3/8" 26.35cm
86.36cm
Suggested
12 3/8" 31.43cm
3.18cm 1 1/4"
Waste Hole
34"
8" 20.32cm
8.13 20.64cm
23.62 60cm
34" 86.36cm
Suggested
12 3/8" 31.43cm
FRONT VIEW
Supplies as
required
Finished Floor
47 1/2" 120.65cm
3 5/8" 9.21cm
8 1/8"
[20.64cm]
Drain Hole
1.693" [4.3cm]
Finished Wall
TOP VIEW
23.62 60cm
120.65cm 47 1/2"
Faucet Hole
18 3/8" 46.67cm
3.5cm 1 3/8"
2 1/2" 6.35cm
Finished Floor
SIDE VIEW
Finished Wall
Waste CL
18 3/8" 46.67cm
