rECOMMEnDED tOOLS

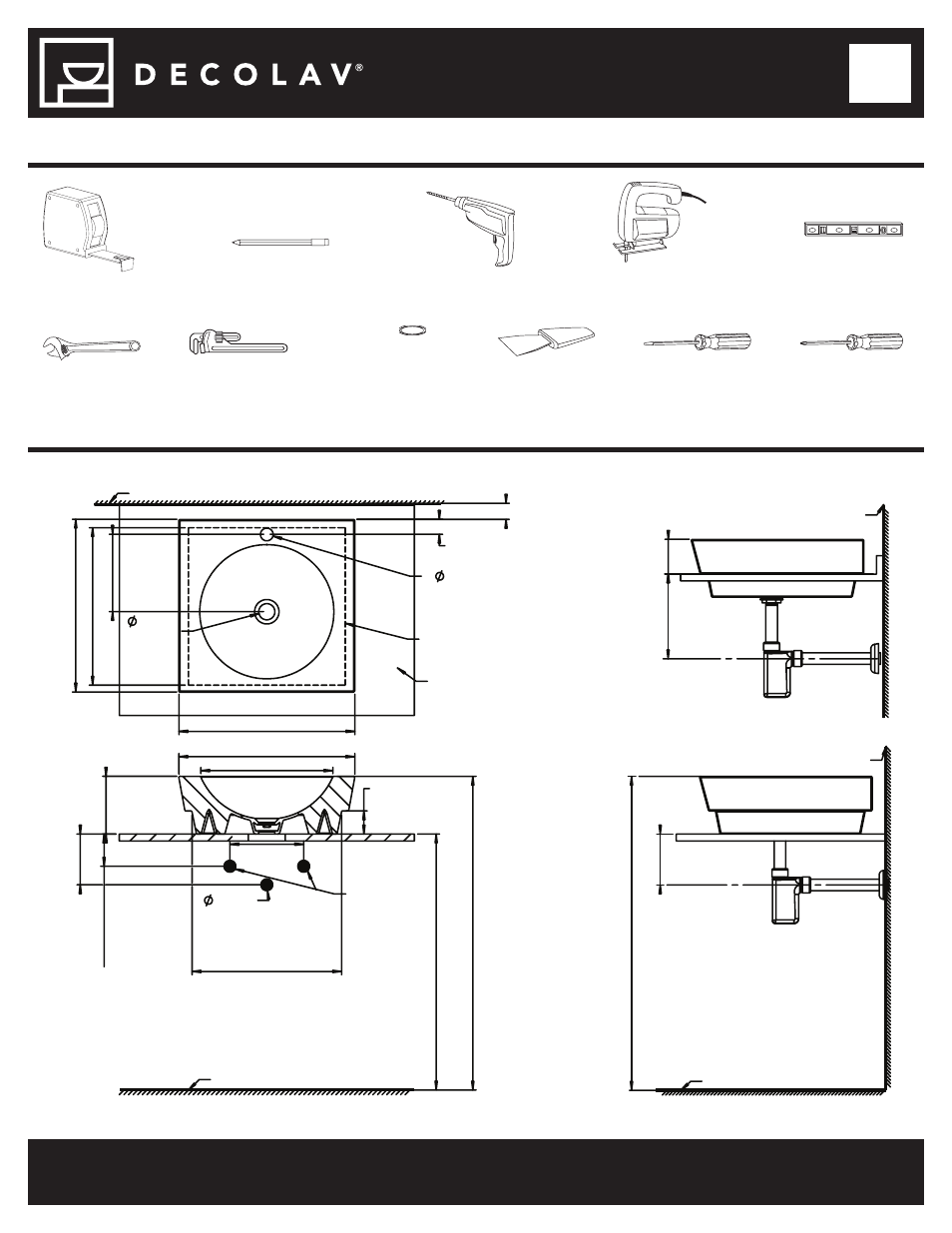

rOughing-in DiMEnSiOnS
tape measure
adjustable wrench
drill Level
phillips
screwdriver pipe wrench
plumber’s putty or
caulking putty Knife
flathead
screwdriver
scroll saw pencil
8"
[20.32 cm]
2" [5.08 cm]
1 5/8" [4.1275 cm]
19" [48.26 cm]
8 9/16" [21.8 cm]
19" [48.26 cm]
19" [48.26 cm]
6" [15.24 cm] 6" [15.24 cm]
4" [10.16 cm]
27 3/4" [70.485 cm]
34" [86.36 cm]
34" [86.36 cm]
8 1/2"
[21.59 cm]
6 1/4"
[15.875 cm]
3 3/4"
[9.525 cm]
14" [35.56 cm]
1 3/8"
[3.4925 cm]
2 1/2"
[6.35 cm]
1 3/4"
[4.445 cm]
1 1/4"
[3.175 cm]
17"
[43.18 cm]
17" [43.18 cm]
Finished Wall
Finished Wall
Sugg.
Faucet Hole
Drain
Hole
Countertop
Top View
Front View
Waste
Supplies as
required
Finished Floor Finished Floor
Suggested
Finished Wall
Cutout Area If
Semi-Recessed
Suggested
Side View
Side View
Semi-Recessed
