NA-9379
Specification
Revision 1.02
FnBus PIO N/A Page 7

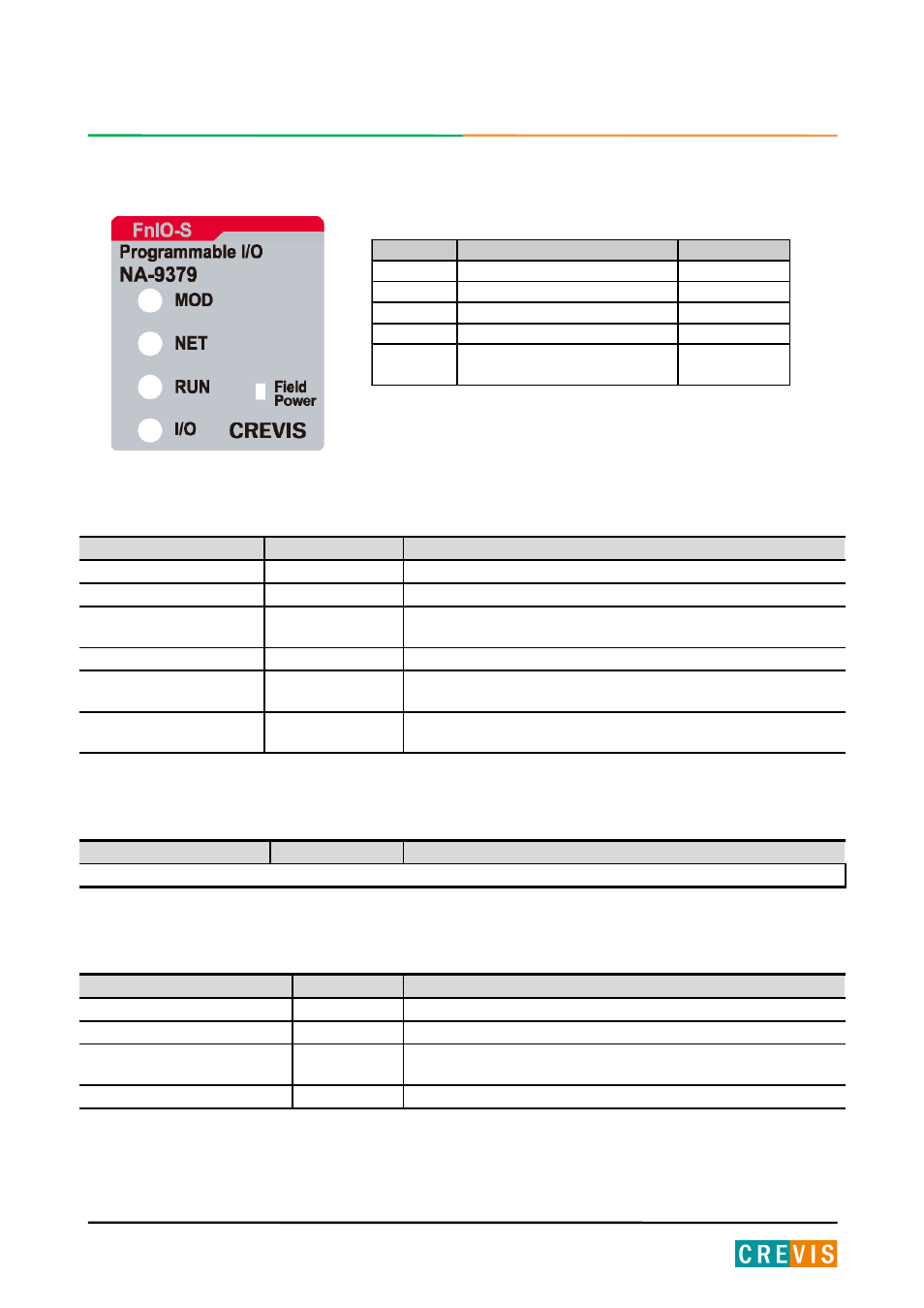

2.3. NA-9379 LED Indicator
2.3.1. LED Indicator
2.3.2. MOD (Module Status LED)
Status LED is To indicate
Not Powered OFF Not power is supplied to the unit.
Normal, Operational Green The unit is operating in normal condition.
Devicce in Standby Blinking Green The EEPROM parameter is not initialalized yet.
Serial Number is zero value (0x00000000)
IAP Mode Flashing Green IAP Mode : Availble for firmware download using FireFox.
Minor Fault Blinking Red The unit has occurred recoverable fault in self-testing.
- EEPROM checksum fault.
Unrecoverable Fault Red The unit has occurred unrecoverable fault in self-testing.
- Firmware fault
2.3.3. NET (Network Status LED)
Status LED is To indicate
Not Used
2.3.4. RUN (PLC Run/Stop Status LED)
Status LED is To indicate
Not programmed OFF Not power is supplied to the unit or Not programmed
Run Green PLC Run
Stop Blinking
Green PLC Stop
Diagnostic Blinking Red Diagnostic Mode
PRELIMINARY
LED No. LED Function / Description LED Color
MOD Module Status Green/Red
NET Not Used -
RUN Error Status Green/Red
I/O Expantion Module Status Green/Red
Field
Power
Field Power Enable Green
