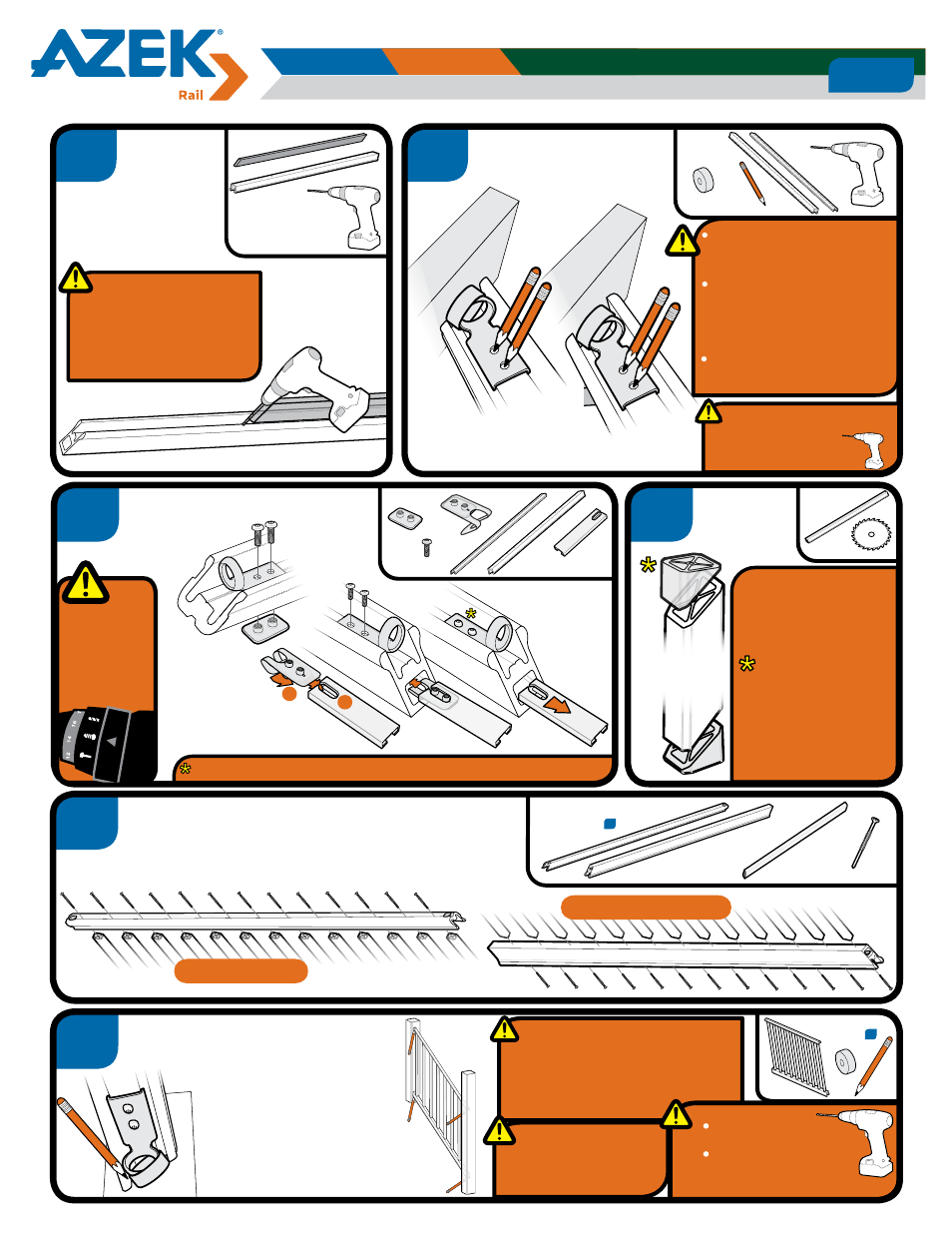

STAIR RAILING WITH UNIVERSAL BRACKET INSTALLATION GUIDELINES for
AZEK Premier AZEK Trademark AZEK Reserve
Page 3
Bottom Retainer 2nd
Rail assemblies
from step # 8
12 Assemble Rail Section: Fasten
Balusters to Top Retainer &
Bottom Rail
11
Trim
Balusters
Top
Retainer
X 8
X 2
Spring Clip
Installation Tool
Remove Installation Tool before fully tightening bracket screws.
1
2
Close Spring Clip
and insert it into
Installation Tool
10 Install Brackets
Bottom
Rail
When counter boring holes
to create clearance for
Baluster Screws, make sure
to only drill through bottom
surface of Bottom Rail
3/8” Drill Bit
8
Counter bore
underside of
Bottom Rail
Top
Retainer
Bottom
Rail
When drilling holes for
Brackets, do not drill through
top surface of Bottom Rail
Using a piece of scrap, and the
Universal Bracket Cup, mark
the holes for the bracket flush
with the end of the rail.
Universal Brackets only need
to be used on rails cut with
compound angles. For
installation of Stair Brackets,
see STAIR RAILING
INSTALLATION GUIDE.
X 4
9 Measure, Mark &
Drill for Brackets
Now Pilot & Drill
Pilot with 1 / 8 ” Drill Bit
Drill with 5 / 16 ” Drill Bit
Rail assembly
from step
10
Mark Bracket
locations using
Universal Bracket
Cup to locate
hole
Mark all four
Bracket
locations and
then remove
rail section
13
Mark Bracket, Remove
Rail Section and Drill
for Brackets
Important:
Be sure to only drill
through Post Sleeve.
Remove Rail Section
before drilling holes.
with 3 / 16 ” Drill Bit
X 4
Top Retainer 1st
Now Drill
Longer balusters may
be required in order to
meet local code
referring to top rail
heights.
Tips:
When cutting balusters
trim off as little material
as possible to ensure a
full length baluster.
Use stop block on Mitre
Saw for equal length
balusters.
IMPORTANT
Make sure that the
DRIVE TOOL/DRILL
is configured or set
to use the SCREW
setting when driving
and/or tightening all
FASTENERS.
WARNING: Be sure to check
local code requirements for proper
bottom rail location and top rail
height and be sure that you have
the proper height balusters to meet
those requirements.
For best results, use a
center support block on
stair section 4ft in length
or longer.
