22.5 DEGREE BRACKET INSTALLATION GUIDELINES for
AZEK Premier AZEK Trademark AZEK Reserve
Page 2
© 2013 AZEK Building Products. All rights reserved
Top Retainer Bottom Rail
When drilling holes
for Brackets, do
not drill through
top surface of
Bottom Rail
Now Pilot & Drill
Pilot with
1 / 8
” Drill Bit
Drill with
5 / 16
” Drill Bit
X 2
X 2 X 2

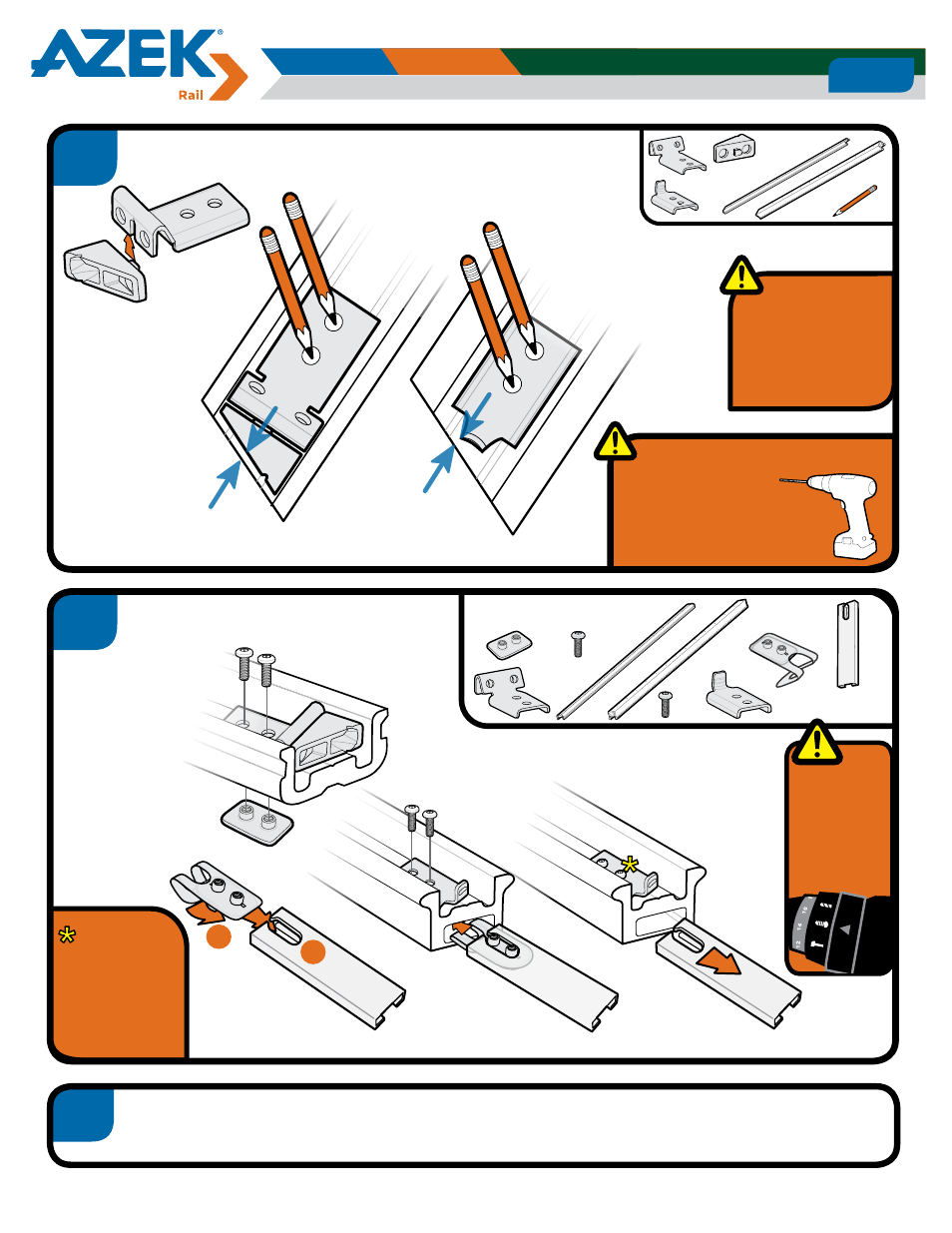

3 Measure, Mark & Drill for Brackets
Top Retainer
Top Retainer Bottom Rail
X 4
X 4
X 2
X 2
X 2
X 2
Spring Clip
Installation Tool
Remove
installation
tool before
fully tighten-
ing Bracket
screws
1
2
Bottom Rail
Close Spring Clip
and insert it into
Installation Tool
4 Install Brackets
Install Shim on
Top Retainer
Bracket
5
Continue installation process as indicated in RAILING INSTALLATION
GUIDELINES included in Rail kit
Mark Bracket
Assembly
1 / 16 ”
from end of Top
Retainer
Mark Bracket
with closest point
1 / 16 ” from end of
Bottom Rail
IMPORTANT
Make sure that
the DRIVE
TOOL/DRILL is
configured or set
to use the
SCREW setting
when driving
and/or tightening
all FASTENERS.
