WallVIEW Universal CCU Cat-5 Version
Vaddio WallVIEW Universal CCU Cat-5 Version. Document Number 342-0512 Rev C Page 19 of 20
Appendix 1 (continued)

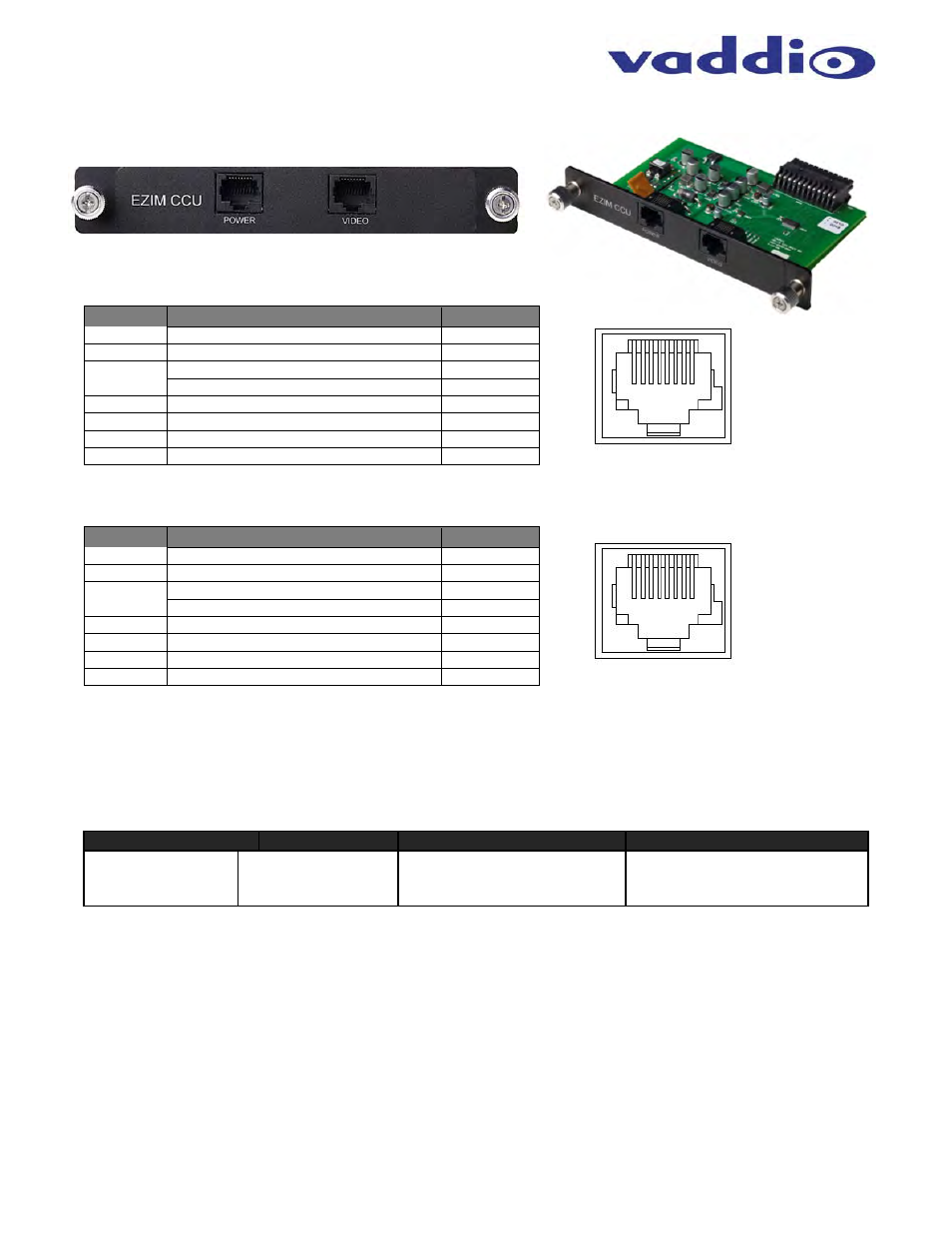

EZIM Slot Card Pin-out Assignments
Power Connector RJ-45 (Red)
Pin #
Function
Pairs
Pin - 1
Power +
1
Pin - 2
Power -
1
Pin - 3
Power +
2
Pin - 4
Power -
3
Pin - 5
Power +
3
Pin - 6
Power -
2
Pin - 7
Power +
4
Pin - 8
Power -
4
Video (HSDS-differential) RJ-45
Pin #
Function
Pairs
Pin - 1
N/A
Not Used
Pin - 2
N/A
Not Used
Pin - 3
Y+
2
Pin - 4
PB+
3
Pin - 5
PB GND
3
Pin - 6
Y GND
2
Pin - 7
PR+
4
Pin - 8
PR-
4
Appendix 2: New Commands for the CCU Scene Selection
Command Set
Command
Command Packet
Comments
QCCU_Scenes Reset
Set
Recall
8x 01 04 3F 00 7p FF
8x 01 04 3F 01 7p FF
8x 01 04 3F 02 7p FF
p: Scene Number =1, 2 or 3
Notes:
For use with Quick-Connect Universal CCU (QCCU), which no daisy-chain operation is allowed, the Command
packet will be 81 01 043F 00 7p FF (where the p is scene 1, 2 or 3.)
A Vaddio PTZ camera must be connected to the QCCU for the scene Set, Recall, and Reset to operate correctly.
This command set communicates with the QCCU and the camera simultaneously.
12345678
POWER
12345678
VIDEO
