Installation Near Open Heat Source
When placing a TurboChef oven near an open heat source (see illustration below), strictly adhere to the
following:
- If the oven is being placed near a grill or stove, a divider must exist between the oven and the
open heat source, with a minimum of 6” (152 mm) between the oven and the divider.
- If the oven is being placed near a fryer, a divider must exist between the oven and fryer, with a
minimum of 12” (305 mm) between the oven and the divider.
- The height of the divider must be greater than or equal to the height of the oven (32.3” or 820 mm).
- Verify the oven location has a minimum 2” (51 mm) clearance on the top and each side.

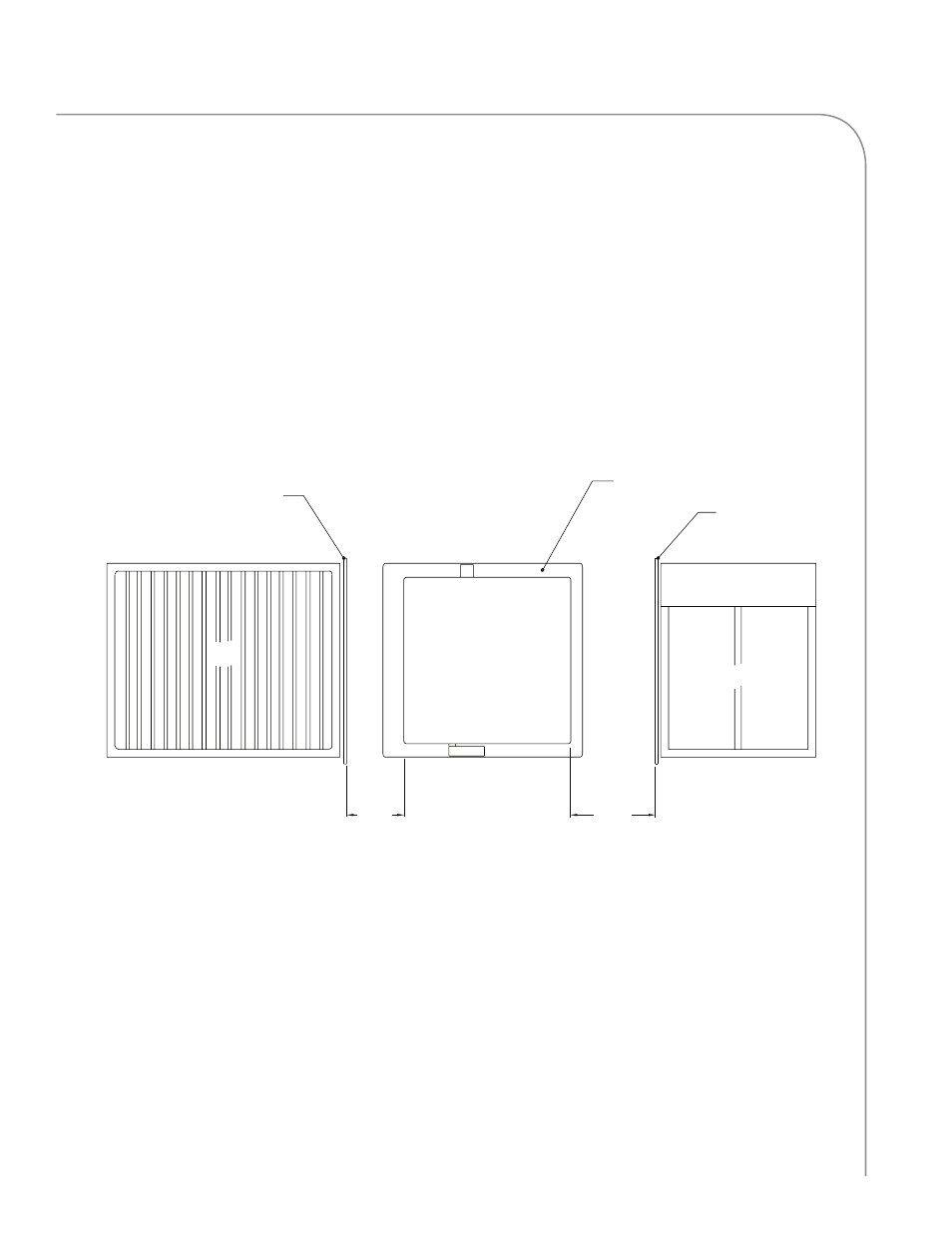

Installation Near Open Heat Source
Grill
Partition
32.3” (820 mm)
Above Counter Top
6”
(152 mm)
Minimum
12”
(305 mm)
Minimum
Deep Fryer
Cart / Stand
Partition
32.3” (820 mm)
Above Counter Top
TurboChef
G5 Oven
