4

7. Installation

7.1

Location

Review the Safety section prior to installing the pump with ADV. It contains information required to
properly install and operate the ADV in an industrial environment.

Review the PULSAR

®

or PULSAR Shadow

®

Installation Operation Maintenance manual provided with

your metering pump. It details system related issues that are important to proper operation of the pump
and also the ADV. The ADV should be mounted in an area where the operator has access to the front of
the unit. Avoid locations where the ADV would be subjected to extreme cold or heat. Note the warning
statement on the next page. The installation of this device must comply with national, state and local
codes.

Allow 6 inches minimum clearance from the front of the ADV enclosure to allow for removal and
re-installation of the ADV as a unit.

A

VOID LOCATIONS WHERE THE

ADV

WOULD BE SUBJECTED TO EXTREME COLD OR HEAT OR

DIRECT SUNLIGHT

.

F

AILURE TO OBSERVE THIS WARNING COULD DAMAGE THE

ADV

AND VOID

ITS WARRANTY

M

INIMUM

O

PERATING

T

EMPERATURE

0

°

C

ELSIUS

/

32

°

F

AHRENHEIT

M

AXIMUM

(PVC

CONSTRUCTION

)

49

°

C

ELSIUS

/

120

°

F

AHRENHEIT

M

AXIMUM

(PVDF

CONSTRUCTION

) 65

°

C

ELSIUS

/

150

°

F

AHRENHEIT


7.2

Installation Notes

1. Do not make any electrical connections without adequate grounding.

2. Conduit connections can carry fluids and vapors into the ADV causing damage and voiding the

warranty. Care should be taken when installing conduit to protect against fluid/vapor entry. If
necessary, provide sealed entries or conduit drains near the point of entry.

3. It is recommended that the ADV be powered from a Ground Fault Circuit Interrupter (GFCI) protected

electrical circuit.

7.3

Electrical Wiring

The ADV is available in two
voltages, and is rated as follows:

115 VAC, 50/60 Hz, 0.2 A

OR

230 VAC, 50/60 Hz, 0.1 A

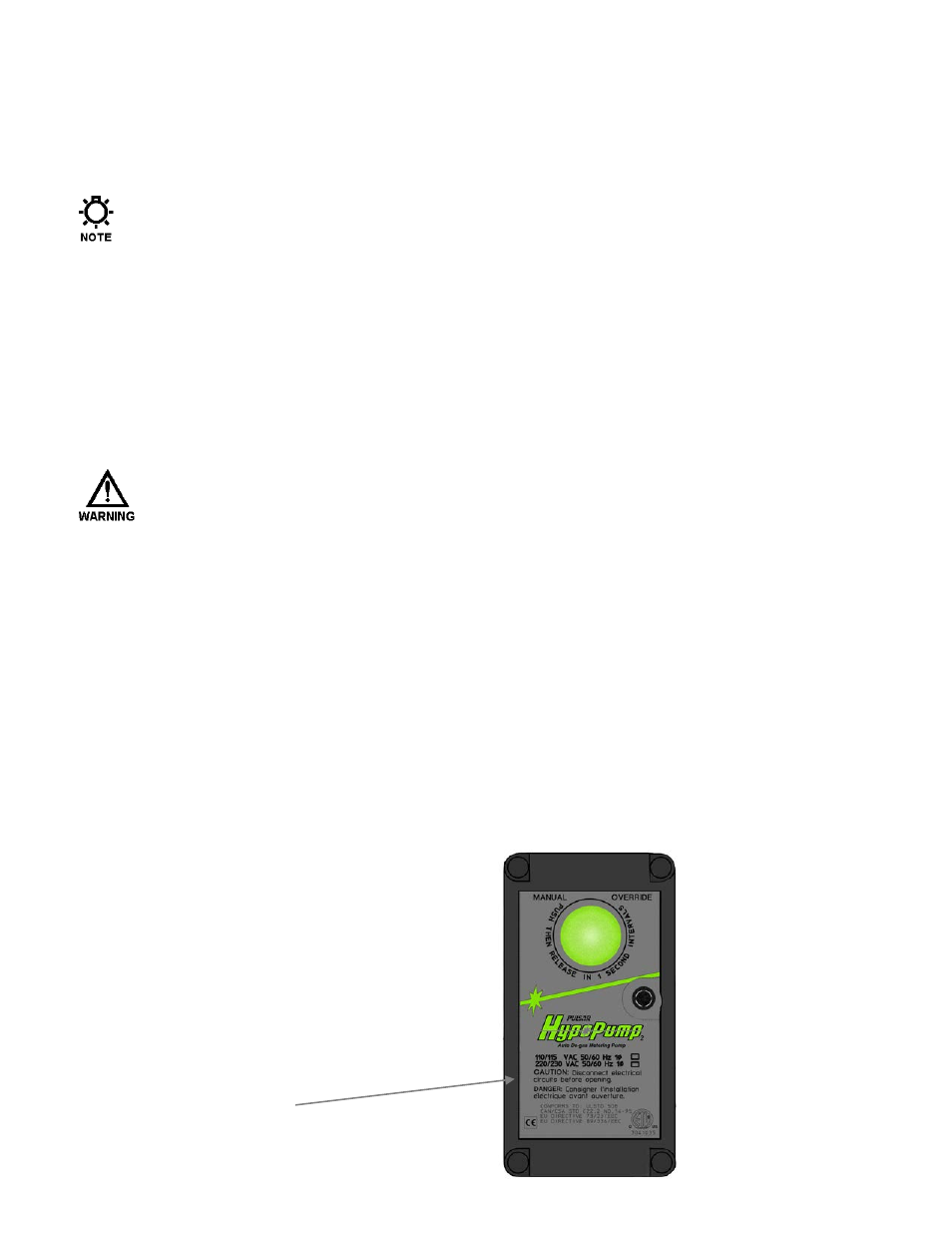

The ADV voltage is indicated on
the enclosure label.
