Pulsafeeder Pulsar Series HypoPump2 User Manual
Page 13
9

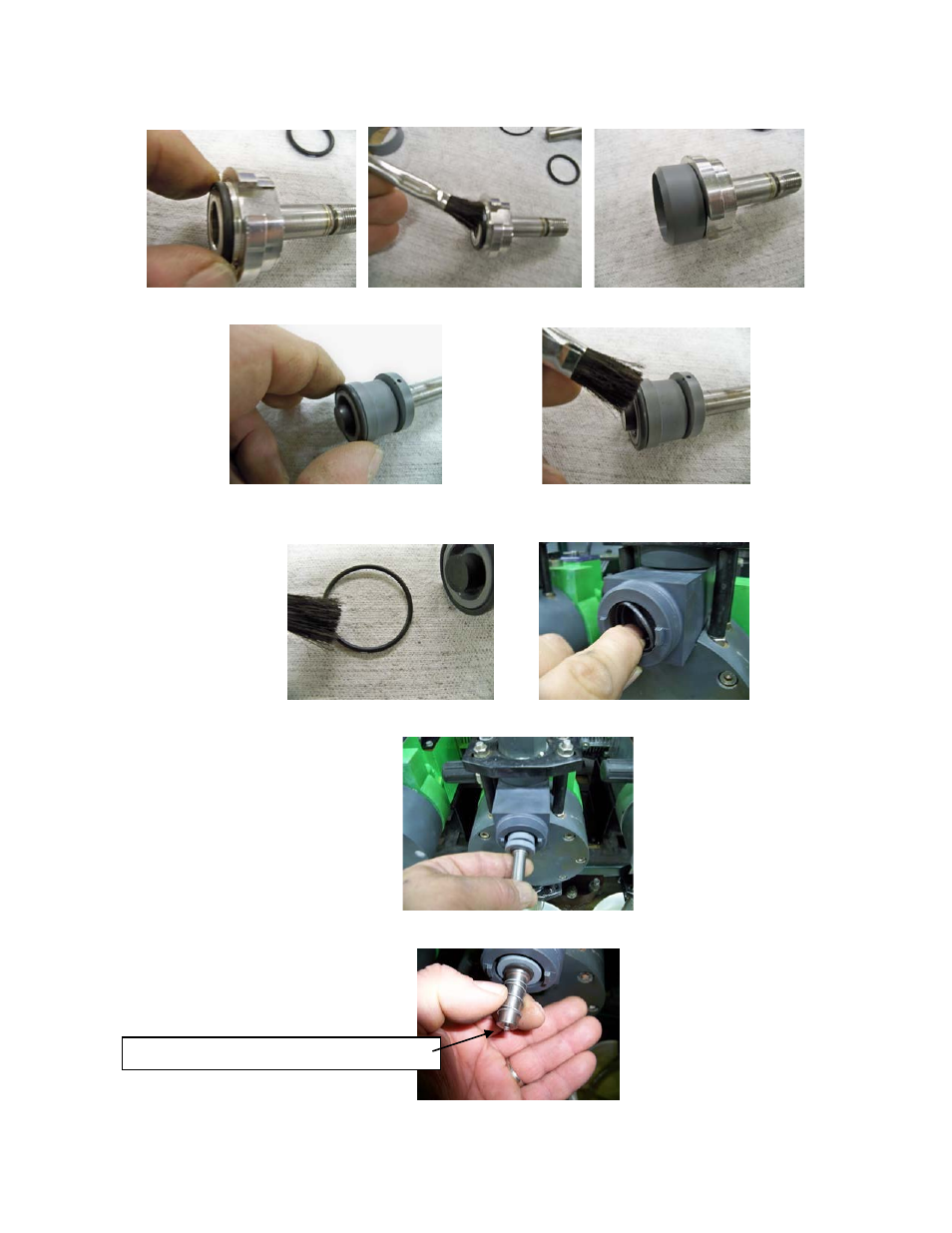

10. Install NEW O-ring onto core tube, lubricate with lubricant that is compatible with product being
pumped, and reinstall sleeve over Core Tube.
11. Install NEW O-ring on Seal Kit and with lubricant that is compatible with product being pumped.
12. Apply a lubricant that is compatible with product being pumped to the Body O-ring and install into
Valve Body.
13. Install NEW Seal Kit into Valve Body. Use care to ONLY push straight into bore.
14. Install new spring over Core and check that Small Spring is still in the Core.
Check that small spring is inserted in Core
