ELECTRICAL
WARNING
Before servicing electrical components in the cabinet, make sure all power to cabinet is off. Always use a
qualified technician.
To comply with NSF requirements, this cabinet must be mounted on casters or the base must be sealed to the floor
with NSF listed silicone sealant. Optional casters screw into the holes from which the shipping bolts were removed.
1. Place cabinet in desired location, leaving approximately 4” behind cabinet to allow condenser discharge air to
escape.
2. Check the electrical circuit to see that 115-volt single-phase service is available with sufficient amperage to
carry the load of the cabinet. Electrical codes make it necessary to ship the cabinet with 3 prong plugs.
However, if it is necessary to use an adapter for a 2-prong outlet, care should be taken to see that a grounding
wire is run individually to the cabinet (see wiring diagram).
3. It is unnecessary to remove the grille from your freezer prior to starting of the freezer. All cabinets are equipped
with internal spring mounted compressors. All refrigeration valves are shipped open from the factory to
eliminate the requirement of opening the service valves upon start-up.
4. Each freezer comes with a thermostatic control pre-set for normal operation. When cooler or warmer
temperatures are desired, turn knob in the appropriate direction (clockwise for colder) as indicated on the dial
plate. It is suggested that the freezer be allowed to operate at least 4 hours prior to readjustment of the control.
It is suggested that the cabinet be allowed to pull down to the desired temperature and cycle off on the control
at least three times before product is placed in the freezer.
REPLACING CONDENSATE HEATERS
The cabinet is constructed with a stainless steel top. Directly below the all vinyl collar that encabinets the openings
in the top of your freezer, there is an anti-sweat heater that helps prevent condensation under extreme humidity
conditions. This heater is easily replaced by merely removing the plastic collar without the need to dismantle the
entire top portion of your freezer.
TEMPERATURE CONTROL
WARNING: KEEP HANDS OR ANY MATERIAL OFF THE FAN
BLADE AS FAN MAY COME ON AUTOMATICALLY.

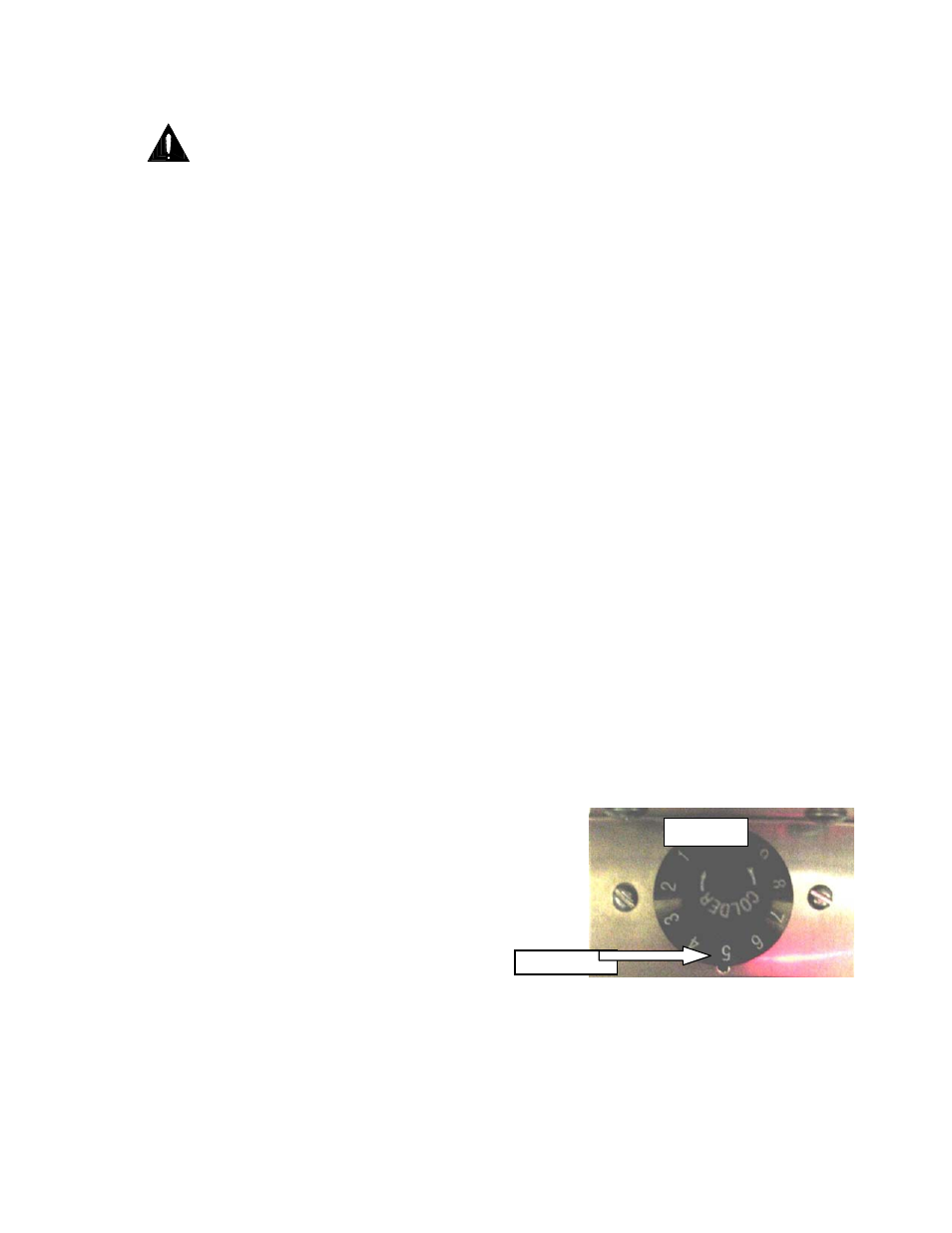

The Ice Cream Cabinets have a temperature control that is adjustable
from # 1 (warmest setting) to # 9 (coldest setting). Turn the control
knob in line with the punch mark to the desired setting. The
temperature control is located near the condensing unit.
Punch Mark
Dial Plate
