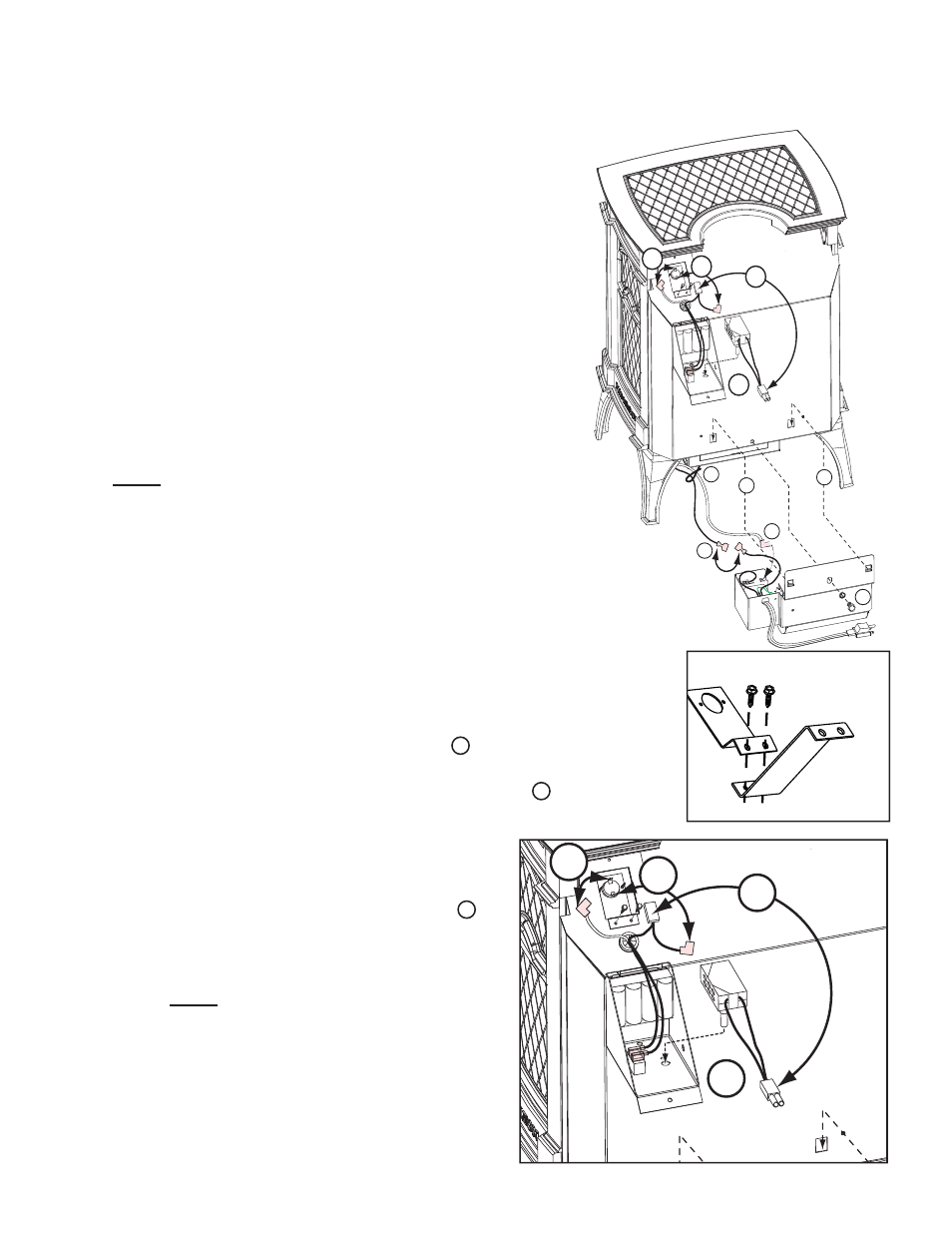

A. Open the switch housing by removing the top screw.
B. With the 2 screws and extension bracket supplied in the heater baggie,
fasten extension bracket to the thermal disc bracket. Install bracket
assembly as shown, using 2 of the screws supplied. Connect the fl agged
leads to the terminals of the thermal disc 7 .
C. Remove the knock out from the switch housing label 8 . Install the
variable
speed switch (rheostat) into the housing with the wires facing
up. Secure the switch to the housing using the pal nut and the knob
supplied.
D. Connect the male connector on the switc to the
female connector coming from the heater 9 .
E. Pilot Indicator Light: Install the batteries as shown.
Replace the batteries annually.
NOTE: If replacing the pilot indicator light ,
ensure that the red wire lead connects to the
red lead of the thermopile and black to white.
F. Tuck all of the wires into the switch housing and
close. Secure using the screw removed in step A.
5.0 OPTIONAL BLOWER INSTALLATION
2
3
4
4
5
1
7
7
8
9
( SEE LOCATION AND CLEARANCES IN INSTRUCTION MANUAL )
A. Cut and remove the tie securing the blower switch wires to
the heat shield.
B. Connect the white wire coming from below the heater to the
terminal on the blower.
C. Connect the black blower wire to the black wire coming from
below the heater.
D. Insert the clips on the blower housing into the cutouts in the
rear shield. Push down to lock the clips into position.
E. Secure the blower using the screw and lock washer supplied.
NOTE: Ensure that all the wires are tucked into the blower switch
housing.
This heater comes equipped with a pilot indicator light that blinks
every few seconds when the pilot is on. For more information see step A,
section 5.2
THERMAL DISC
EXTENSION
BRACKET
THERMAL DISC
BRACKET
7
7
8
9
5.1 BLOWER INSTALLATION AND CONNECTION
5.2 SWITCH CONNECTIONS
