12
W415-0559 / D / 05.09.12
3
SCREWS
BRACKET
FRONT
2
FRONT
FRONT
LEGS
TAB
Four
Screws

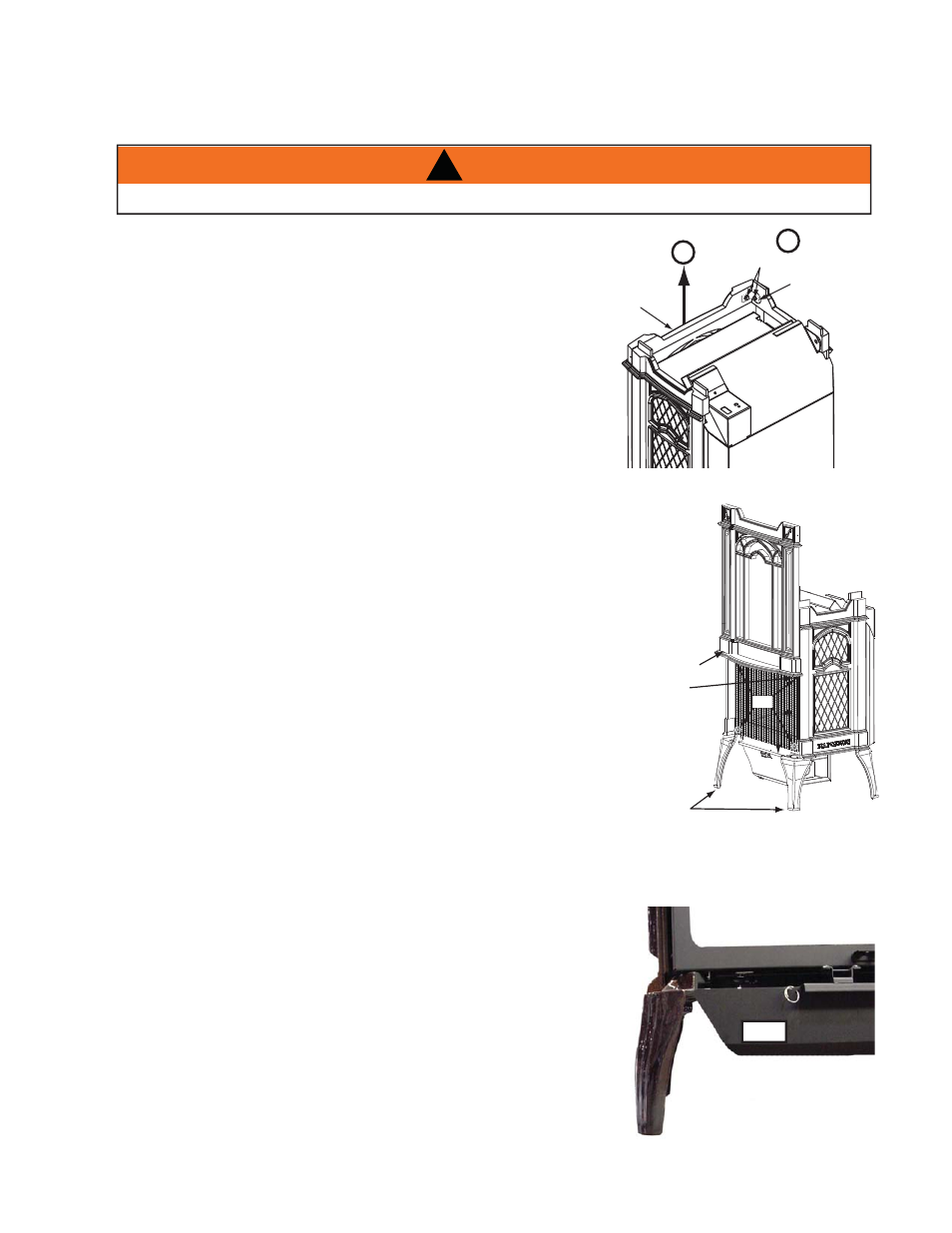

4.0 FINISHING
4.1 CAST FRONT INSTALLATION AND REMOVAL
A. Lift the top cast piece off of the heater.
B. Detach the front cast piece from the side pieces by removing
the screws from the brackets located in the upper inside
corners.
C. Slide the front straight up to remove.
Follow the above steps in reverse in order to reinstall
the cast front. Ensure that the tabs on the underside of
the front fi t behind the front legs.
4.2 SCREEN INSTALLATION AND REMOVAL
A. Unscrew the four screws (one in each corner) securing the screen
to the heater face.
B. Remove screen from heater.
Follow the above steps in reverse in order to reinstall the screen.
!
WARNING
SCREENS MUST BE CLOSED WHILE THE APPLIANCE IS IN OPERATION.
Remove the backing of the logo supplied and centre over the logo installa-
tion holes, as indicated.
LOGO
4.3 LOGO PLACEMENT
