WARNING
RISK OF FIRE AND ELECTRICAL SHOCK.
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS
COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL
VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE FAN’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
APPLIANCE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER
CORD BENEATH THE APPLIANCE.
THE WIRE HARNESS PROVIDED IN THE BLOWER KIT IS A UNIVERSAL HARNESS. WHEN
INSTALLED, ENSURE THAT ANY EXCESS WIRE IS CONTAINED, PREVENTING IT FROM MAKING
CONTACT WITH MOVING OR HOT OBJECTS.
51.5
Remove the backing of the logo supplied and place on the screen cover, as
indicated.
A
B
C
SLOT
A B C
CLIPS
CENTRE SLOT
TAB
SLOT
HINGE CLIP
57.3

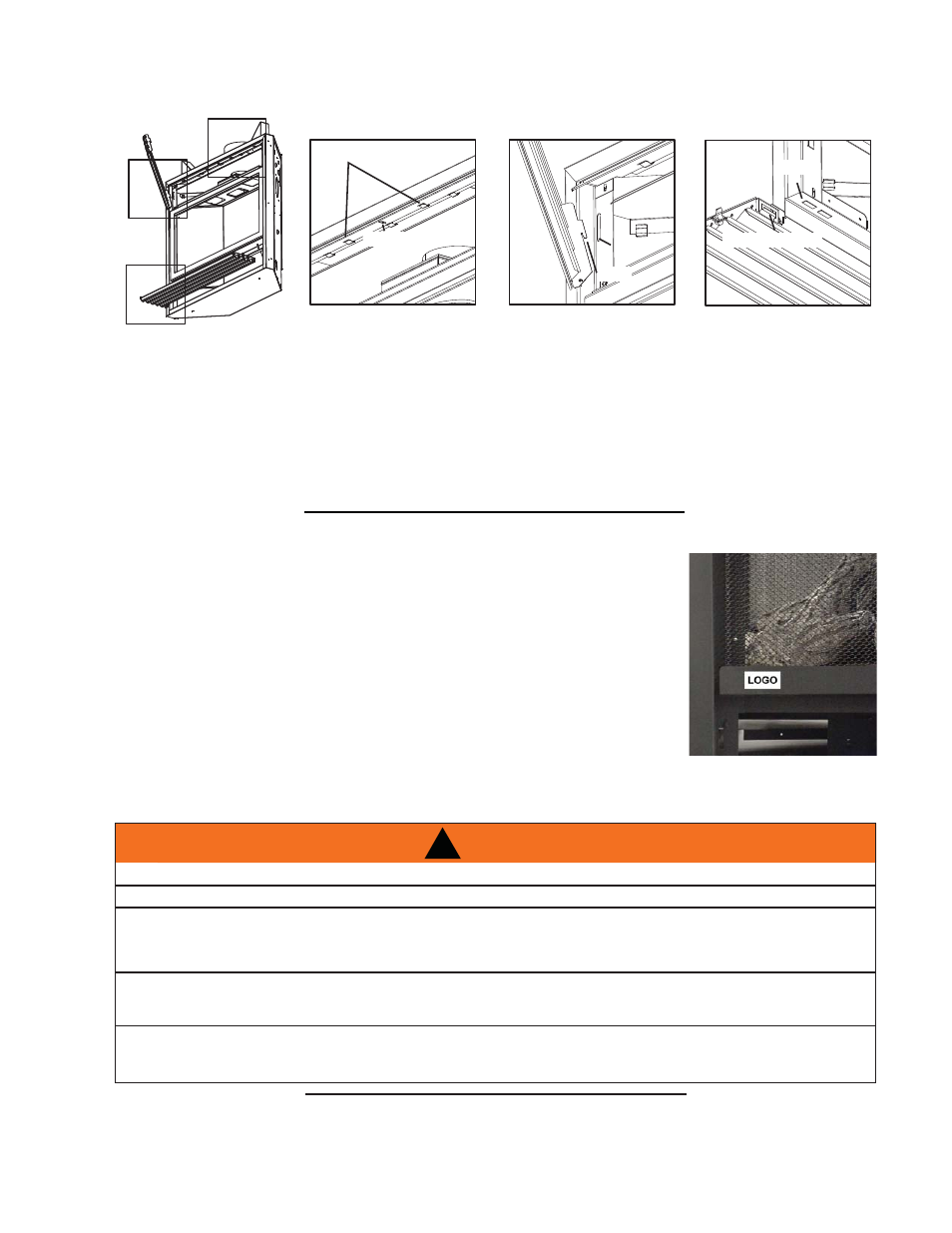

UPPER LOUVRES
Insert the louvre tabs
into the slots located
at the top left and right
corners of the unit. LOWER LOUVRES
Insert the hinge clips
into the slots located at
the bottom left and right
corners of the unit. To
remove the louvres, pull
the back tabs of the clips
forward, while pushing
the louvre assembly
back. Lift the clip. HOOD
Attach the hood by
pressing the top fl ange
into the clips along the
top of the louvre open-
ing. Secure using a
screw through the centre
slot.
5.5 LOUVRE INSTALLATION
5.6 LOGO PLACEMENT
6.0 OPTIONAL BLOWER INSTALLATION
