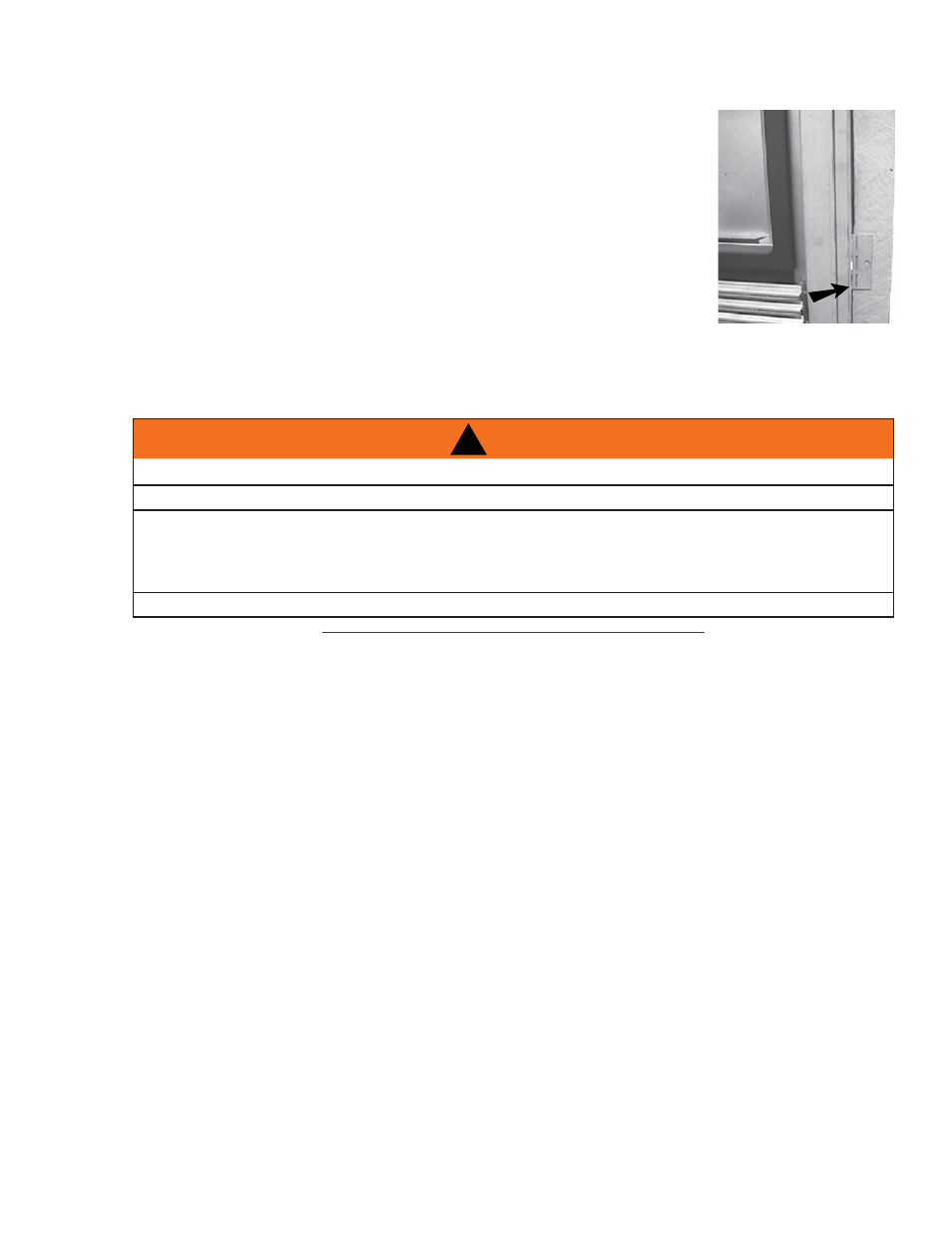

4.4 NAILING TAB INSTALLATION
To install the appliance face fl ush with the fi nished wall, position the framework to
accommodate the thickness of the fi nished wall. Bend out the four nailing tabs,
attached on either side of the appliance and secure to the 2x4 framing. The tabs
will facilitate the installation of either a
3
/
4
” or a 1” fi nished wall thickness. The
nailing tabs must not be removed.
nailing
tab
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO
BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED. AS AN ALTERNATIVE, YOU CAN FINISH THE
APPLIANCE WITH DRYWALL, SEE ILLUSTRATIONS TO FOLLOW.
FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.
72.2
5.0 FINISHING
