19
W415-0379 / E / 04.24.12
A
B
A
B
SLOT
TAB
SLOT
HINGE
CLIP
57.1A

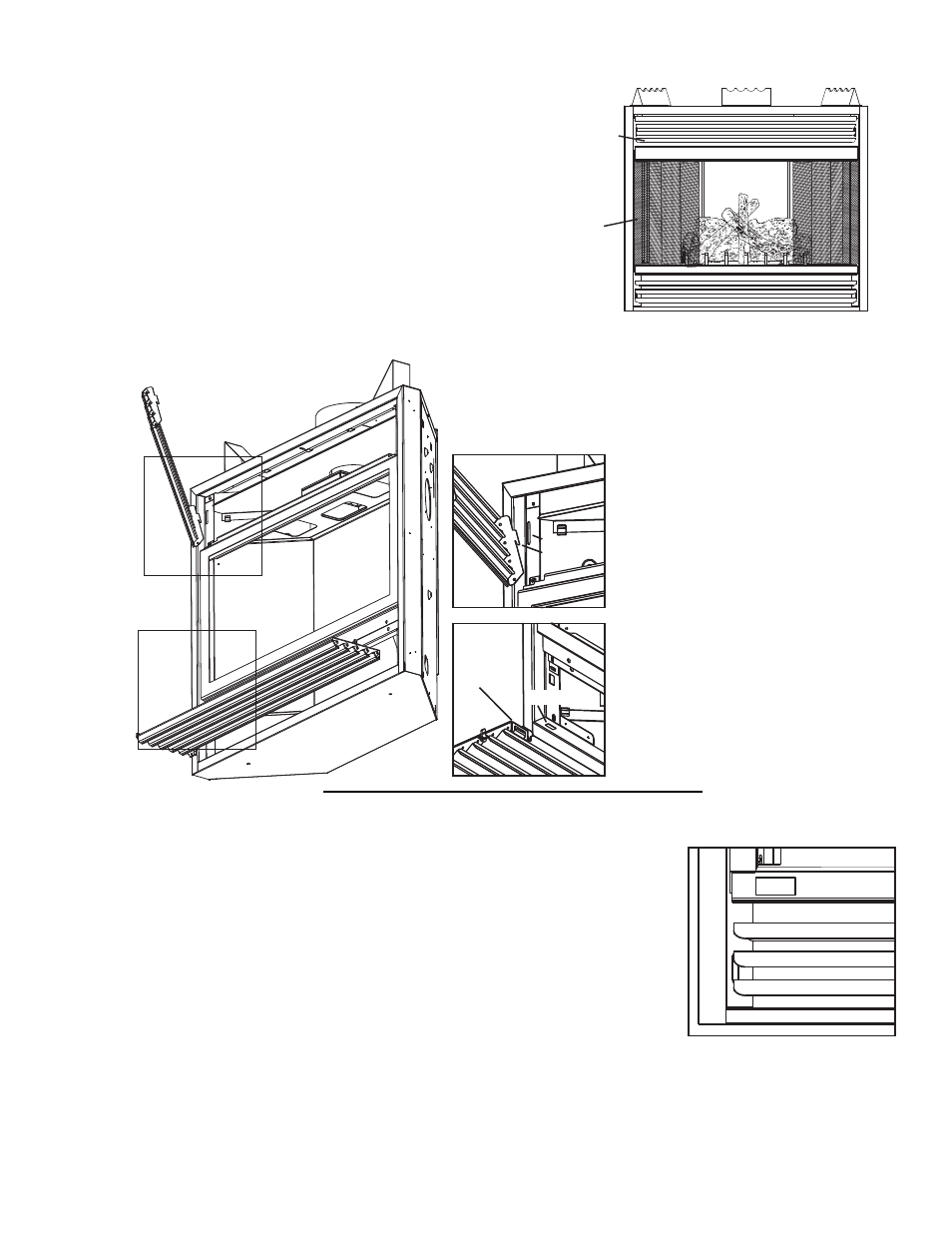

UPPER LOUVRES
Insert the louvre tabs into the slots
located at the top left and right corners of
the unit.
LOWER LOUVRES
Insert the hinge clips into the slots lo-
cated at the bottom left and right corners
of the unit.
To remove the louvres, pull the back tabs
of the clips forward, while pushing the
louvre assembly back. Lift the clip.
5.8 L42 LOUVRE INSTALLATION
5.9 LOGO PLACEMENT
Remove the backing of the logo supplied and place on the screen cover, as
indicated.
LOGO
D. The curtain mesh must be kept fully closed
during operation to help prevent accidental
burns from occurring.
CURTAIN
MESH
HOOD
LOUVRES
