58"
42½"
41"
42 ½"
22 ½"
42 ½"
OUTSIDE
CHASE OUTSIDE OUTSIDE OUTSIDE
CHASE CHASE CHASE
INSIDE
CHASE INSIDE INSIDE INSIDE
CHASE CHASE CHASE
6"
22 ½"

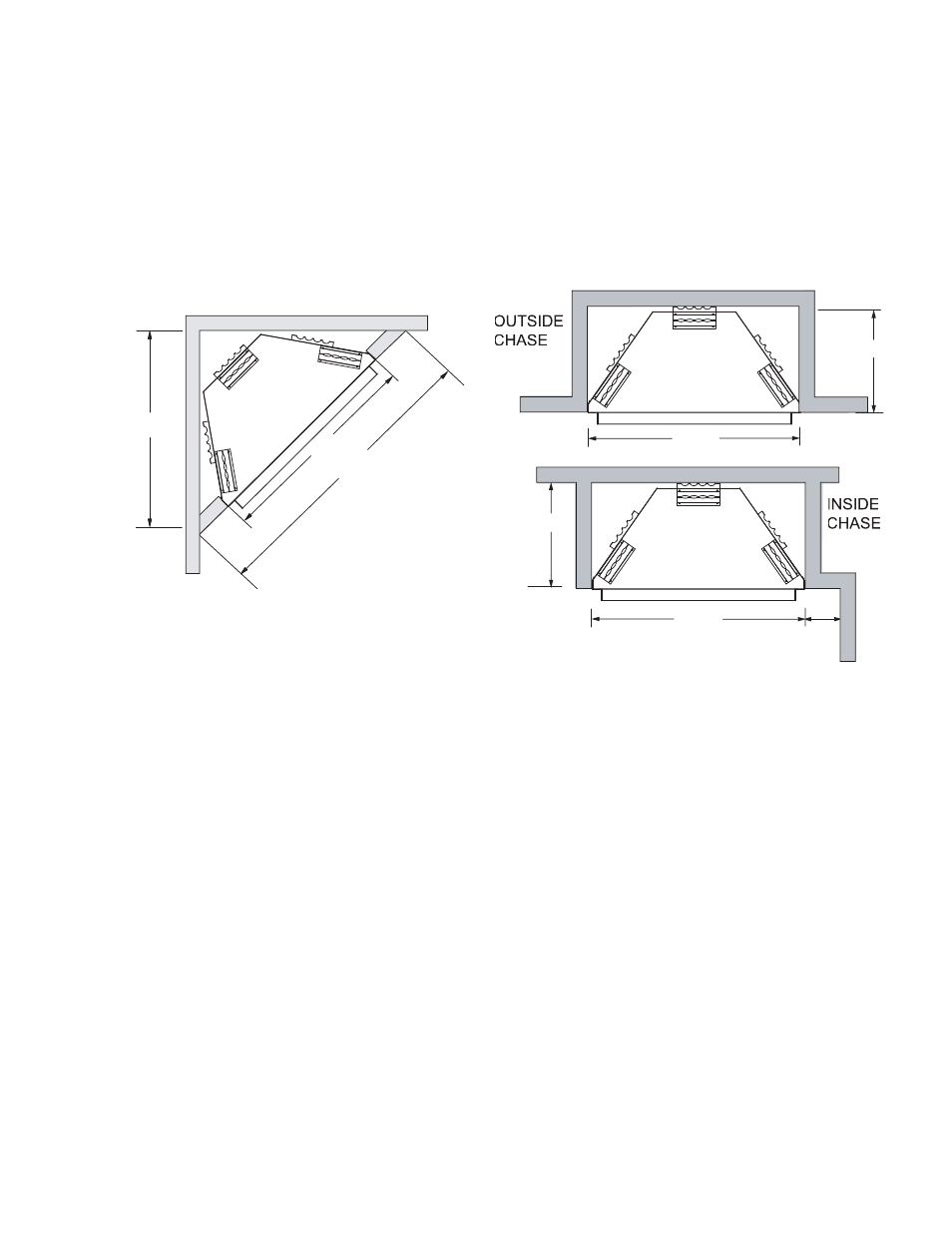

Minimum clearance to combustible construction from appliance:
sides, back, bottom and top of the unit
0 inch
recessed depth 22 inches
It is not necessary to install a hearth extension with this appliance system.
When roughing in the appliance, raise the appliance to accommodate for the thickness of the fi nished fl oor
materials, i.e. tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower
access door and the installation of many decorative fl ashing accessories.
Raise the appliance up to the height of the fi nished fl ooring to ensure control access and accessory
installations.
4.1 MINIMUM CLEARANCE TO COMBUSTIBLES
