6

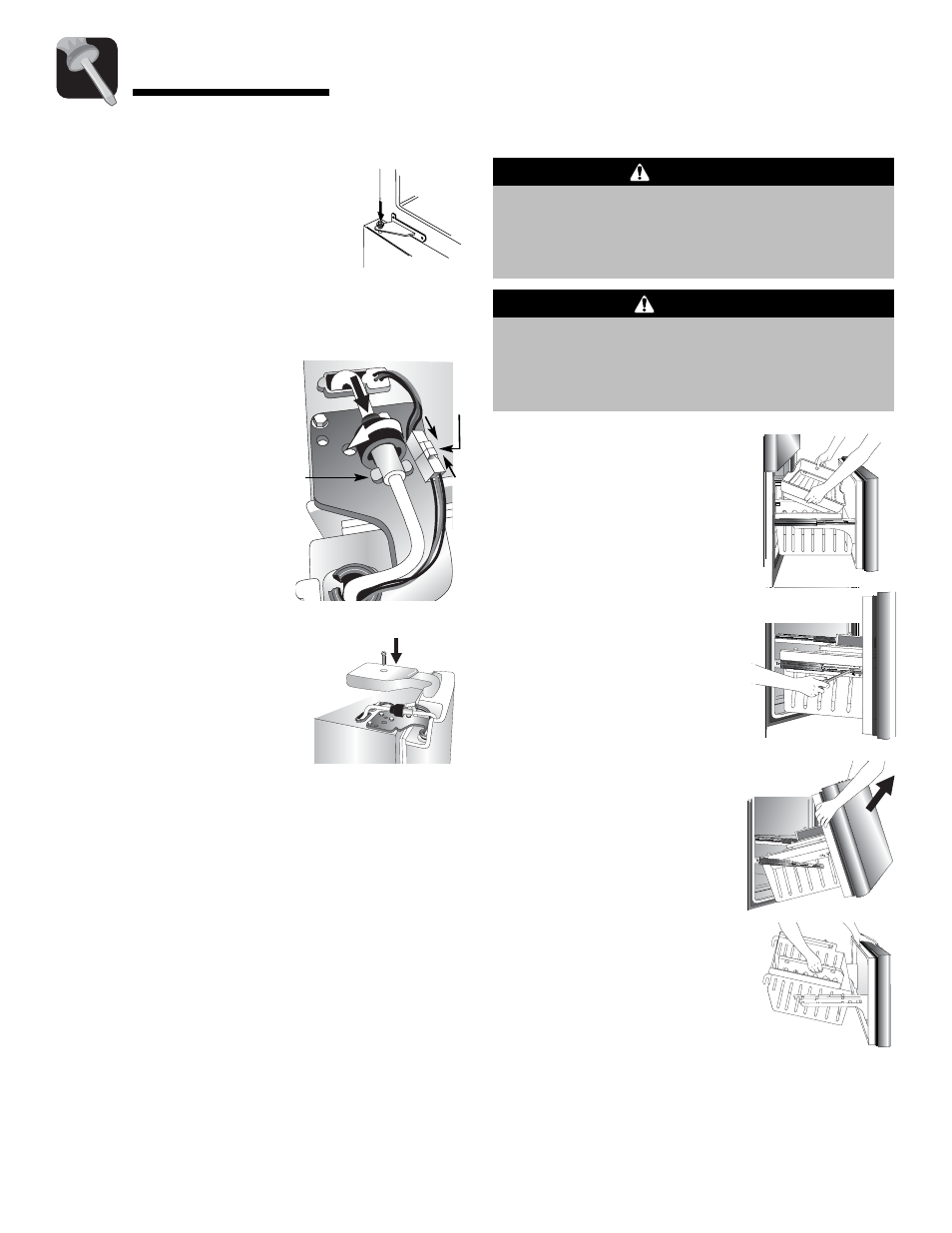

Installation
Pullout Freezer Drawer
To avoid electrical shock which can cause severe
personal injury or death, disconnect power to
refrigerator before removing doors. After replacing
doors, connect power.
WARNING
To avoid possible injury, product, or property
damage, you will need two people to perform the
following instructions. Important: Always unload
food in freezer trays before removing trays.
CAUTION
3. Remove Phillips screws from
each of the drawer slides.
Door Reinstallation
1. Install hinge assemblies:
• Install center hinge with
Phillips screws.
2. Place hinge side of refrigerator
door on center hinge pin.
• Install top hinge with 5 ⁄
16
” hex head screws.
3. While holding refrigerator door upright, tighten
down top hinge with 5 ⁄
16
” hex head driver.
4. Reconnect connector.
5. Connect the waterline
tubes firmly by pushing one
waterline inside the other.
6. Slide the black locking
collar fully forward.
7. Hold tabbed section of
waterline.
8. Rotate black locking collar
counterclockwise locking
water lines in place. A
“click” is heard ensuring
waterlines are correctly
locked in place. The “arrow”
on the tabbed section should
align with the 2 bars on the
black locking collar.
9. Ensure the connection does
not leak before installing the
upper hinge cover.
10. Replace top hinge covers.
To Remove:
1. Pull drawer open to full
extension.
2. Slide freezer drawer forward
and lift straight out.
4. Lift top of drawer front to
unhook the drawer from the
slides.
5. Move drawer slides fully
forward.
6. Lift out lower drawer assembly.
Connector
Tabs
