15

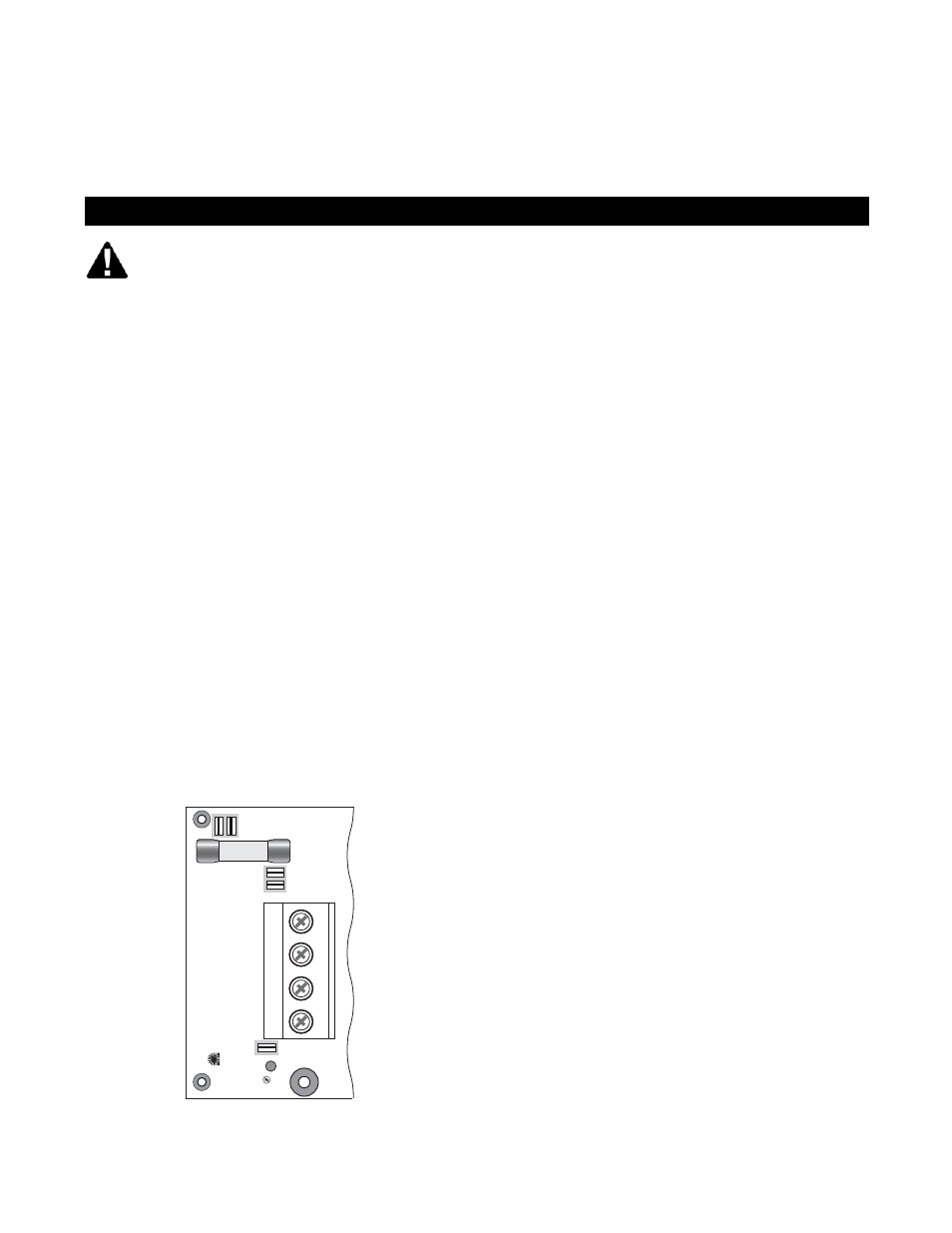

TB1
HTR2 J101
J50
J57
J25
J32
J52 J51 F6, T30A 480V
J47
1
2
3
4
W1
Balboa
BALBOA INSTRUMENTS, INC.
GS500Z
COPYRIGHT 2007
MADE IN U.S.A.
P/N 22015_B
Pb
IMPORTANT!
Remember, high voltage is still accessible in the house
breaker box even though you have turned off the spa breaker.
Keep in mind that a majority of R.C.D. tripping
problems can be attributed to incorrect wiring.
R.C.D. troubleshooting usually finds the problem.
RCD LINE-IN WIRING CHECK
UÊ œV>ÌiÊÌ iК«Аœ«iÀÊVˆÀVՈÌÊLÀi>ŽiÀÊ>˜`КМХА˜КˆМКœvv°
UÊ ,i“œÛiÊÌ iÊVœÛiÀÊvÀœ“ÊÌ iÊ œÕÃiÊLÀi>ŽiÀÊLœЭ°К iVŽ
the main service amperage rating to the breaker box.
UК Аœ“КМ iКVˆАVХˆÌÊLÀi>ŽiА]КœV>ÌiÊÌ iÊLÀœЬ˜Кœ>`Ê܈ÀiÊ>˜`Ê
the blue neutral wire.
UК Аœ“КМ iК,°°°К˜iÕÌÀ>ÊL>А]КœV>ÌiÊÌ iÊLÕiʏœ>`ʘiÕÌÀ>]Ê
and the green ground wire.
UÊ iÊÃÕÀiÊÌ iÀiÊ>АiʘœКœМ iАК>««ˆ>˜ViÃʜ˜ÊÌ iÊë>Ê
circuit. If there are, service must be re-wired to supply the
spa only.
UÊ >ŽiÊÃÕÀiÊ>ÊÌ ÀiiÊ܈ÀiÃÊi݈ÌÊÌ iÊ œÕÃiÊLÀi>ŽiÀÊLœÝÊ
via conduit, routed to the R.C.D. breaker box. The brown
should be connected to the R.C.D. line-in. The blue load
neutral connects to the neutral in.
RCD LINE-OUT WIRING CHECK FOR 230 V
DEDICATED SYSTEM
The brown wire should connect to load out, the blue wire
from neutral out. All wires will exit the box via conduit
routed to the spa control system.
Once you have found all wiring correctly installed, begin
to check for proper voltage. If Correct Wiring is Verified,
check to see if the proper RCD is installed.
Check the label in the system box near TB1 to determine UÊ
the maximum amperage draw for the system.
Be sure the R.C.D. is rated for more amperage than the
UÊ
system will draw.
For a 230 V dedicated system, a 2-pole or 4-pole R.C.D.
UÊ
with no load neutral is acceptable.
For a detailed wiring checklist, please review the previ-
UÊ
ous segment of this manual on proper R.C.D. wiring or
the R.C.D. manufacturer’s instructions.
If the wiring is correct and the R.C.D. will not reset, then
UÊ
unplug the pump and try to reset the R.C.D.
If the R.C.D. trips again, then unplug the blower and
UÊ
push the reset button. If the R.C.D. continues to trip,
then do the same procedure for the ozone generator.
If the R.C.D. stops tripping after you unplugged one
UÊ
of the spa’s components, turn off the power to the
spa then plug in each component except the one that
tripped the R.C.D.
Power up the system. If the R.C.D. no longer trips, then
UÊ
you have correctly identified the problem.
Repair or replace the component as instructed by the
UÊ
spa manufacturer.
If you have unplugged all of the spa’s components and
UÊ
the R.C.D. still doesn’t reset, then the problem is most
likely a ground fault in the heater.
Disconnect the heater, and test.
UÊ
Wiring Check for RCD and Service Disconnect
