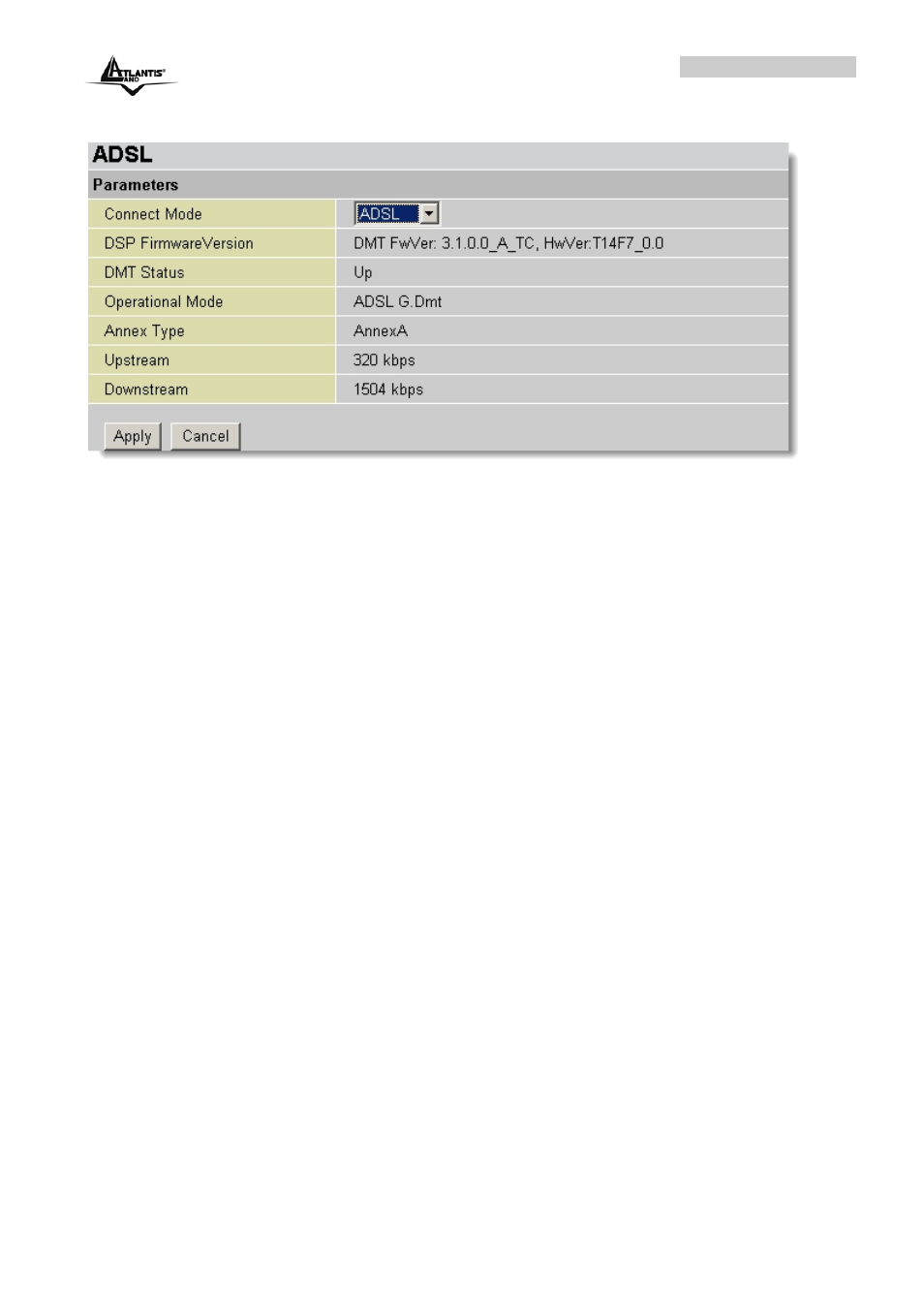

3.6.3.2.3 ADSL
• ADSL Mode: There are four modes “Annex A”,”Annex L”,”Annex M” ,”Annex J”,
that user can select for this connection.
• Modulator: There are four modes “AUTO”,”ADSL multimode”,”ADSL2”and”ADSL2+”
that user can select for this connection.
• DSP Firmware Version: DSP code version
• DMT Status: DMT Status
• Operational Mode: To show the state when user select “AUTO” on connect mode.
• Annex Type: To show the router’s type, e.g. Annex A, Annex B
• Upstream: Upstream rate
• Downstream: Downstream rate
