Atlantis Land A02-RA243-W54M_ME01 - Manual (Page 28)

WEBSHARE 243WM
22
• IP Address: A list of IP addresses of devices on your LAN (Local Area Network).
• MAC Address: MAC (Media Access Control) address for each device on your LAN.
• Interface: The interface name (on the router) that this IP Address connects to.
• Static: Static status of the ARP table entry:
• “no” for dynamically-generated ARP table entries
• “yes” for static ARP table entries added by the user

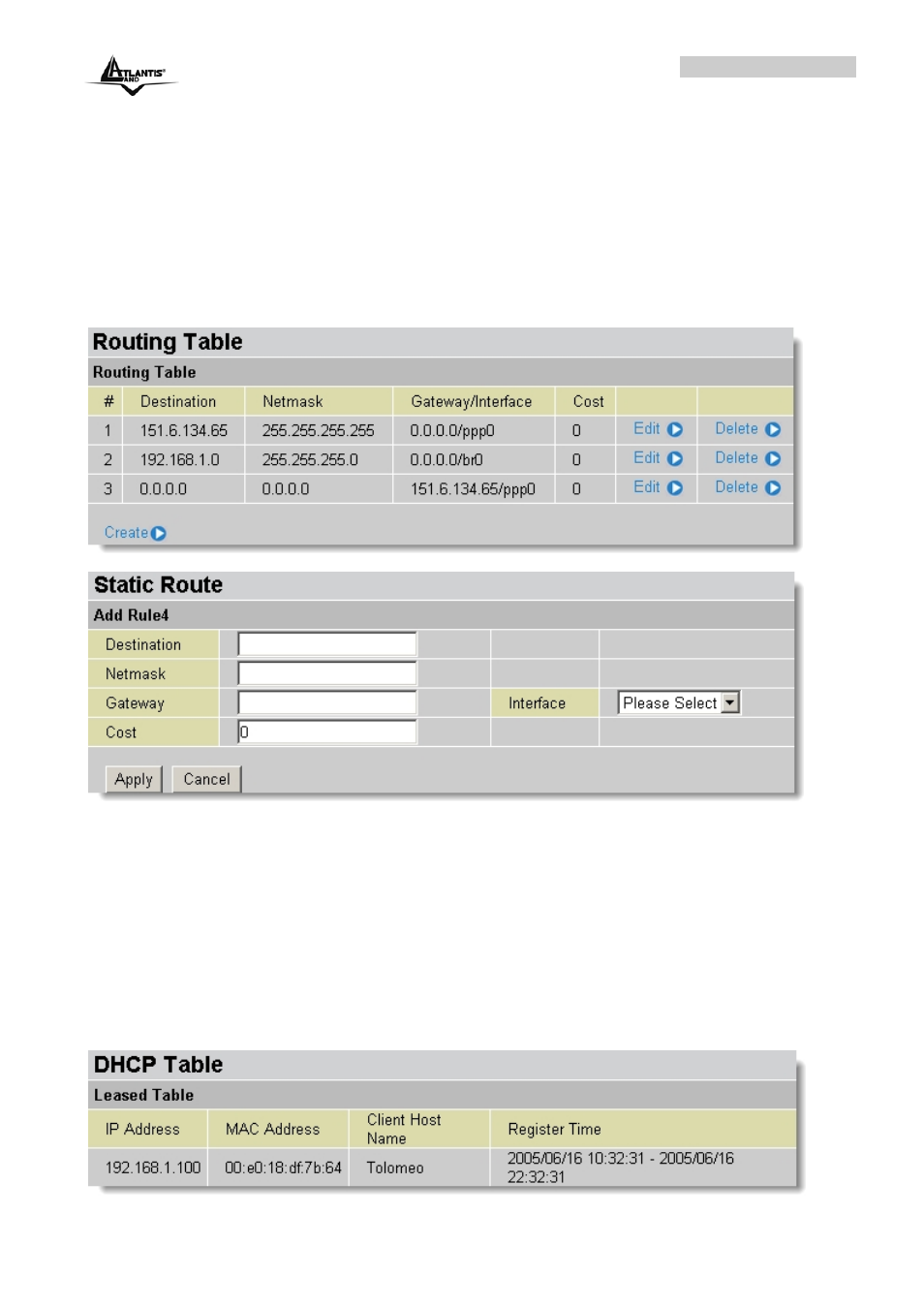

3.6.1.2 Routing Table
Display the current routing paths of A02-RA243-W54M.
• #: Item number
• Destination: IP address of the destination network.
• Netmask: The destination netmask address.
• Gateway/Interface: IP address of the gateway or existing interface that this route
uses.
• Cost: The cost of transmission for routing purposes. The number need not be precise,
but it must be between 0 and 65535.
• Interface: Select the interface through which packets are forwarded.
3.6.1.3 DHCP Table
