Bevel Seat Fittings

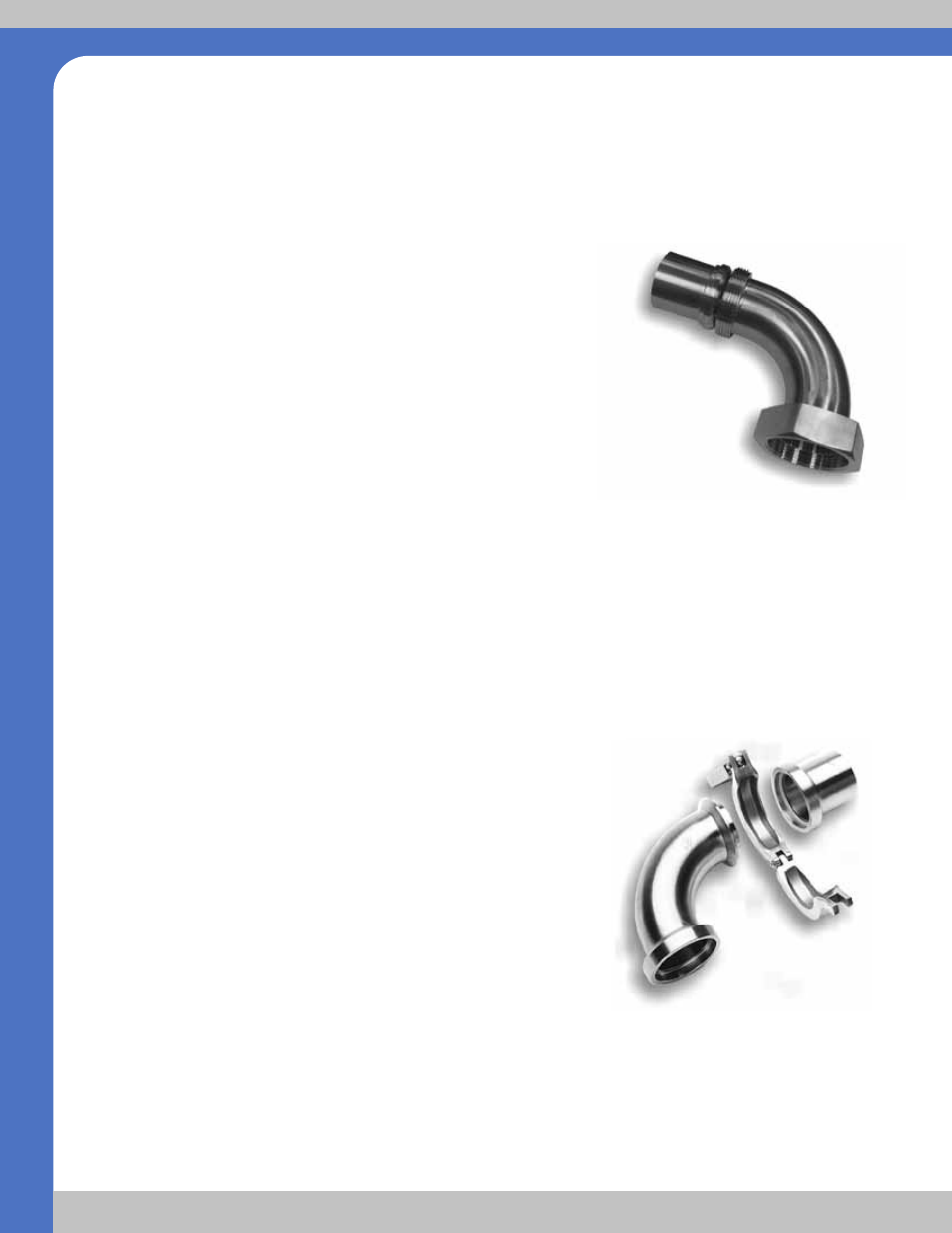

Bevel Seat connections are made up of a plain bevel ferrule mating to a threaded
bevel ferrule with a threaded hex nut. These fittings are designed and manufactured
to withstand daily disassembly, COP (clean-out-of-place), and reassembly of
process lines and equipment. A gasket can be used to ensure a
positive shutoff under higher pressures, however is not necessary
in lower pressure applications.
!
Available in 1” through 4”
! Fittings are made of T304 & T316L stainless steel.
!
Finishes are available in any standard combination.
# ID polish is 180 Grit
# OD polish is 150 Grit
! Gaskets offered in Buna as a standard.
!
Meets 3A requirements
I-Line Fittings
These are the original Cherry Burrell I-Line fittings and are made up of interlocking flat face
ferrules, a flat gasket and a clamp. This interlocking, metal-to-metal design eliminates over
compression by the clamp not allowing the gasket to be extruded into the product zone.
I-Line fittings can withstand higher vibrations, temperatures and
pressures than other available connections available.
! Available in 1” through 8”
!
Fittings are made of T304 & T316L stainless steel.
! Finishes are available in any standard combination.
# ID polish is 180 Grit
# OD polish is 150 Grit
!
Electropolished I-Line Fittings are available.
® !
Gaskets are available in Buna, EPDM, Teflon , FKM, and
Silicone as a standard.
!
Meets 3A requirements
WCB-Flow Products fittings and valves made of T316/T316L stainless steel are permanently
marked with original heat numbers allowing full traceability back to the original stainless steel supplier.
