Specifications:
Continuous Cooker / Dryer
MODEL HEATING SURFACE POWER
LENGTH (A)
WIDTH (B)
HEIGHT (C)
SHIPPING WEIGHT
M
2
/ FT
2
HP
IN / MM
FT & IN / MM
FT & IN / MM
LBS / KG
AE-20
30 / 323
40
288 / 7315
72 / 1829
112.5 / 2858
30,000 / 13,607
AE-60
60 / 645
40
288 / 7315
72 / 1829
100 / 2540
45,000 / 20,412
AE-100
100 / 1076
60
375 / 9525
77 / 1956
100 / 2540
66,000 / 29,940
AE-130
130 / 1400
60
281 / 7163
95 / 2413
125 / 3195
85,800 / 38,918
AE 165
165 / 1776
75
357 / 9068
95 / 2413
125 / 3195
95,100 / 43,137
AE-200
200 / 2152
100
400 / 10160
95 / 2413
125 / 3195
117,000 / 53,070
AE-260
260 / 2799
125
433.5 / 11011
100 / 2540
126 / 3200
99,500 / 45,132
AE-320
320 / 3444
125
533 / 13538
100 / 2540
126 / 3200
122,500 / 55,565
AE-400
400 / 4305
150
439 / 11150
159 / 4020
142 / 3600
153,883 / 69,800
AE-440
440 / 4736
200
483 / 12250
159 / 4020
142 / 3600
165,346 / 75,000
Larger sizes are availble upon request.
Dimensions and weights are for reference only and may vary according to materials of construction and final design.
Due to ongoing improvement, specifications are subject to change.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
ANGULAR: ± 1°
DECIMAL: ± .005"
FRACTIONAL: ± 1/32"
ANCO-EAGLIN INC.
120 N. CHIMNEY ROCK RD.
GREENSBORO, NC 27409
®
REVISIONS
NO.
DATE
DESCRIPTION
APP. BY
REV. BY
NOTES
THIS DRAWING IS THE PROPERTY
OF ANCO-EAGLIN, INC.
UTILIZING, COPYING, OR HANDING
IT OVER TO A THIRD PERSON IS
NOT ALLOWED WITHOUT THE
EXPRESS CONSENT OF ANCO-
EAGLIN, INC.
DO NOT SCALE THIS DRAWING
USE DIMENSIONS ONLY
APPROVED BY: CDE
DWG. NUMBER
DRAWN BY: CBB
DATE: 10-17-08
SCALE: 1 : 24
ANCO AE-260 COOKER
ANCO-EAGLIN, INC.
GREENSBORO, NORTH CAROLINA
REV.
E-08-1017-0001

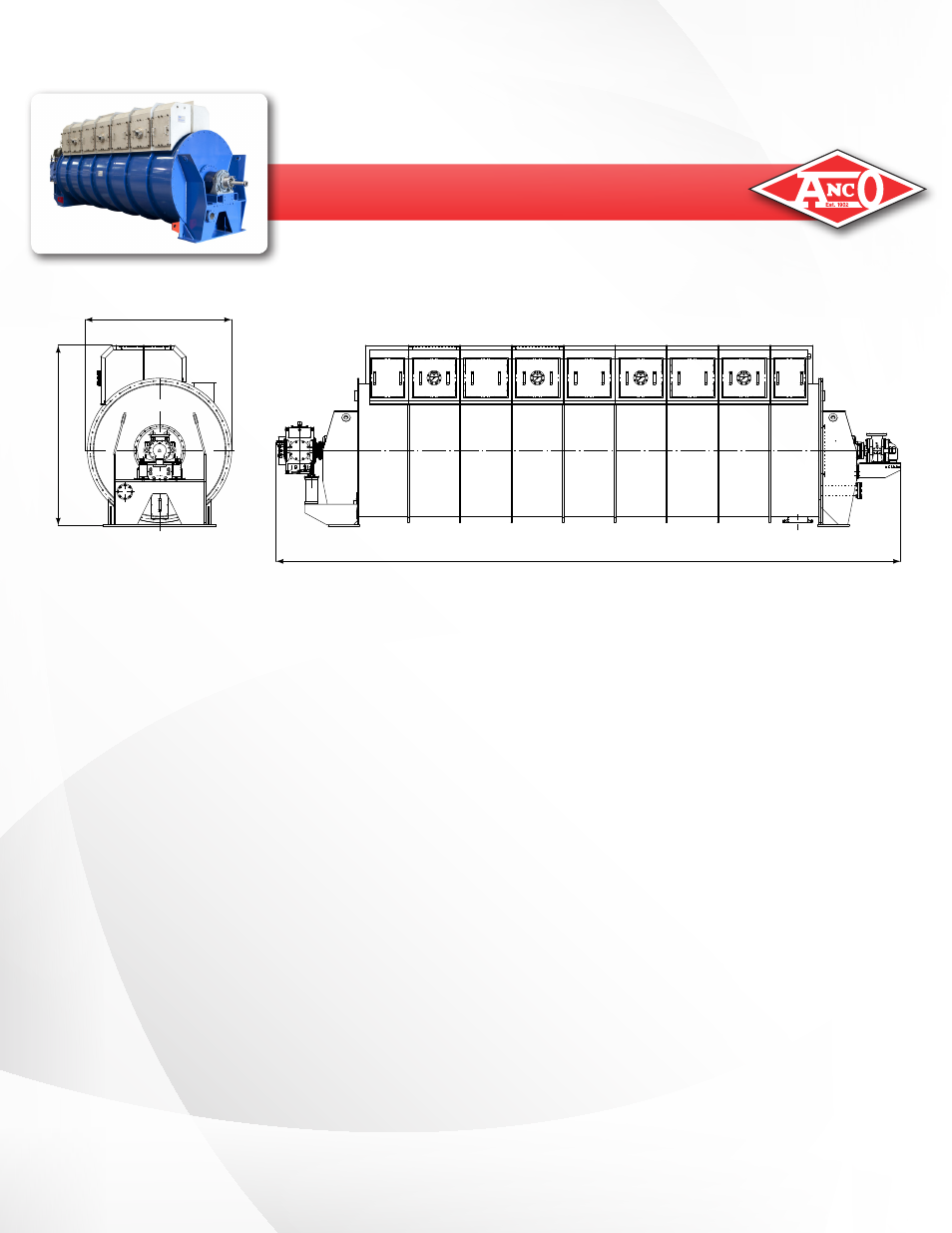

GENERAL ARRANGEMENT DRAWING
ELEVATION
OPPOSITE DRIVE END
B
C
A
