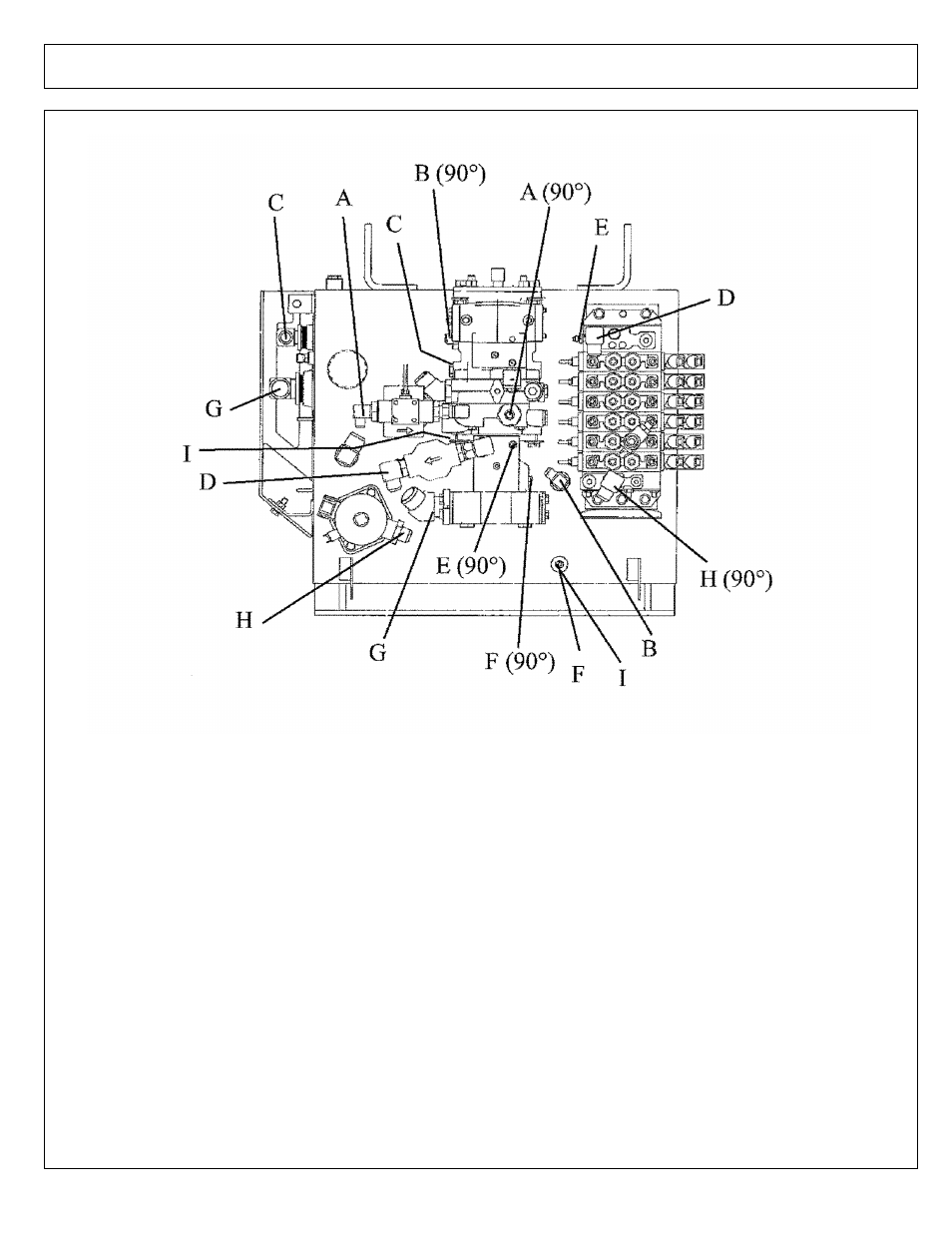

HYD KIT - HOSE ROUTING
ITEM PART NO. QTY. DESCRIPTION
A 02981427 1 HOSE, #8-8FJX-8FJX90`-24"LG./RED TIE (CHARGE FILTER TO PUMP)
B 02981428 1 HOSE, #8-8FJX-8FJX90`-21" LG./BLU TIE (CASE DRAIN TO TANK)
C 02981429 1 HOSE, #12-12FJX-12FJX-23"LG.(PUMP TO SUCTION FILTER)
D 02981430 1 HOSE, #12-12FJX-12FJX-31"LG./RED TIE (PRESSURE FILTER TO SUPPLY)
E 02981431 1 HOSE, #4-4FJX-4FJX90`-35"LG./RED TIE (PUMP LOAD SENSE TO VALVE PX)
F 02981432 1 HOSE, #4-4FJX-4FJX90`-20"LG./BLU TIE (PUMP REGULATOR TO TANK)
G 02981433 1 HOSE, #20-20FJX-20FJX-24"LG.(PUMP TO SUCTION FILTER)
H 02981462 1 HOSE, #12-12FJX-12FJX90`-20"LG./ORG TIE (VALVE RETURN TO FILTER)
I 02823600 1 HOSE, #4-4FJX-4FJX-28" LG (AIR BLEED PUMP TO TANK)
NOTE:HOSES ARE NOT SHOWN IN DRAWING ABOVE, THIS IS FOR CLARITY. THE HOSE ROUTING IS FOR THE HOSES WHICH CONNECT FROM
ONE POINT TO THE OTHER. USE THE INSTRUCTIONS AND HOSE DESCRIPTION LISTED TO FOLLOW HOSE ROUTING.
©2011 Alamo Group Inc. Parts Section -144
Maverick Boom 24 and 30 FT (08-06) Rev 06-11
