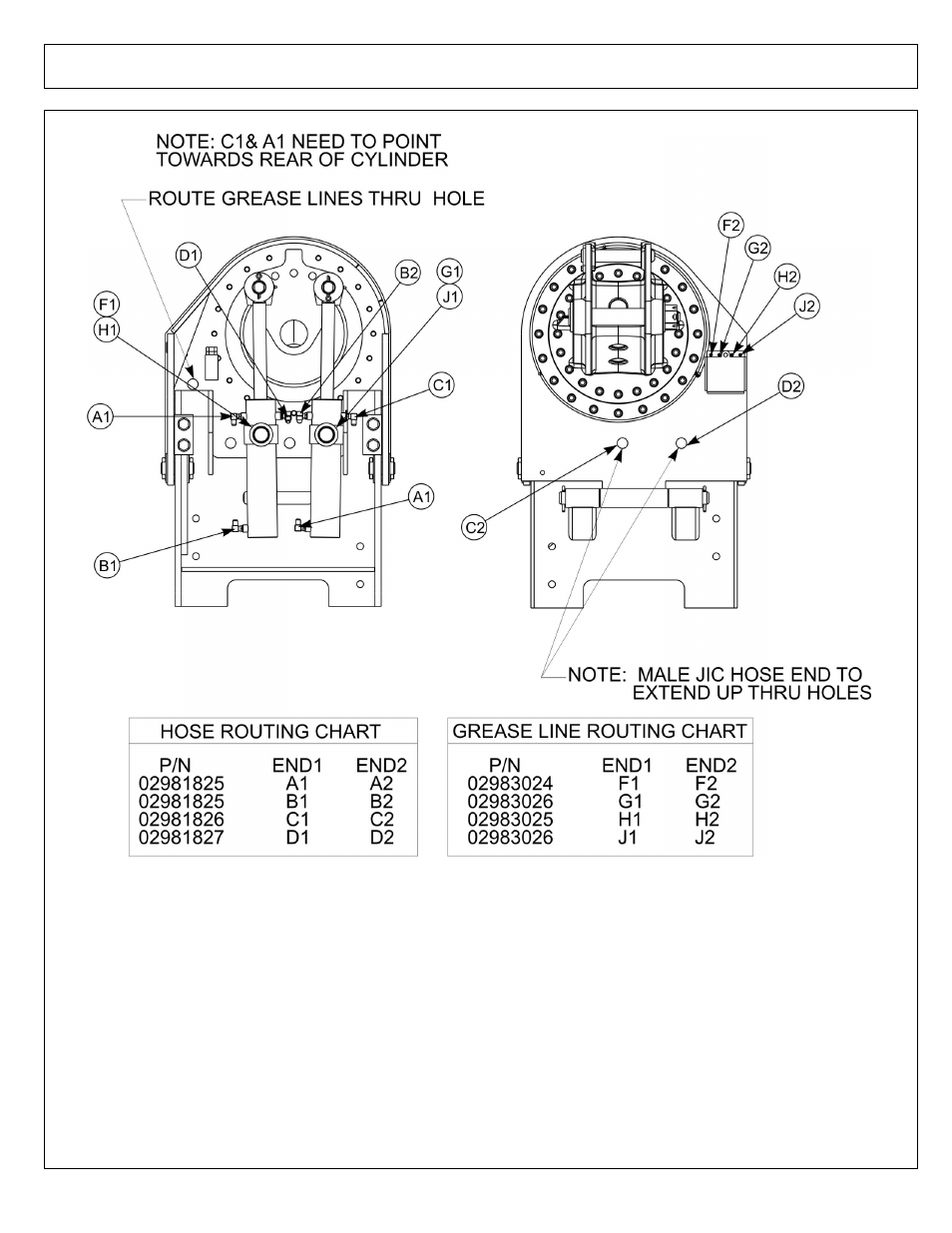

HYD HOSE ROUTING - SWING CYL - 24-30 FT BOOM
ITEM
PART NO. QTY.
DESCRIPTION
A1
02981825
1
HOSE #6-6FJX-6FJX-28LG
B1
02981825
1
HOSE #6-6FJX-6FJX-28LG
C1
02981826
1
HOSE #6-6FJX-6MJ-22LG
C2
02981827
1
HOSE #6-6FJX-6MJ-16LG
F1
02983024
1
LINE,GREASE,MANIFOLD,SHORT
G1
02983026
1
LINE,GREASE,MANIFOLD,LONG
H1
02983025
1
LINE,GREASE,MANIFOLD,MED
J1
02983026
1
LINE,GREASE,MANIFOLD,LONG
©2011 Alamo Group Inc.
Parts Section -143
Maverick Boom 24 and 30 FT (08-06) Rev 06-11
