Alamo Maverick 02981992P - Manual (Page 131)

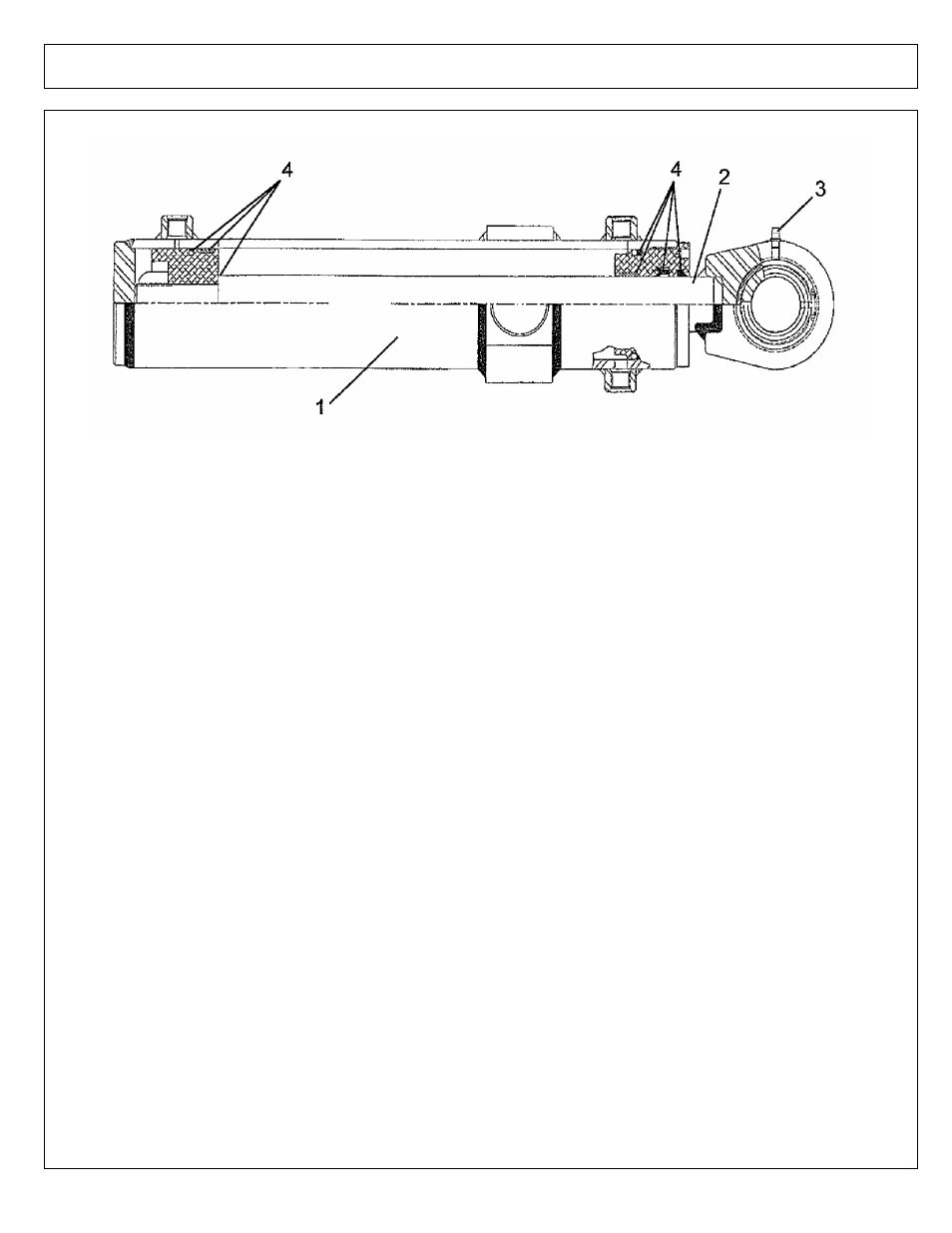

HYD CYL ASY - SWING W/ SPHERICAL ROD END (24/30 FT) - PN 02981275A
ITEM PART NO. QTY. DESCRIPTION
02981275A 1 HYD CYL ASY, SWING CYL (W/ SPHERICAL ROD END)
1 02981921 1 BARREL WELDMENT
2 02981922A 1 ROD ASY (W/ SPHERICAL ROD END)
3 00752670 1 GREASE FITTING
4 02982066 1 SEAL KIT, 02981275
NOTE:THE SWING CYLINDER THERE ARE TWO TYPES OF ROD ENDS, THE WELDED ON TUBE AND THE WELDED ON SPHERICAL END. CHECK
WHICH YOU HAVE BEFORE ORDERING CYLINDER ROD (ITEM 2). QTY SHOWN IS FOR ONE CYLINDER, THERE ARE TWO SWING CYLINDERS PER
MAVERICK BOOM.
©2011 Alamo Group Inc. Parts Section -128
Maverick Boom 24 and 30 FT (08-06) Rev 06-11
