Installation
17 800536
Do not modify the plug provided with the washer – if
it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the
qualified electrician should correct the problem.

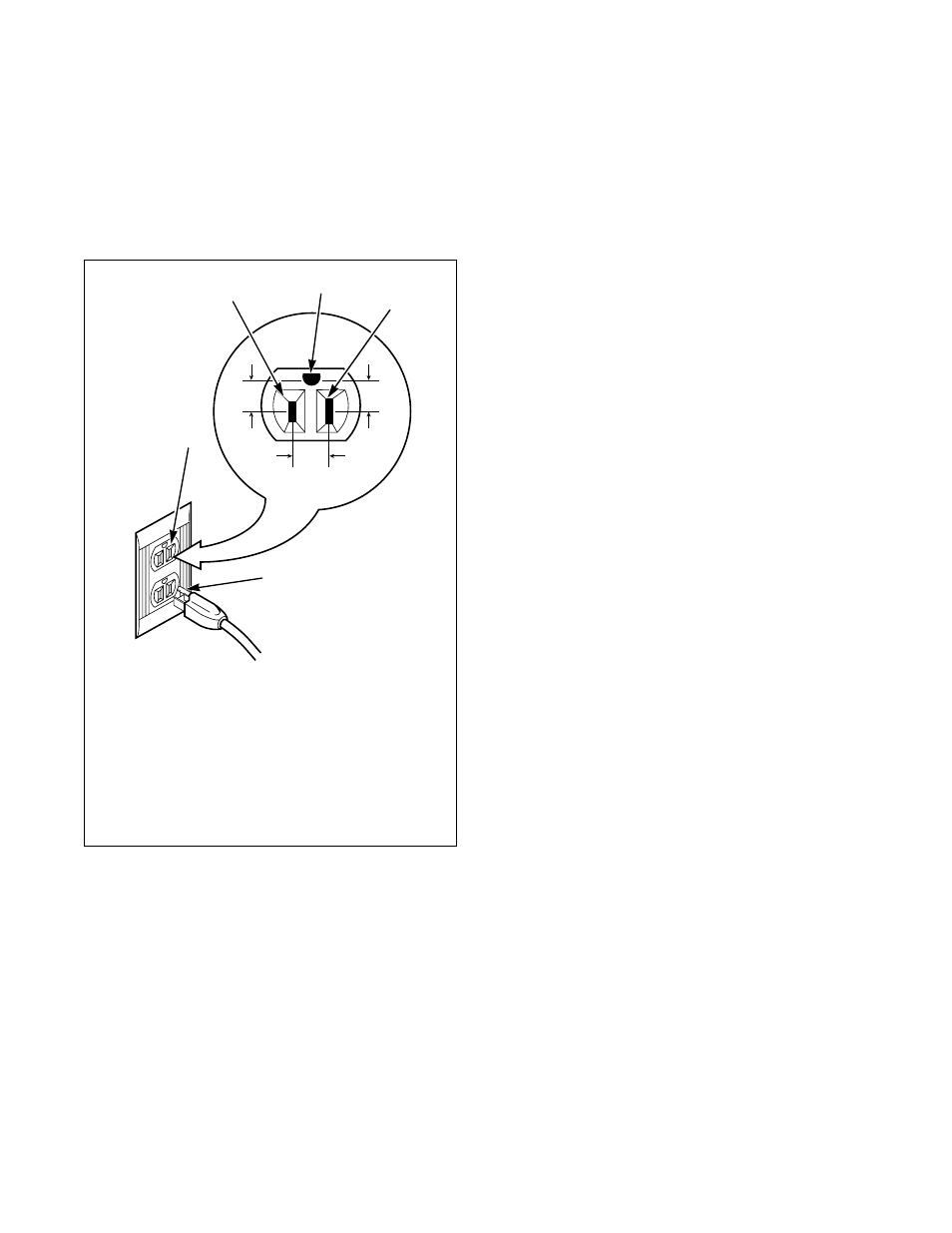

Figure 13
D799I
1 L1
2 Ground
3 Neutral Side
4 Round Grounding Prong
5 Neutral
1
2
3
4
5
STANDARD 120 VOLT, 60 HERTZ,
3-WIRE EFFECTIVELY GROUNDED CIRCUIT
120 ± 12
V.A.C.
120 ± 12
V.A.C.
0
V.A.C.
