Installation
800536 12
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp or by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-3/8 inch (3.5 cm) outside
diameter drain hose.

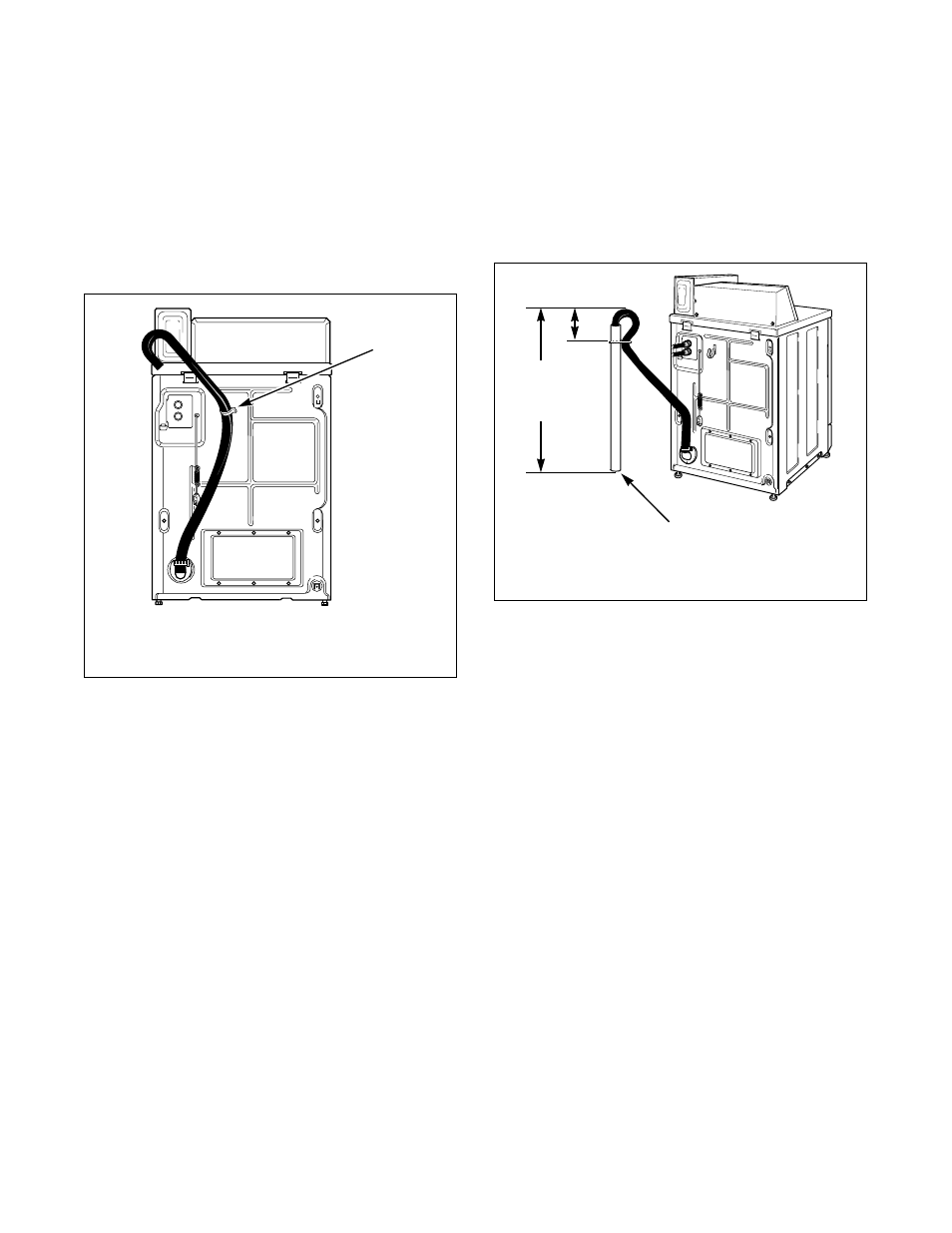

Figure 5
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.
Figure 6
H139I
1 Retainer Clamp
H139I
1
H138I
1 Standpipe 2" (5.08 cm) or 1-1/2" (4 cm)
H138I
1
RECOMMENDED
HEIGHT
24" TO 36"
(61 TO 91.44 cm)
