15

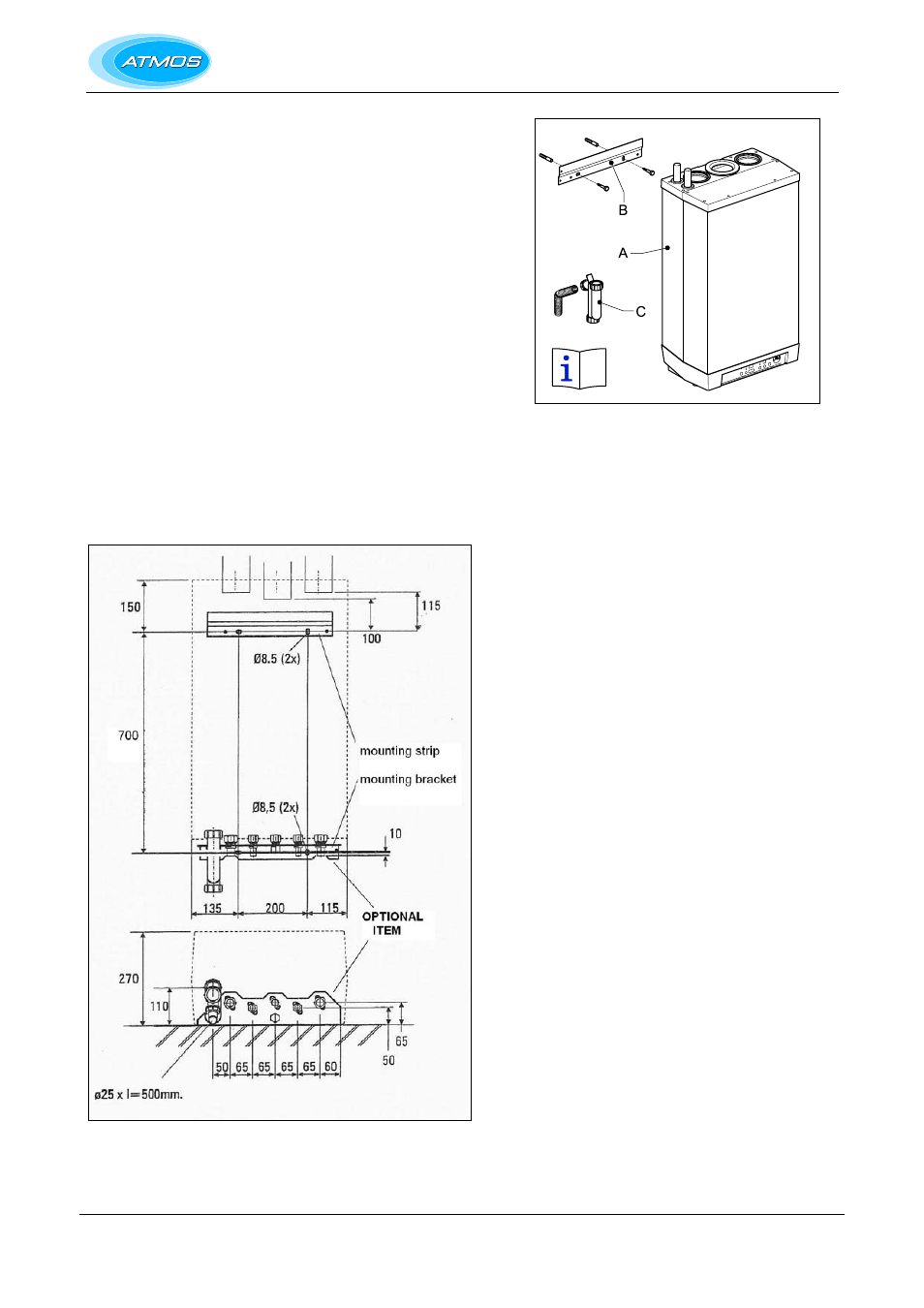

4.2 Unpacking the appliance
1. Unpack the appliance.
2. Check the content of the packaging. This consists of:-
• Appliance (A)
• Mounting strip (B)
• Condensate trap (C)
• Installation Instructions
• User Operating Instructions
• Warranty card
3. Valve set (supplied separately with boiler) comprising 2 x 22mm
isolation valves, 1 x 15mm isolation valve with blue lever (for cold
water), 1 x gas valve.
4. Check the appliance for any damage: report damage to the Supplier
immediately.
CAUTION: This appliance should be lifted and handled by 2 people.
(Weight: 39 kg)
4.3 Additional dimensions
The diagram shown below gives additional dimensions primarily for the
mounting arrangement using the OPTIONAL mounting bracket.
Note: The centre line of the hexagonal notch in the mounting bracket is
also the centre line of the flue hole.
