100 Chapter 5

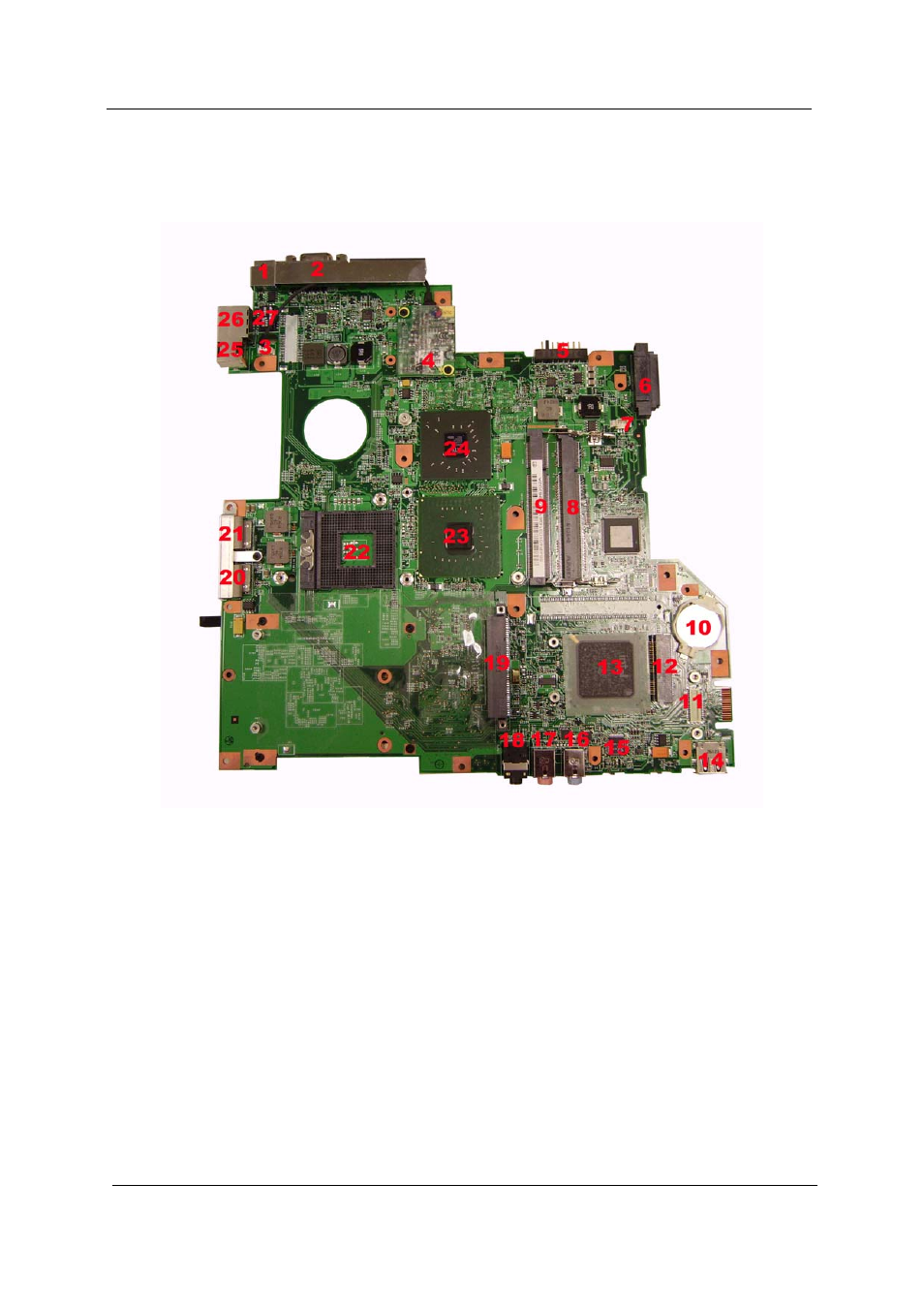

Bottom View
NOTE: This is engineering sample. The image above may not be exactly the same as the real main board you
get.
1 DCIN1 DC-in jack 14 USB3 USB port
2 CRT1 External display port 15 U67 Audio codec (Reltek ALC833)
3 N/A Modem cable connector 16 LIN1 Line-in jack
4 MDC1 Modem board connector 17 MIC2 Microphone jack
5 BAT1 Battery connector 18 LOUT1 Headphone/speaker/line-out jack
6 CDROM1 ODD module connector 19 HDD1 HDD module connector
7 FAN1 System fan connector 20-
21 USB1 USB ports
8 DM2 DIMM 2 socket 22 U58 CPU socket
9 DM1 DIMM 1 socket 23 U56 North Bridge
10 RTC1 RTC battery 24 U53 VGA controller
11 CN2 Card reader board connector 25 TRING1 Modem jack
12 MINIC1 Wireless LAN card slot 26 RJ1 LAN jack
13 U62 South bridge (Intel ICH7M)
