Installing the Washer
685980 8
Step 3: Connect Drain Hose to
Drain Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp.
Find the instructions, on the following pages, that are
appropriate for your type of drain receptacle
(standpipe, sink, wall, or laundry tub). Follow these
instructions to properly install the drain hose.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 inch (32 cm) outside
diameter drain hose.
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.

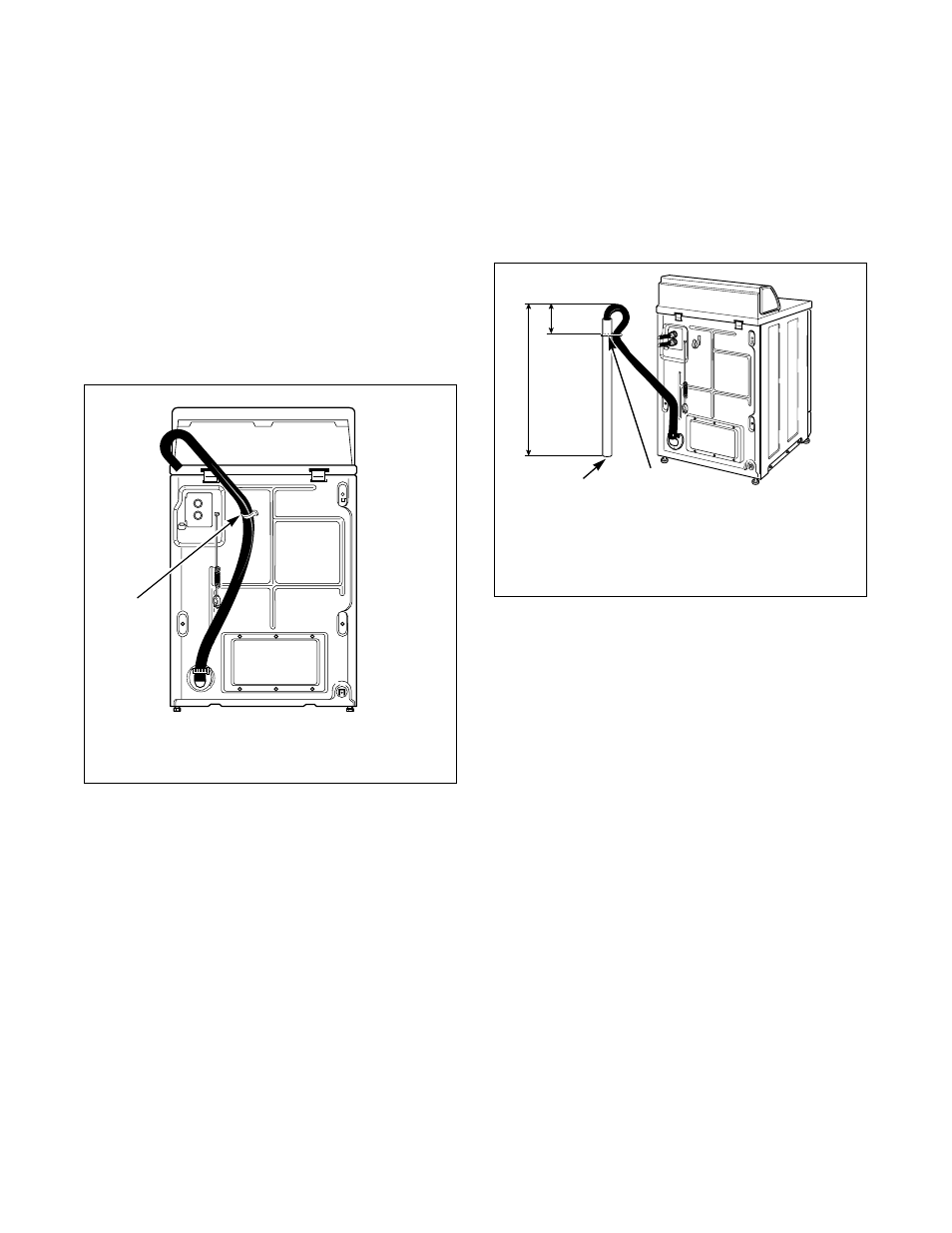

H329I
1 Retainer Clamp
H329I
1
H330I
1 24" to 36" (91.44 cm Recommended Height)
2 Standpipe 2" (5.08 cm) or 1-1/2" (4 cm)
3 Beaded Tie-Down Strap
1
2
3
