Appendix E Mounting Instructions 173
To mount the PPC-150 into a panel:
1. Remove the front panel. There are ten holes located along the four
sides of the panel PC.
2. Insert the screws from the front side into the holes and tighten them
with the nuts provided. (See Fig. E-2)
3. Put the front panel back and make sure it stable.
Note: The panel thickness should not exceed 10 mm.

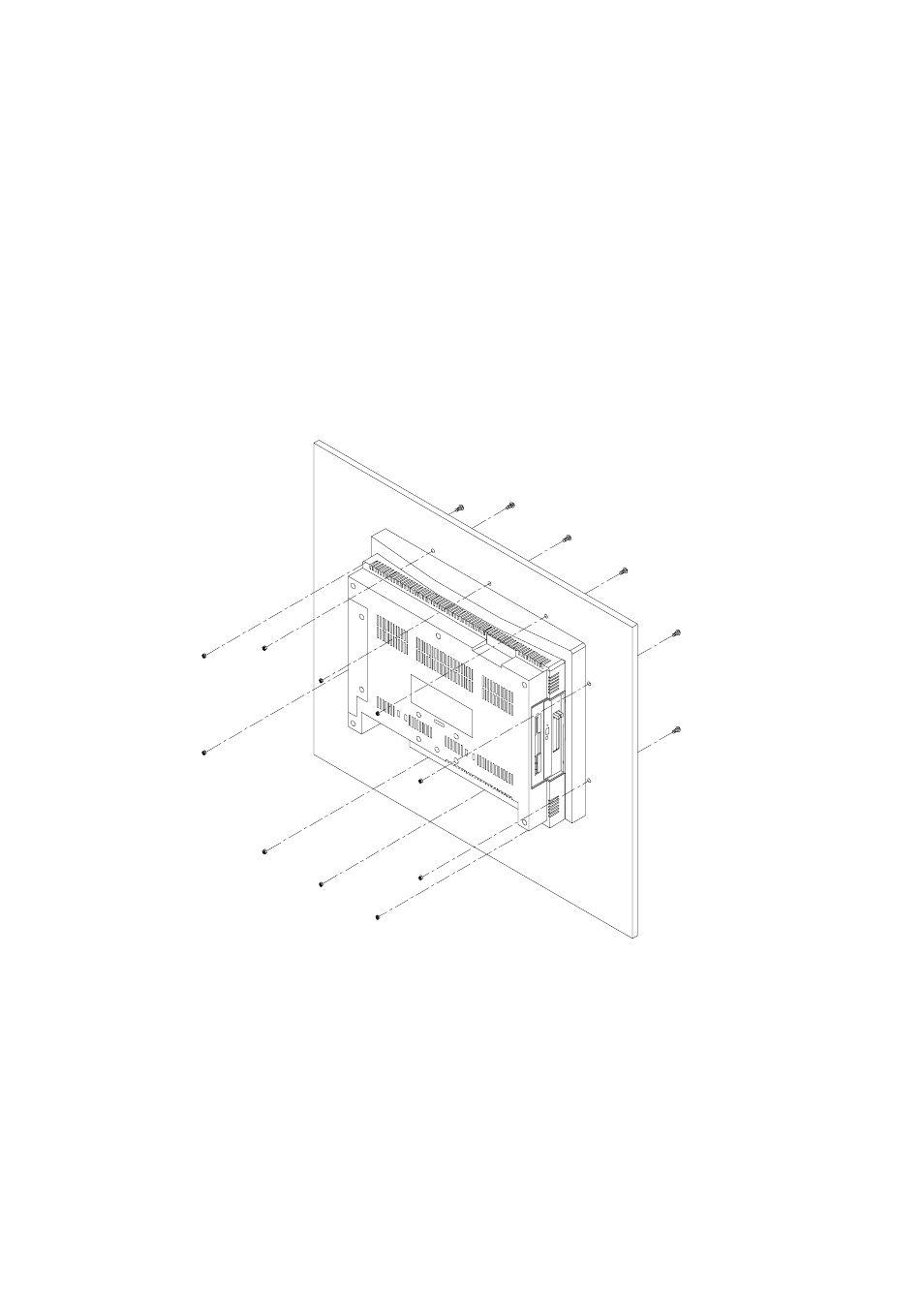

Figure E-2: Panel mounting
