6
IMPORTANT: Make sure the tray is turned so that the
locking notch is at the front as shown in figure 8.
11. Assemble the tongue to the tray using two 3/8" x 1"
hex bolts, two 3/8" x 1-1/4" hex bolts, four 1/4" long
spacers, and four 3/8" nylock nuts as shown in figure
8.
Tighten.
12. Assemble two 3/8" x 1-1/4" hex bolts, four 1/4" long
spacers and two 3/8" nylock nuts to the holes on the
other side of the slot in the tray.
Tighten. See figure 8.

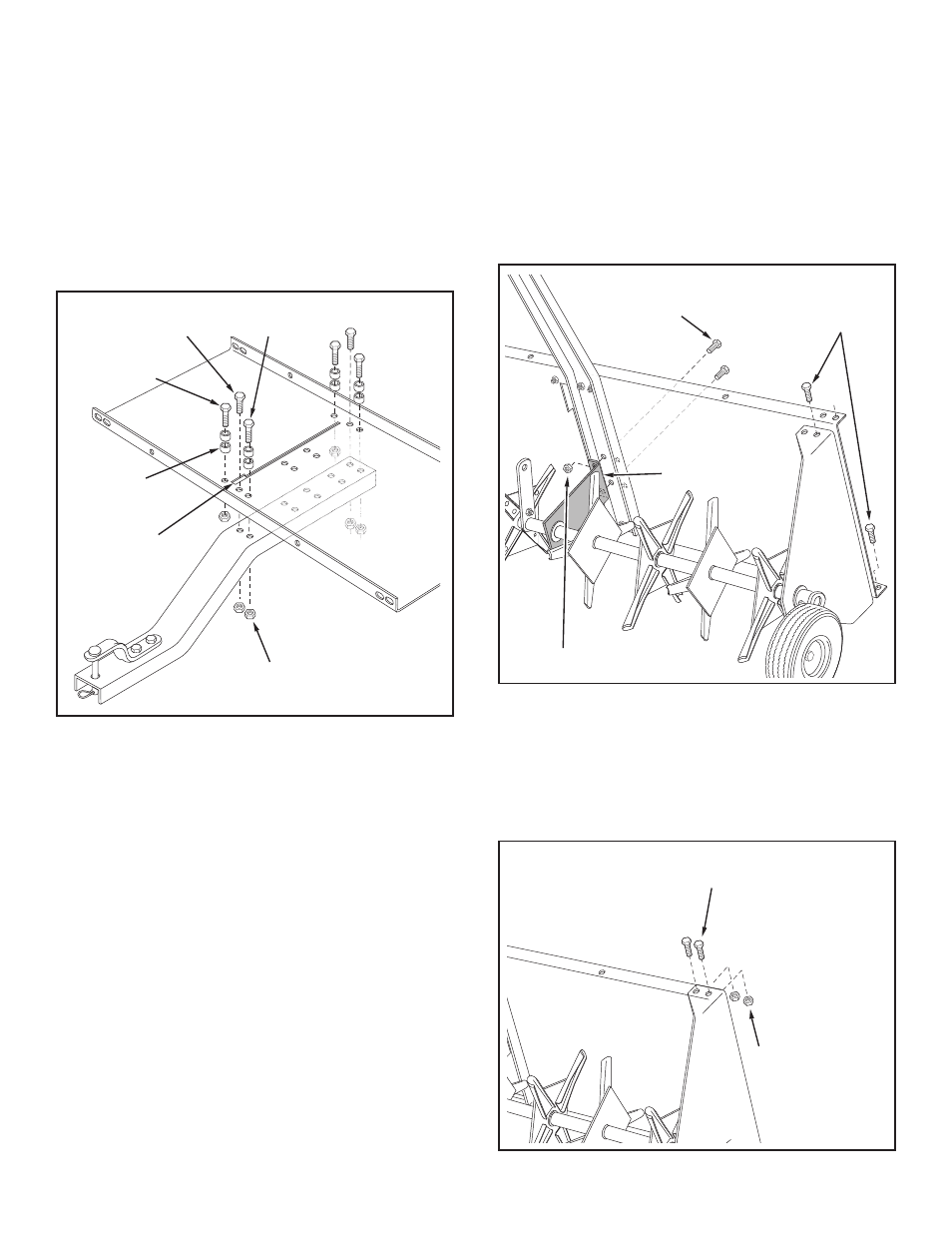

FIGURE 10
FIGURE 8
FIGURE 9
15. Fasten the end plates to the corners of the tray using
eight 5/16" x 3/4" hex bolts and 5/16" nylock nuts. Do
not tighten till step 18.
5/16" x 3/4"
HEX BOLT
(Temporary)
3/8" x 1"
HEX BOLT
MIDDLE
BRACE
3/8" NYLOCK NUT
5/16" x 3/4"
HEX BOLT
5/16" NYLOCK NUT
3/8" x 1"
HEX BOLT 3/8" x 1-1/4"
HEX BOLT
1/4" LONG
SPACER
3/8" NYLOCK NUT
3/8" x 1-1/4"
HEX BOLT
LOCKING
NOTCH
13. Place the tray between the end plates. Temporarily
insert one 5/16" x 3/4" hex bolt into each back
corner and one of the front corners of the tray to
hold end plates together at three of the four corners.
14. Rotate the middle brace up against the tongue, aligning
it on the side of the tongue that is next to the slot in the
tray. Fasten the brace to the tongue using two 3/8" x
1" hex bolts and 3/8" nylock nuts.
Do not tighten till
step 18.
