2-15 ASUS RS100-E5-PI2

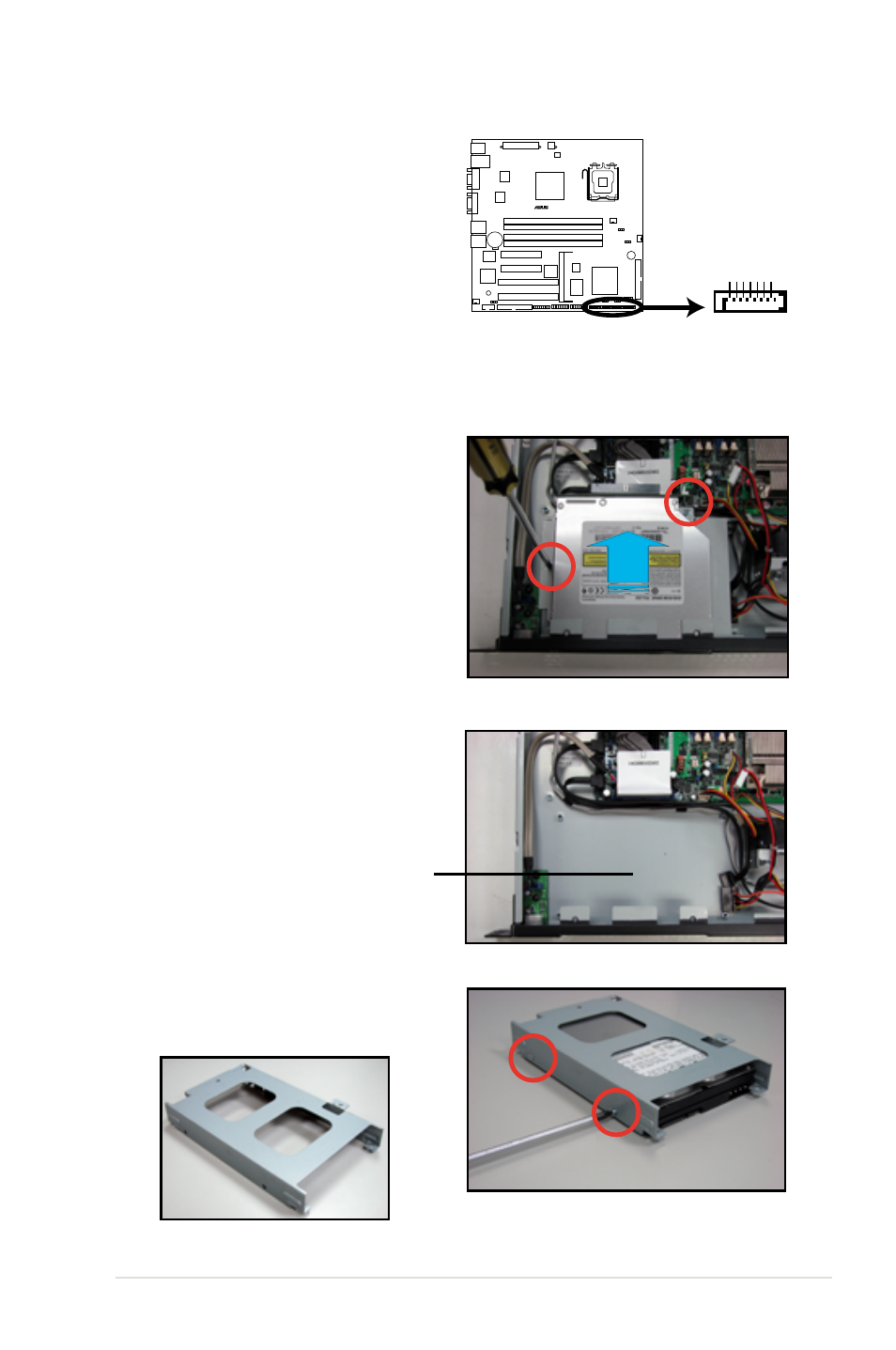

5. Connect the other end of the
Serial ATA signal connector to
the onboard SATA connector
labeled SATA1. Refer to illustration
below for the location of SATA1
connector.
P5BV-M/RS100-E5 SATA1 Connector
®
P5BV-M/RS100-E5 SATA1
G
ND
RS
AT
A_
TX
P1
RS
AT
A_
TX
N1
G
ND
RS
AT
A_
RX
P1
RS
AT
A_
RX
N1
G
ND
To install secondary Serial ATA drive:
1. If you have an ODD installed,
remove the ODD bay first before
you install a secondary SATA disk
drive.
To remove, disconnect the ODD
cable and power cable then use
a screwdriver to remove all two
screws.
2. Locate the Serial ATA drive plate
under the optical disk drive (ODD)
bay.
SATA drive plate
3. Secure the hard disk drive brackets
to the HDD with four screws.
HDD bracket
